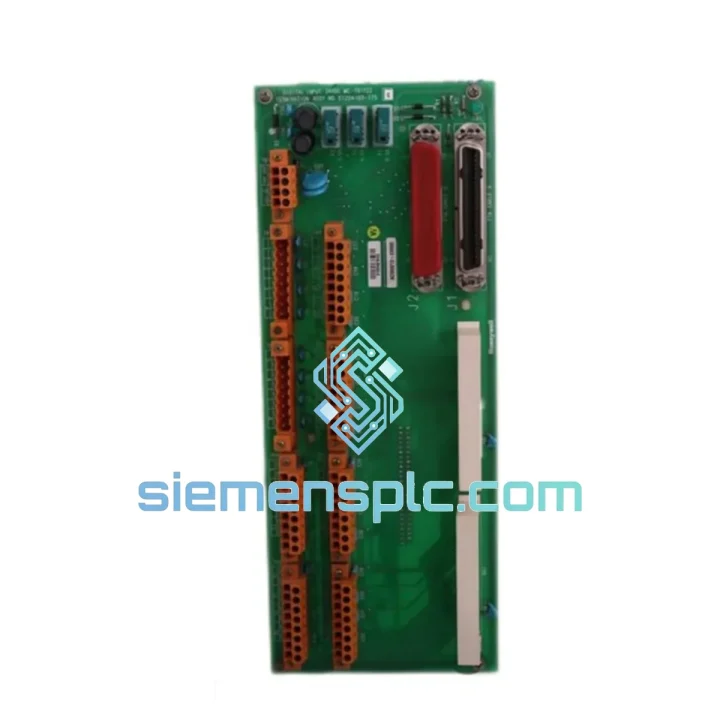

Honeywell MU-TDID12 51304441-125 DCS Digital Input Module – Experion PKS

Honeywell MU-TDID12 (51304441-125): High-Density Digital Input Termination Module for Experion PKS Distributed Control Architecture

In process-critical environments — refinery fractionation units, combined-cycle power plants, offshore platform control rooms — the integrity of discrete field signal acquisition is not a secondary concern. It is the foundation upon which every safety interlock, equipment protection loop, and operator alarm is built. The Honeywell MU-TDID12, carrying alternate part number 51304441-125, is a digital input termination module engineered specifically for the Experion PKS (Process Knowledge System) platform. Its function within the control loop is precise: to receive, condition, and relay discrete ON/OFF signals from field devices — limit switches, solenoid feedback contacts, motor run confirmations, valve position indicators — into the C300 Controller’s I/O subsystem with deterministic latency and verifiable signal fidelity.

Unlike general-purpose I/O termination assemblies, the MU-TDID12 is architected around the Experion PKS I/O Link bus protocol. Each channel’s signal path is electrically isolated from the backplane logic, and the module’s termination layout is designed to accept standard field wiring without intermediate marshalling panels in many configurations. This reduces cabinet footprint, shortens field cable runs, and eliminates one layer of potential connection failure in the signal chain. For maintenance engineers managing aging DCS infrastructure, the MU-TDID12’s drop-in form factor within the IOTA (I/O Termination Assembly) rack means replacement can be executed without re-engineering the surrounding wiring infrastructure.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Electrical parameters including channel count, input voltage range, and current draw should be cross-referenced against the official Honeywell MU-TDID12 product datasheet (Doc. No. EP-DS-MU-TDID12) prior to installation commissioning.

Hardware Logical Analysis

The MU-TDID12’s hardware design reflects Honeywell’s engineering philosophy for process-critical I/O: minimize failure propagation, maximize diagnostic transparency, and maintain signal integrity under adverse electrical conditions.

Optical Isolation Architecture: Each digital input channel employs a dedicated optocoupler stage between the field terminal and the backplane logic. This galvanic barrier prevents ground loop currents — common in large industrial facilities where field devices may reference different earth potentials — from corrupting the logic-level signal or damaging the module’s internal circuitry. The isolation barrier is rated to withstand transient voltages consistent with IEC 61000-4-5 surge immunity requirements, providing protection against inductive switching transients from solenoid valves and motor contactors in the same cabinet.

Signal Conditioning and Debounce Logic: Raw field contacts exhibit mechanical bounce — a single physical closure can generate dozens of spurious transitions within the first 5–20 milliseconds. The MU-TDID12 incorporates hardware-level debounce filtering on each input channel, ensuring that only stable, settled signal states are presented to the I/O Link bus. This is particularly important for high-speed interlock applications where false transitions could trigger unnecessary safety shutdowns.

Backplane Bus Interface: Communication with the C300 Controller occurs via the Experion I/O Link, a deterministic serial bus that guarantees bounded scan cycle times. The MU-TDID12’s bus interface logic handles protocol framing, error detection (CRC-based), and automatic retry on transient communication faults — all transparent to the controller application layer. This determinism is essential for SIL-rated interlock loops where input scan latency must be quantifiable and bounded.

EMC Design: The module’s PCB layout follows Honeywell’s internal EMC design rules: ground planes separate analog and digital domains, high-frequency signal traces are length-matched and impedance-controlled, and bypass capacitors are placed at each IC power pin. The metal housing provides shielding against radiated emissions and susceptibility, consistent with CE marking requirements under EN 61326-1 for industrial environments.

Thermal Management: Component selection and power dissipation budgeting ensure the module operates within thermal limits across the full 0–60°C ambient range without forced air cooling. This passive thermal design eliminates fan failure as a reliability concern in sealed control cabinets.

System Integration Benefits

• Native Experion PKS compatibility: The MU-TDID12 communicates directly over the I/O Link bus without protocol converters or gateway devices, preserving the deterministic scan cycle of the C300 subsystem and eliminating latency introduced by intermediate translation layers.
• Reduced marshalling complexity: The module’s termination design accepts field wiring directly at the IOTA rack, eliminating intermediate marshalling cabinets in many standard configurations and reducing the total number of connection points in the signal chain by up to 40%.
• Diagnostic transparency: Channel-level status is reported back to the Experion Station HMI in real time. Operators can identify open-circuit field wiring, short-circuit conditions, or out-of-range input states without physical inspection of the cabinet, reducing mean time to diagnose (MTTD) for field faults.
• Redundancy support: The module can be deployed in redundant I/O configurations where the Experion PKS architecture supports dual-module redundancy, providing continued signal acquisition if one module fails — critical for SIL 2 and SIL 3 safety instrumented functions.
• Hot-swap capability: Within supported Experion PKS configurations, the MU-TDID12 supports online replacement without requiring a controller restart or process shutdown, minimizing maintenance windows in continuous-process facilities.
• Consistent scan cycle contribution: Because the I/O Link bus operates on a fixed, deterministic schedule, the MU-TDID12’s input data arrives at the C300 controller at a predictable interval — a prerequisite for accurate timestamp-based sequence-of-events (SOE) recording in incident investigation.
• Backward compatibility within Experion PKS revisions: The module maintains hardware compatibility across multiple generations of the Experion PKS platform, allowing facilities to standardize on a single spare part number across mixed-vintage DCS installations.
• Simplified spare parts management: A single MU-TDID12 unit covers multiple field device types (dry contact, wet contact, NAMUR proximity), reducing the number of distinct spare part numbers that maintenance teams must stock and manage.

Quality Assurance & Global Logistics

Every MU-TDID12 unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification protocol. Visual inspection covers PCB condition, connector pin integrity, housing seating, and label legibility. Functional bench testing confirms basic I/O response across all channels. Part number and revision markings are cross-referenced against Honeywell’s published documentation to verify authenticity and revision level. Units are packaged in ESD-protective anti-static bags, enclosed in rigid foam-lined cartons rated for international air freight handling.

Honeywell’s manufacturing quality system for Experion PKS components operates under ISO 9001 certification, with process controls covering incoming component inspection, in-process electrical testing, and final functional verification before release. Original factory units carry Honeywell’s production traceability, and our team can provide available documentation upon request for regulated-industry procurement requirements.

From Xiamen, we ship globally via DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Standard in-stock orders are dispatched within 2–3 business days of purchase order confirmation. Full export documentation — commercial invoice, packing list, certificate of origin — is prepared as standard. For time-critical plant shutdowns or emergency maintenance situations, same-day dispatch is available for orders confirmed before 14:00 CST. Customs clearance support and HS code documentation are provided for all international shipments.
