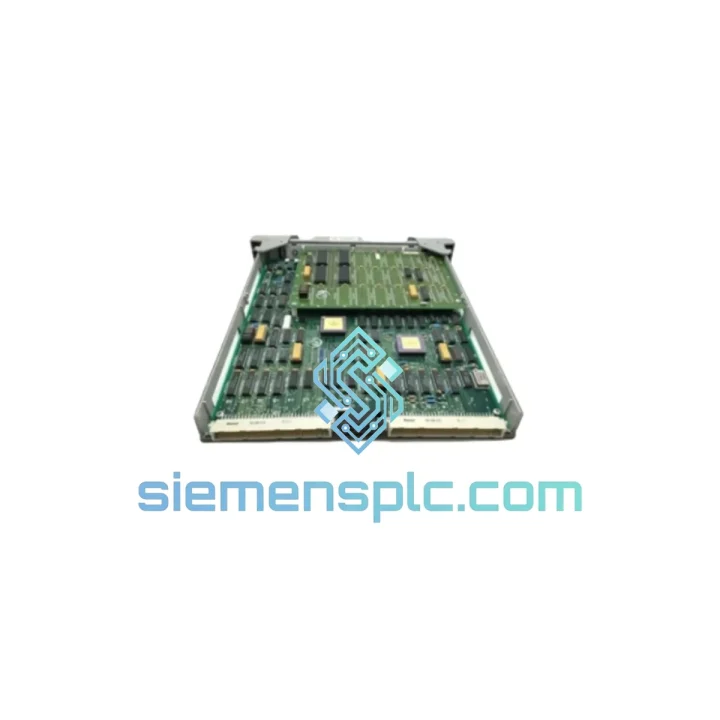

Honeywell SP-EMD172 DCS Module – SP Series

Honeywell SP-EMD172 — Distributed Process Control Module for High-Integrity Industrial Loops

The Honeywell SP-EMD172 is a distributed control system (DCS) process controller module engineered for continuous, high-availability process automation in sectors where loop integrity and deterministic scan-cycle execution are non-negotiable. Positioned within Honeywell’s SP Series architecture, this module operates as a field-side execution node, accepting analog and discrete process variable inputs, executing configured control algorithms, and driving output actuators — all within a tightly bounded cycle time that satisfies the real-time demands of refinery, chemical, and power-generation control loops.

Unlike general-purpose PLCs that rely on software-scheduled task execution, the SP-EMD172 implements hardware-enforced scan sequencing. The controller’s internal execution engine separates I/O acquisition, algorithm processing, and output write-back into discrete pipeline stages, preventing jitter accumulation across consecutive scan cycles. This architecture is particularly relevant in cascade and ratio control configurations where secondary loop response time directly affects primary variable stability.

The module integrates natively with Honeywell’s Experion PKS and legacy TDC 3000 platforms via the Universal Control Network (UCN) or FTE (Fault-Tolerant Ethernet) backbone, depending on site configuration. Communication framing uses deterministic token-passing arbitration, which eliminates the collision-induced latency inherent in standard Ethernet-based fieldbus implementations. Each SP-EMD172 node maintains a local copy of its control database, enabling autonomous loop execution during transient network interruptions — a critical behavior for safety-instrumented process segments.

From a hardware standpoint, the SP-EMD172 employs optocoupler-based galvanic isolation on all analog input channels, rated to withstand common-mode voltages up to 500 V DC. This isolation barrier prevents ground-loop currents — a frequent source of measurement error in large-scale process plants where field wiring spans hundreds of meters across multiple electrical zones — from corrupting the ADC reference. The 16-bit successive-approximation ADC delivers a resolution of approximately 0.0015% of full scale, sufficient for precision flow, pressure, and temperature measurement without external signal conditioning.

The SP-EMD172 supports a full library of IEC 61131-3 function blocks including PID, lead-lag, dead-time compensation, signal characterization, and selector logic. The PID implementation uses velocity-form (incremental) algorithm execution, which inherently prevents integrator wind-up during output saturation and provides bumpless transfer between manual and automatic modes. Anti-reset windup limits are configurable per loop, and derivative filtering is applied via a first-order lag with adjustable time constant to suppress high-frequency noise amplification.

Diagnostics are embedded at the hardware level. The module continuously monitors its own power rail voltages, internal temperature, memory checksum integrity, and communication link status. Any deviation outside defined thresholds generates a structured alarm with timestamp and fault code, propagated to the operator station via the DCS highway. This self-diagnostic transparency reduces mean time to repair (MTTR) by enabling maintenance personnel to isolate faults to the module level before dispatching field technicians.

For applications requiring redundancy, the SP-EMD172 supports hot-standby pairing. The primary and secondary modules synchronize their internal state databases at each scan cycle via a dedicated peer-to-peer link, ensuring that a switchover event — triggered by hardware fault detection or watchdog timeout — transfers control to the standby unit with zero output bump and no loss of accumulated integrator state. Switchover time is under 100 ms, well within the process response time of most thermal and fluid-dynamic loops.

Genuine Honeywell SP-EMD172 units are available from stock at siemensplc.com, dispatched from Xiamen, China with full traceability documentation. All units undergo pre-shipment functional verification. 12-month warranty is included. Contact [email protected] or WhatsApp +86 18359268345 for real-time stock confirmation and pricing.

📦 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The SP-EMD172’s internal architecture separates the control execution plane from the I/O acquisition plane using a dual-bus design. The I/O bus handles raw signal sampling and ADC conversion at a fixed hardware clock rate, independent of the control algorithm execution cycle. This decoupling prevents ADC conversion latency from introducing variable delays into the PID computation path — a design discipline that becomes measurable in fast-response loops with derivative action enabled.

EMC hardening is implemented at multiple layers. The PCB layout routes analog signal traces through a dedicated ground plane segment isolated from the digital logic ground, reducing capacitive coupling of switching noise into the measurement path. Input filter networks — comprising RC low-pass stages with corner frequencies tuned to the expected process signal bandwidth — attenuate high-frequency interference before the ADC sampling gate. The module’s enclosure provides shielding continuity, and all external connectors are bonded to chassis ground through low-impedance paths to suppress conducted and radiated emissions per IEC 61000-4 series test requirements.

The watchdog timer architecture uses a hardware-independent oscillator circuit that cannot be reset by software execution. If the main processor fails to service the watchdog within the configured timeout window — typically 1–2 scan cycles — the watchdog asserts a hardware reset and simultaneously drives all analog outputs to their configured fail-safe states (hold-last-value or defined fallback setpoint). This fail-safe output behavior is implemented in dedicated output-hold circuitry that operates independently of the processor, ensuring actuator positioning is maintained even during a complete CPU fault.

Memory integrity is maintained through ECC (Error Correcting Code) on the SRAM used for the live control database. Single-bit errors are corrected transparently; multi-bit errors trigger a controlled module fault with alarm propagation. The configuration database stored in non-volatile flash is protected by CRC verification at each power-up, preventing corrupted configurations from loading into the execution engine.

System Integration Benefits

• Deterministic loop execution: Hardware-enforced scan sequencing eliminates software-induced jitter, maintaining consistent PID output update rates regardless of system load.
• Autonomous operation during network faults: Local control database copy sustains loop execution during transient DCS highway interruptions, preventing process upsets from communication events.
• Zero-bump redundancy switchover: Hot-standby state synchronization ensures integrator state and output value are preserved across primary-to-standby transitions, with switchover completing in under 100 ms.
• Structured fault diagnostics: Hardware-level monitoring of power, temperature, memory, and communications generates timestamped, coded alarms that reduce fault isolation time and MTTR.
• Galvanic input isolation: 500 V DC CMV-rated optocoupler isolation eliminates ground-loop measurement errors across multi-zone field wiring installations.
• Anti-windup PID implementation: Velocity-form algorithm with configurable anti-reset windup limits and derivative filtering prevents integrator saturation and output spikes during setpoint transitions or manual-to-auto transfers.
• Native platform interoperability: Direct integration with Experion PKS and TDC 3000 via UCN/FTE eliminates gateway hardware and associated latency, preserving end-to-end loop timing budgets.
• Fail-safe output architecture: Hardware-independent output-hold circuitry maintains actuator positioning during CPU faults, with configurable fail-safe states (hold-last-value or defined setpoint) per output channel.
• ECC memory protection: Single-bit error correction on live control SRAM prevents data corruption from propagating into algorithm execution without operator awareness.
• Scalable redundancy model: Hot-standby pairing is configurable per module without requiring system-wide redundancy, allowing targeted high-availability deployment on critical loops within a mixed-criticality architecture.

Quality Assurance & Global Logistics

Every SP-EMD172 unit dispatched by siemensplc.com is a genuine Honeywell-manufactured component sourced through verified supply channels. Pre-shipment inspection includes power-on functional verification, communication link test, and visual inspection for physical integrity. A certificate of conformance is available upon request for quality-system documentation requirements.

Shipments originate from Xiamen, China, with access to major international freight lanes serving Southeast Asia, the Middle East, Europe, and the Americas. Standard export documentation — commercial invoice, packing list, and country-of-origin certificate — is prepared for each order. For time-critical requirements, express air freight options with 3–5 business day delivery to most destinations are available. All units are packed in anti-static shielding bags within foam-lined cartons rated for air and sea freight handling.

A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the dispatch date. Warranty claims are processed with replacement dispatch within 5 business days of confirmed fault verification. Traceability documentation including batch records is retained and available for regulated-industry procurement audits.
