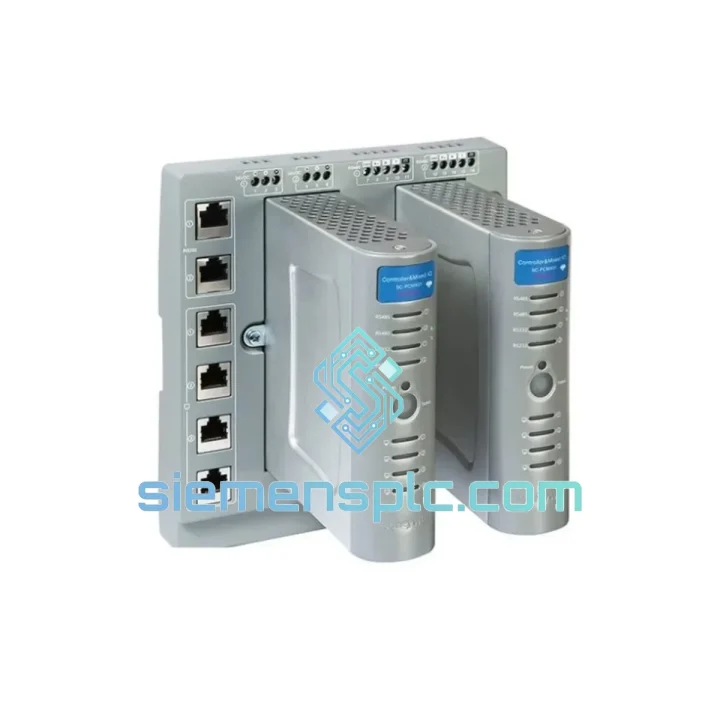

Honeywell SP-EMD174 Process Controller – ControlEdge Series

Honeywell SP-EMD174 ControlEdge Non-Redundant Process Controller: Core Role in Distributed Control Architecture

The Honeywell SP-EMD174 is a non-redundant controller module within the ControlEdge product family, designed to execute deterministic process control loops in distributed automation systems. It operates as the primary execution engine for regulatory, sequential, and advanced control strategies in applications where single-controller topology is acceptable by process risk classification. The module interfaces directly with ControlEdge I/O subsystems over a high-speed internal backplane bus, offloading scan-cycle management from the host Experion PKS server and maintaining autonomous loop execution during network interruptions.

In a typical ControlEdge architecture, the SP-EMD174 handles PID loop execution, function block scheduling, and peer-to-peer data exchange with adjacent controllers via the process Ethernet network. Its non-redundant classification positions it for applications in Zones 2 and 3 of process risk matrices — utilities, auxiliary systems, and secondary process trains — where the cost of redundant hardware is not justified by the consequence of a single-point failure. The controller’s deterministic scan engine guarantees fixed-interval task execution independent of communication load, a property critical for tight flow and pressure control loops with sub-100 ms response requirements.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The SP-EMD174 is built around a fixed-priority preemptive real-time operating system (RTOS) kernel that partitions execution into fast, medium, and slow task tiers. Fast tasks — typically assigned to closed-loop PID and interlock logic — execute at scan periods as short as 10 ms with jitter bounded below ±1 ms under normal I/O loading. This determinism is achieved by isolating the control processor from the communication stack through a dual-port RAM interface: the Ethernet process network handler runs on a dedicated communication co-processor, preventing any network burst from preempting the control scan.

The backplane bus connecting the SP-EMD174 to ControlEdge I/O modules uses a synchronous token-passing protocol. Each I/O module is polled in a fixed sequence per scan cycle, and the controller timestamps each I/O sample at acquisition rather than at processing. This hardware timestamping mechanism allows the controller to reconstruct the precise sequence of events (SOE) at 1 ms resolution without relying on host-server clock synchronization — a significant advantage in post-incident analysis for process upsets.

EMC hardening on the SP-EMD174 follows a multi-layer approach. The PCB stack uses a dedicated ground plane between signal layers, reducing common-mode noise coupling from adjacent high-current I/O circuits. All external connectors are filtered with π-type LC networks rated to suppress conducted interference up to 150 kHz per IEC 61000-4-6. The chassis ground path is bonded directly to the DIN-rail mounting clip, providing a low-impedance return path for electrostatic discharge events up to 8 kV contact / 15 kV air per IEC 61000-4-2. These design choices allow the module to operate without additional shielding enclosures in industrial environments with variable-frequency drives and high-voltage switchgear in proximity.

Non-volatile memory management on the SP-EMD174 uses a wear-leveled flash architecture for application program storage. On power restoration, the controller executes a cold-start sequence that validates the stored application checksum before entering run mode, preventing execution of corrupted logic after an uncontrolled power loss. The startup sequence completes in under 30 seconds from power application to first scan output — a parameter relevant for process restart time calculations in batch and continuous operations.

System Integration Benefits

• Autonomous loop execution during server disconnect: The SP-EMD174 continues executing all configured control loops and interlocks independently of Experion PKS server connectivity. Operator setpoint changes made before disconnection are retained in controller RAM, and the module resumes normal server communication without requiring a restart when the link is restored.
• Peer-to-peer data exchange without server mediation: Controllers in the same ControlEdge network can exchange process variables directly over the Ethernet process network using published/subscribed data blocks. This eliminates server round-trip latency for cross-controller cascade loops, reducing inter-controller data age to one scan cycle.
• Integrated diagnostic transparency: The SP-EMD174 exposes a structured diagnostic data set to the Experion server including scan overrun counts, communication retry statistics, I/O module health status, and internal temperature. These parameters are accessible as standard process points and can be trended, alarmed, and included in historian archives without custom configuration.
• IEC 61131-3 multi-language programming: Application logic can be developed in Function Block Diagram (FBD), Ladder Diagram (LD), Structured Text (ST), or Sequential Function Chart (SFC) within ControlEdge Builder. Mixed-language projects are supported within a single controller, allowing engineers to use the most appropriate representation for each control module.
• Scalable I/O expansion via ControlEdge chassis: The SP-EMD174 supports expansion to multiple I/O chassis over the backplane bus, accommodating analog input, analog output, digital input, digital output, and specialty modules (thermocouple, RTD, pulse) within a unified address space. I/O module addition does not require a controller restart.
• Alarm and event management at controller level: Process alarms configured in the SP-EMD174 are evaluated at scan rate within the controller, not at the server. This ensures alarm detection latency is bounded by the scan period rather than by server polling intervals, which is critical for fast-acting pressure and temperature protection functions.
• Firmware upgrade without chassis removal: Firmware updates are delivered over the process Ethernet network using the ControlEdge firmware management utility. The update procedure does not require physical access to the module or removal from the chassis, reducing maintenance downtime in installations with restricted physical access.
• Seamless migration path to redundant topology: Process applications developed on the SP-EMD174 are portable to the redundant ControlEdge controller variants without logic rewriting. This allows projects to begin with non-redundant hardware during commissioning and upgrade to redundancy in production without re-engineering the control strategy.

Quality Assurance & Global Logistics

Every SP-EMD174 unit supplied by siemensplc.com is sourced through verified industrial procurement channels with full traceability to Honeywell Process Solutions manufacturing. Units are inspected upon receipt for label authenticity, firmware revision consistency, connector integrity, and housing condition. Functional verification — including power-on self-test completion and backplane communication handshake — is performed before packaging. Anti-static packaging with humidity indicator cards and tamper-evident sealing is used for all shipments.

Our logistics operation is based in Xiamen, China, with established accounts with DHL Express, FedEx International Priority, and UPS Worldwide Expedited. In-stock units are dispatched within 24–48 hours of order confirmation. International transit times to Europe, North America, Southeast Asia, and the Middle East typically range from 3 to 7 business days via express courier. Full customs documentation — including commercial invoice, packing list, and certificate of origin — is prepared for every shipment. For large-volume orders, sea freight consolidation and door-to-door delivery with customs clearance assistance are available upon request. All units carry a 12-month warranty against manufacturing defects from the date of shipment.
