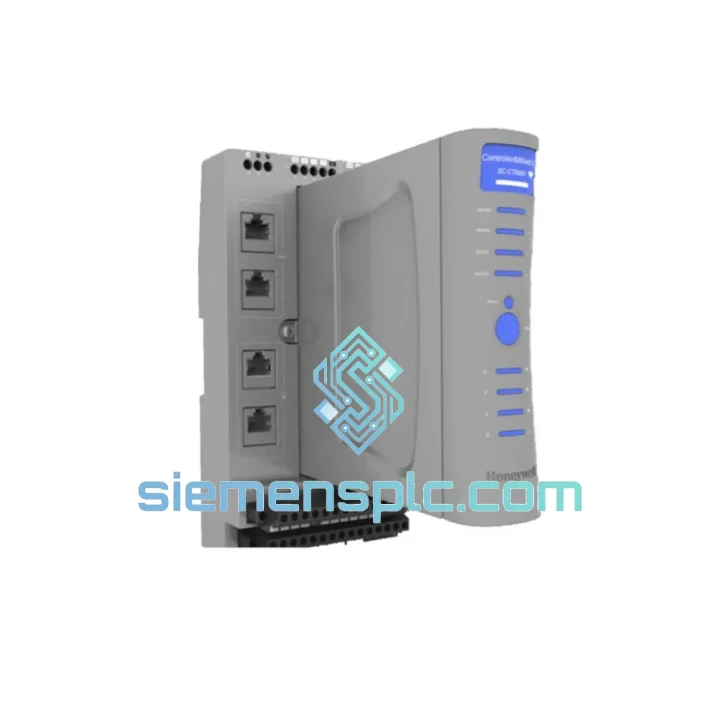

Honeywell SP-MRUN01 Remote Terminal Unit

SP-MRUN01 Down? Every Minute of Downtime Costs You — We Ship Today

A failed SP-MRUN01 at a remote wellhead, pump station, or substation doesn’t just trigger an alarm — it stops production, triggers SLA penalties, and puts your team under pressure from every direction. The Honeywell SP-MRUN01 is the master RTU controller in the Experion RTU platform, and when it fails, there is no workaround. You need an exact replacement, configured correctly, on-site fast.

We stock the SP-MRUN01 in Xiamen and ship globally via DHL Express and FedEx International Priority. Most orders clear customs and arrive at your facility within 3–5 business days. No waiting on Honeywell’s standard lead times. No distributor backorder queues. Just a verified, original unit in your hands when you need it.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling dozens of SP-MRUN01 swap-outs in the field, these are the failure patterns and replacement pitfalls that actually matter:

Common Failure Indicators:

• STATUS LED solid red or alternating red/amber: Internal processor fault or firmware corruption. A power cycle rarely resolves this — the module needs replacement.
• COMM LED off with no DNP3/Modbus traffic: Check the communication port first (cable, termination resistor). If the port hardware is confirmed good and the LED stays dark, the SP-MRUN01’s communication processor has likely failed.
• RTU drops off Experion PKS host intermittently: Often caused by a degraded internal clock or failing flash memory. Logs will show repeated “RTU reconnect” events. Firmware reflash rarely fixes this permanently — plan for module replacement.
• I/O expansion modules reporting correctly but master RTU unresponsive: The SP-MRUN01 backplane interface has failed. Expansion modules are fine; the master controller is the fault point.

Replacement Procedure — Field Checklist:

1. Export the RTU configuration from Experion Station before powering down. Use the RTU Builder tool to save the .rtu project file. If the module is already dead and you cannot export, locate the last backup in your Experion server archive — this is non-negotiable before proceeding.
2. Document all communication port settings: DNP3 station address, Modbus slave ID, baud rate, parity, and stop bits. These are site-specific and must match exactly on the replacement unit.
3. Power down the RTU chassis — isolate the DC supply. The SP-MRUN01 is not hot-swappable in most configurations. Confirm with your site safety procedure before removal.
4. Check the DIP switch configuration on the failed module before removing it. The SP-MRUN01 uses onboard DIP switches to set communication mode and address parameters. Photograph the switch positions — replicate them exactly on the new unit before installation.
5. Seat the replacement module firmly into the backplane connector. A partial connection will cause intermittent I/O faults that are difficult to diagnose.
6. Restore firmware first, then configuration. If the replacement unit ships with a different firmware revision than your system baseline, update firmware via the Experion RTU Builder before loading the .rtu configuration file. Mismatched firmware versions cause silent configuration load failures.
7. Verify DNP3 station address uniqueness across your SCADA network. Duplicate addresses cause master polling conflicts that look like hardware faults.
8. Perform a full I/O scan after commissioning. Confirm all analog and digital points are reporting correctly to the Experion PKS host before returning the site to service.

Firmware Compatibility Note: Always match the SP-MRUN01 firmware version to your Experion RTU Builder software version. Running a newer module firmware with an older RTU Builder will result in configuration parameters being silently ignored. Check the Honeywell Experion RTU release matrix before flashing.

Reliability in Harsh Conditions

The SP-MRUN01 is not a commercial-grade controller dressed up for industrial use. It is designed from the ground up for environments where failure is not an option and maintenance visits are expensive.

The module operates across a -40°C to +70°C temperature range — covering arctic pipeline installations and desert substation enclosures without derating. The internal components are selected for extended temperature cycling, not just steady-state operation. Repeated freeze-thaw cycles and diurnal temperature swings that destroy commercial electronics are within the SP-MRUN01’s design envelope.

Vibration resistance meets IEC 60068-2-6 test profiles, making it suitable for compressor station installations where mechanical vibration is continuous. The DIN-rail mounting system includes positive locking to prevent module creep under sustained vibration loads.

Humidity tolerance extends to 95% non-condensing, with conformal coating on the PCB providing additional protection against moisture ingress in coastal and high-humidity environments. Units destined for offshore or tropical deployments should be installed in IP65-rated enclosures — the module itself is not sealed, but its electronics are protected against condensation under normal operating conditions.

Wide-range DC input with built-in transient suppression handles the voltage spikes common in field power systems fed from solar arrays, generators, or poorly regulated substation DC buses. Battery-backed UPS compatibility ensures the RTU maintains communication and data logging through power interruptions — critical for pipeline leak detection applications where data continuity is a regulatory requirement.

Global Express Logistics

Our warehouse is located in Xiamen, China — a major international freight hub with direct DHL Express and FedEx International Priority connections to over 220 countries and territories.

Standard Express Timeline (from order confirmation):

• Order processing & export documentation: Same business day for orders confirmed before 14:00 CST
• DHL Express / FedEx IP transit: 2–4 business days to most of Europe, North America, Southeast Asia, and the Middle East
• Customs clearance: We prepare full commercial invoice, packing list, and HS code documentation to minimize customs delays. For countries with complex import procedures (Brazil, India, Russia), we advise on importer-of-record requirements upfront.
• Delivery to site: 3–5 business days total for most destinations

Every shipment includes a tracking number issued within 2 hours of dispatch. Anti-static packaging with humidity indicator cards protects the SP-MRUN01 during transit. For extremely urgent requirements, we can arrange same-day dispatch with courier pickup from our facility — contact us directly to confirm cut-off times.

We have shipped Honeywell Experion RTU components to oil & gas operators in the Middle East, water utilities in Southeast Asia, and power companies across Europe. Our export compliance team handles all necessary documentation for controlled industrial electronics.

Contact Information

Ready to place an order or need a quote for multiple units? Reach our technical sales team directly:

• Email: [email protected]
• WhatsApp: +86 18359268345
• Web: siemensplc.com
