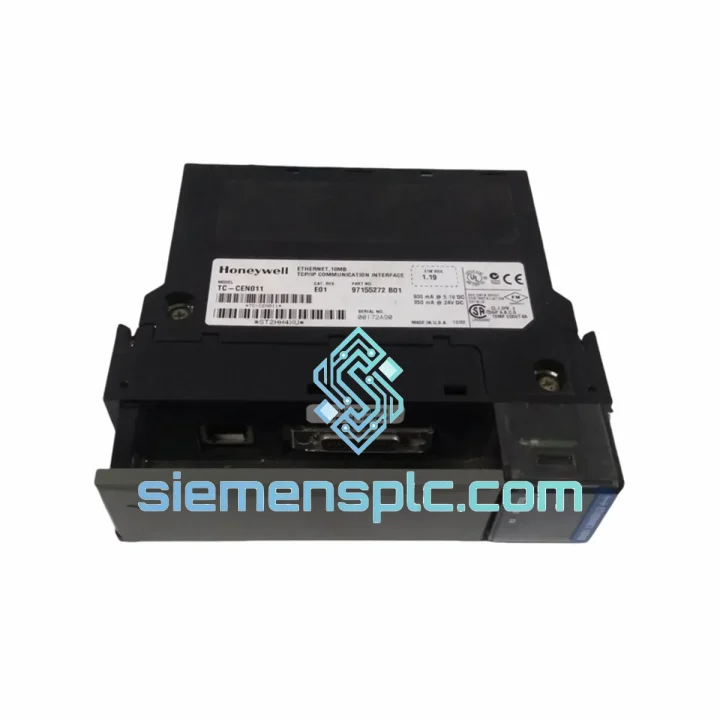

Honeywell TC-CEN011 Ethernet Communication Module – Experion PKS C300

Honeywell TC-CEN011 CENet Ethernet Communication Module: Backplane-to-FTE Bridge in C300 Control Architecture

The Honeywell TC-CEN011 is the dedicated CENet (Controller Ethernet) communication module for the Experion PKS C300 Process Controller platform. Its singular function is to terminate the C300 controller’s internal CENet bus and present two independent 100BASE-TX Ethernet ports to the plant’s Fault Tolerant Ethernet (FTE) network. Without this module, the C300 controller chassis has no path to the supervisory Experion server, historian, or peer controllers. It is not a general-purpose network card; it is a deterministic, protocol-aware bridge engineered to the latency and availability requirements of continuous process control.

In a standard Experion PKS architecture, the FTE network operates as a dual-ring, switched Ethernet fabric. Each ring is electrically independent, and the TC-CEN011 maintains simultaneous active connections to both rings. Should a cable fault, switch failure, or port-level error occur on one ring, the module’s internal arbitration logic promotes the secondary path to active status within the network’s convergence window — a transition transparent to the C300 controller’s scan cycle. This dual-path arbitration is not managed by the host controller CPU; it is handled autonomously within the TC-CEN011’s onboard logic, preserving controller processing bandwidth for closed-loop execution.

The module occupies a dedicated CENet slot in the C300 chassis — a slot type that is electrically and mechanically distinct from I/O link slots. The backplane connector carries both the CENet data bus and the module’s DC power rail, eliminating the need for an external power feed. The module’s firmware is version-locked to the Experion PKS release train; field upgrades are performed via the Experion Configuration Studio without physical removal of the module.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The TC-CEN011’s internal architecture separates three functional domains: the CENet backplane interface, the dual-port Ethernet MAC/PHY layer, and the FTE arbitration engine.

The CENet backplane interface operates as a point-to-point serial bus between the C300 controller ASIC and the TC-CEN011. This bus is not shared with I/O link traffic; it carries exclusively controller-to-network data frames, which means I/O scan jitter has no coupling effect on Ethernet throughput. The bus operates at a fixed clock rate synchronized to the C300 controller’s execution cycle, providing a deterministic data handoff window every scan period.

The dual-port MAC/PHY layer implements two fully independent 100BASE-TX transceivers. Each port connects to a separate FTE ring switch. Both ports are active simultaneously — the module does not operate in a primary/standby port model. Outbound frames are replicated to both ports; inbound frames from both ports are received and deduplicated by the FTE arbitration engine before delivery to the CENet bus. This replication-and-deduplication model means that a single-ring failure produces zero packet loss at the application layer.

The FTE arbitration engine monitors per-port link state, frame error counters, and CRC error rates in real time. When error thresholds on one port exceed configured limits, the engine flags that port as degraded and logs a diagnostic event to the Experion server without interrupting data flow on the healthy port. This self-diagnostic capability allows maintenance personnel to identify and replace a failed FTE switch or cable segment during normal plant operation, without a controller shutdown.

From an EMC design standpoint, the module’s PCB layout isolates the high-frequency Ethernet switching circuitry from the backplane bus using a ground plane partition. The RJ-45 connectors are fitted with integrated common-mode chokes and transient voltage suppressors rated to IEC 61000-4-5 surge levels, providing protection against conducted transients common in industrial panel environments where variable-frequency drives and contactors share cable trays with control wiring.

System Integration Benefits

• Zero-impact ring failover: Dual simultaneous active ports with onboard deduplication deliver sub-millisecond effective switchover at the data layer, keeping the C300 scan cycle uninterrupted during single-ring faults.
• Controller CPU isolation: FTE arbitration logic is executed entirely within the TC-CEN011, offloading network health management from the C300 processor and preserving deterministic PID execution bandwidth.
• Transparent firmware upgrade path: Module firmware is updated in-situ via Experion Configuration Studio; no chassis power cycle or module extraction is required, eliminating planned downtime for software maintenance.
• Granular diagnostic visibility: Per-port frame error counters, CRC rates, and link-state events are reported to the Experion server as structured alarm objects, enabling predictive maintenance workflows without additional diagnostic hardware.
• Slot-type enforcement: The CENet slot’s mechanical keying prevents accidental installation of I/O link modules, eliminating a class of field wiring errors during commissioning or module replacement.
• Redundant controller support: When paired with a redundant C300 controller pair, the TC-CEN011 participates in the controller switchover protocol, maintaining FTE network presence during primary-to-secondary controller transitions.
• Hazardous area deployment: FM Class I Division 2 certification permits installation in control panels located in classified areas without requiring purge-and-pressurization enclosures, reducing panel engineering cost.
• Long-term platform alignment: The module is part of Honeywell’s extended lifecycle commitment to the C300 platform, with documented support through the Experion PKS R5xx release series, protecting capital investment in existing DCS infrastructure.

Quality Assurance & Global Logistics

Every TC-CEN011 unit supplied through siemensplc.com is sourced from verified OEM channels. Prior to dispatch, each module undergoes a structured pre-shipment inspection protocol: visual examination of PCB, connector pins, and label markings against Honeywell OEM reference standards; serial number cross-check against manufacturer traceability records; and functional power-on verification where test equipment permits. Units are packed in ESD-safe anti-static bags, placed in foam-lined cartons, and sealed with tamper-evident tape. A packing list, commercial invoice, and certificate of origin accompany every shipment.

Logistics operations are based in Xiamen, China, with direct access to Xiamen Gaoqi International Airport and Xiamen Port, supporting both air freight and sea freight dispatch. Standard international air freight transit times are 3–7 business days to major industrial hubs in Southeast Asia, the Middle East, Europe, and the Americas. Express courier options (DHL, FedEx, UPS) are available for urgent requirements. All shipments are covered by cargo insurance, and tracking numbers are provided within 24 hours of dispatch.
