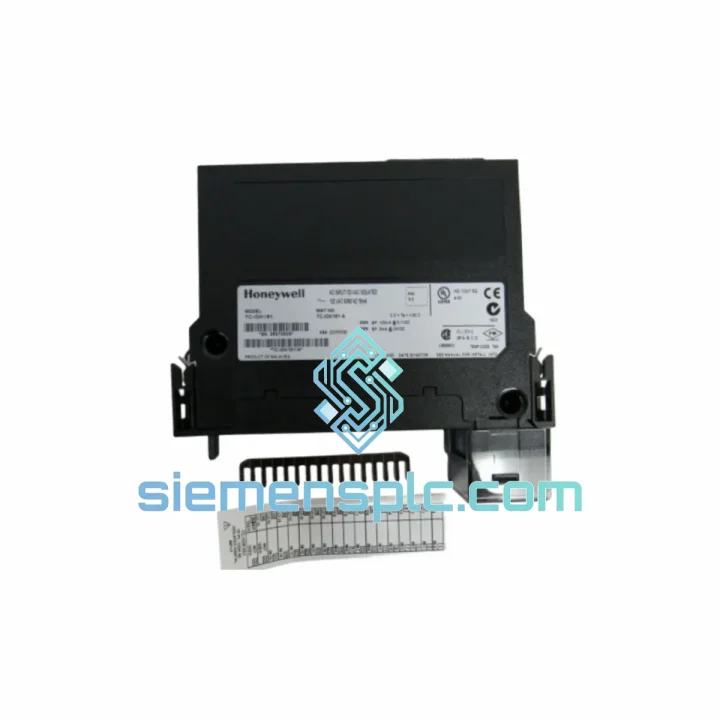

Honeywell TC-IDK161 Isolated Digital Input Module

Honeywell TC-IDK161 – 16-Channel Isolated Digital Input Module: Stop the Clock on Your Unplanned Downtime

Every hour an Experion PKS node sits dark costs real money. When a TC-IDK161 fails, the cascade is immediate: field signals go blind, the controller flags I/O faults, operators lose process visibility, and safety interlocks may force a unit shutdown. This page exists for one reason — to get a verified, original Honeywell TC-IDK161 onto your site within the shortest possible logistics window. We stock this module in Xiamen, China, and ship globally via DHL Express and FedEx International Priority. Most destinations in Asia receive units within 24–48 hours; Europe and North America within 3–5 business days.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common Fault Indicators That Point to a Failed TC-IDK161:

• Experion PKS Alarm: “IOM Comm Failure” or “Card Not Responding” — The controller has lost backplane communication with the module. First reseat the card firmly; if the fault persists after a 30-second wait, the module’s backplane transceiver or internal power regulator has likely failed.
• All 16 channels reading FALSE simultaneously — With confirmed field-side 24 VDC present at the terminal block, a blanket FALSE across all channels indicates the input ASIC or the isolation barrier circuitry has failed, not a field wiring issue.
• Intermittent channel dropouts on channels 8–16 — A known failure mode in aged TC-IDK161 units is degradation of the secondary-side optocoupler array. Channels 8–16 share a secondary power rail; dropout on this group while channels 1–7 remain stable is a strong diagnostic indicator.
• Excessive CRC errors on the backplane bus — Visible in Experion Control Builder diagnostics. If isolated to a single slot, the module’s bus driver IC is the suspect.

Step-by-Step Hot-Swap Replacement Procedure:

1. Verify chassis supports hot-swap — TC-series chassis with redundant power supplies support live card extraction. Confirm with your system documentation before proceeding.
2. Inhibit the I/O point in Control Builder — Navigate to the affected IOM, set all 16 DI points to “Inhibit” state to prevent false process alarms during the swap.
3. Document the terminal block wiring — Photograph or record field wire assignments before disconnecting. TC-IDK161 uses a 40-pin removable terminal block; the block itself stays in the chassis during card extraction.
4. Extract the faulty card — Release the two card ejector levers simultaneously. Slide the card straight out. Avoid touching the backplane connector pins.
5. Insert the replacement TC-IDK161 — The module is keyed; it cannot be inserted inverted. Slide in until both ejectors click. The module performs self-addressing automatically within 5–10 seconds of backplane power-up — no DIP switch configuration is required on this model.
6. Verify firmware compatibility — In Control Builder, check the IOM firmware revision reported by the new card. If the chassis runs Experion R500 or above and the replacement card carries older firmware, initiate a firmware download from the server. This takes approximately 90 seconds and does not require a controller restart.
7. Release inhibit and validate — Remove the inhibit state from all 16 points. Confirm field signal states match physical device states. Check the Experion alarm summary for residual faults.
8. Log the replacement — Record the serial number of the removed card and the replacement card in your maintenance management system (CMMS). Honeywell recommends retaining failed cards for RMA analysis if the failure mode is unclear.

Configuration Notes: Unlike some competing DCS I/O platforms, the TC-IDK161 does not require manual slot addressing via DIP switches or rotary encoders. The Experion PKS backplane assigns the module address automatically based on physical slot position. If you are moving a module from one slot to another, the controller will detect the address change and may generate a configuration mismatch alarm — resolve this in Control Builder by updating the IOM slot assignment in the hardware tree.

Reliability in Harsh Conditions

Process plants are not laboratory environments. The TC-IDK161 is designed to operate continuously in conditions that would degrade consumer or light-industrial electronics within weeks.

• Vibration Resistance: The module meets IEC 60068-2-6 sinusoidal vibration testing at 2 g, 10–150 Hz. PCB components are conformally coated to prevent solder joint fatigue under sustained mechanical vibration — a critical requirement in compressor buildings and rotating equipment skids.
• Thermal Cycling Tolerance: Rated for 0 °C to 60 °C continuous operation with thermal cycling qualification per IEC 60068-2-14. The internal power supply is designed with derating margins that maintain regulation across the full temperature range without fan assistance.
• Humidity and Condensation: Conformal coating on the PCB provides protection against humidity up to 95% RH non-condensing. In coastal or offshore installations where salt-laden air is present, the coating provides a meaningful barrier against corrosive ingress on exposed copper traces.
• EMC / EMI Immunity: The galvanic isolation barrier between field terminals and the backplane bus provides inherent common-mode rejection. The module meets IEC 61000-4-4 (electrical fast transient) and IEC 61000-4-5 (surge) immunity levels, protecting the controller from field-side switching transients generated by solenoid valves, motor starters, and relay coils.
• ESD Protection: Each input channel incorporates transient voltage suppression (TVS) diodes rated for ±1 kV contact discharge per IEC 61000-4-2, preventing latch-up from static discharge during maintenance activities.
• Long-Term Component Stability: Honeywell specifies a design MTBF exceeding 200,000 hours at 40 °C ambient for the TC-IDK161. This figure is derived from MIL-HDBK-217F component stress analysis and reflects the conservative derating applied to all active components in the design.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province, China — a major port city with direct access to DHL, FedEx, UPS, and TNT international express networks. This geographic position gives us competitive transit times to every major industrial region globally.

• Order Cut-Off: Orders confirmed and payment cleared before 15:00 CST are dispatched same business day.
• Asia-Pacific: Japan, South Korea, Singapore, Thailand, Malaysia, Indonesia — typically 1–3 business days via DHL Express.
• Middle East & India: UAE, Saudi Arabia, Kuwait, India — typically 2–4 business days via FedEx International Priority.
• Europe: Germany, Netherlands, UK, France, Italy, Spain — typically 3–5 business days via DHL Express Worldwide.
• North America: USA, Canada, Mexico — typically 3–5 business days via FedEx International Priority.
• Customs Documentation: We prepare a full commercial invoice, packing list, and certificate of origin. HS code classification typically 8537.10 for smooth customs clearance.
• Tracking: A waybill number is emailed within 2 hours of dispatch. Real-time tracking available via the carrier portal. Our logistics team monitors urgent shipments proactively.
• Packaging: Each TC-IDK161 is packed in an anti-static bag, placed in a foam-lined rigid carton, and sealed with tamper-evident tape. Gross weight approximately 1.2 kg per unit.
