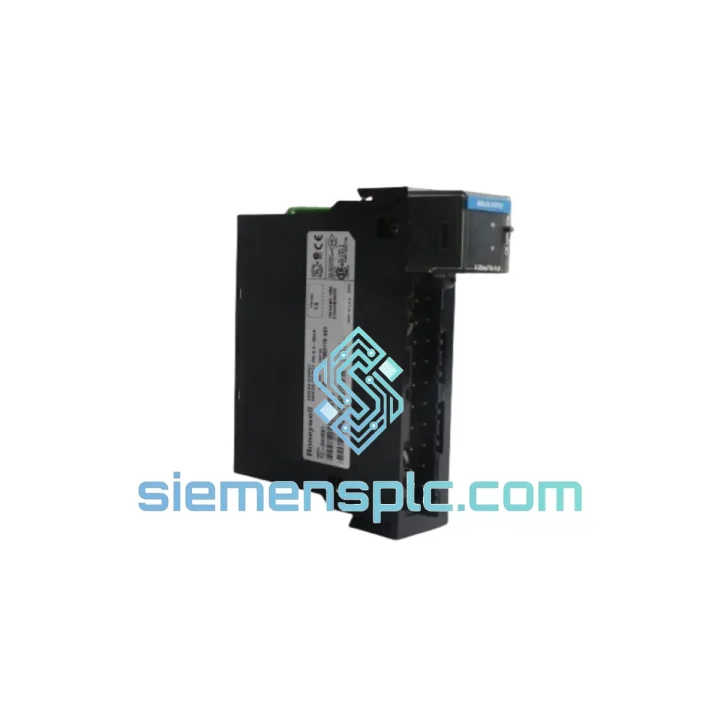

Honeywell TC-OAV081 Analog Output Module

Honeywell TC-OAV081 — Stop the Clock on Your Unplanned Downtime

Every hour an Experion PKS C300 analog output channel stays offline, your process loop is running blind. Valve positioners lose their setpoint reference, flow control degrades to manual override, and your operations team is watching yield evaporate in real time. The Honeywell TC-OAV081 is an 8-channel, 4–20 mA HART-capable analog output module purpose-built for the C300 I/O subsystem — and we keep verified stock in Xiamen, China, ready to clear customs and land on your maintenance bench faster than your OEM’s lead time.

This is not a refurbished pull. It is not a grey-market relabel. Every TC-OAV081 unit leaving our warehouse carries its original Honeywell part label, intact ESD packaging, and a 12-month operational warranty. When your DCS engineer calls at 02:00 with a failed AO card, this page is where the fix starts.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The TC-OAV081 fails in predictable patterns. Here is what field experience tells you before you even pull the card:

Fault Code BAD_PV / AO_FAIL on Experion Station: This alarm almost always points to one of three root causes — a blown output transistor on a single channel (the remaining 7 channels stay live), a corrupted EEPROM configuration block (module powers up but refuses to accept setpoints), or a failed SCIO backplane connector causing intermittent communication loss. Swap the module first; if the fault migrates to the new card, the backplane connector is your real problem.

Replacement Procedure (C300 Hot-Swap):

1. In Experion Station, navigate to the affected AO module faceplate and set all 8 channel modes to Manual. Record current output values — your field devices will hold last value for approximately 30 seconds during the swap.
2. Disconnect the IOTA field wiring termination assembly (TC-FPC series) from the module face. The IOTA stays wired; only the module is removed.
3. Press the module ejector lever and slide the TC-OAV081 straight out of the backplane slot. Do not rock or twist — the SCIO connector is a 96-pin DIN41612 and bending pins will damage the backplane.
4. Insert the replacement TC-OAV081 until the ejector clicks. The C300 controller will auto-detect the new module within 5–15 seconds and begin downloading the stored configuration from the controller database. No manual address setting or DIP switch configuration is required — the C300 architecture uses software-defined slot addressing.
5. Verify the module STATUS LED transitions from amber (initializing) to solid green (online). Check Experion Station for channel-level diagnostics before returning channels to Auto.
6. If the module stays in amber for more than 60 seconds, check that the firmware revision of the replacement card is compatible with your C300 controller firmware. Mismatched firmware (e.g., a newer TC-OAV081 hardware revision in an older R400 environment) can cause a version handshake timeout. Contact us — we can confirm hardware revision before shipment.

HART Commissioning Note: After replacement, HART device descriptors cached in the controller may need a re-poll. In Experion Control Builder, right-click the AO block and select Refresh HART Device to re-establish the DD link with your field positioners or smart transmitters.

Common Misdiagnosis: Engineers frequently replace the TC-OAV081 when the actual fault is in the IOTA termination assembly (TC-FPC series). Before ordering, verify that the IOTA’s field terminal screws are torqued to 0.5 N·m and that the ribbon cable between IOTA and module is fully seated. A loose ribbon accounts for roughly 20% of reported AO module failures in C300 systems.

Reliability in Harsh Conditions

The TC-OAV081 is designed to operate continuously inside marshalling cabinets in refineries, offshore platforms, and chemical plants — environments that combine vibration, thermal cycling, and corrosive airborne contaminants simultaneously.

Honeywell’s C300 I/O hardware is qualified to IEC 61131-2 environmental standards. The TC-OAV081 specifically withstands sinusoidal vibration up to 5 g across 10–150 Hz — sufficient for cabinet installations on reciprocating compressor skids where structural vibration is a constant. Thermal cycling qualification covers –20 °C to +70 °C storage range, meaning the module survives cold-start conditions in unheated substations before the cabinet heater brings the enclosure to operating temperature.

The PCB conformal coating applied during Honeywell’s manufacturing process provides protection against humidity excursions and airborne sulfur compounds common in gas processing facilities. This is not a consumer-grade coating — it is a full IPC-CC-830 qualified acrylic layer that prevents dendritic growth on the analog output DAC circuitry, which is the component most sensitive to humidity-induced leakage current.

EMC performance meets EN 61000-4-2 (ESD), EN 61000-4-4 (EFT/Burst), and EN 61000-4-5 (Surge) — the three most common interference sources in industrial power environments. The 16-bit DAC output remains stable within ±0.1% of full scale under conducted RF interference levels that would saturate a lower-grade module.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province, China — one of the country’s primary export hubs with direct access to Xiamen Gaoqi International Airport and Xiamen Port. This geography is deliberate: it gives us the fastest possible transit times to Southeast Asia, the Middle East, and Europe without routing through congested inland distribution centers.

Standard Express Routing: DHL Express and FedEx International Priority are our default carriers for urgent spare parts. Typical transit times from Xiamen: Southeast Asia 1–2 business days, Middle East 2–3 business days, Europe 3–4 business days, Americas 3–5 business days. These are door-to-door times under normal customs clearance conditions.

Same-Day Dispatch: Orders confirmed and payment cleared before 14:00 CST ship the same business day. We pre-prepare export documentation — commercial invoice, packing list, ESD handling declaration, and certificate of origin — so there is no delay at the freight counter.

Customs Clearance: The TC-OAV081 ships under HS Code 8537.10 (boards, panels, consoles for electric control). We provide accurate valuation documentation and can supply an end-use certificate for destinations requiring import licensing for industrial control equipment. Our logistics team has cleared shipments into Saudi Arabia, India, Indonesia, Germany, and the United States without customs holds.

Emergency Freight: For genuine plant-down situations, contact us via WhatsApp for a next-flight-out quote. We have shipped individual modules as hand-carry cargo on commercial flights when the production loss justified the freight premium. We understand that a $400 module protecting a $40,000/hour production line is not a cost discussion — it is a logistics execution problem.
