Honeywell TC-ODK161 Discrete Relay Output Module – Field-Proven Switching Architecture for Experion PKS DCS

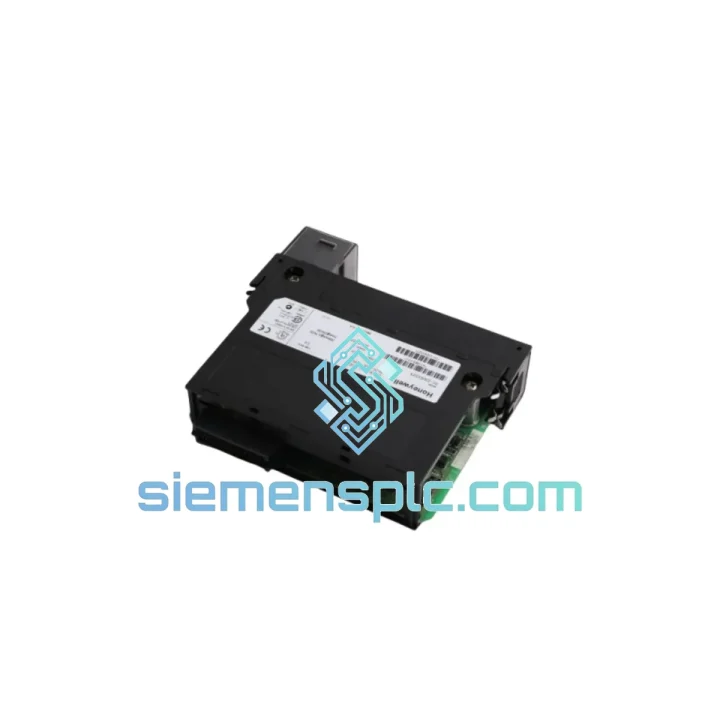

The TC-ODK161 is a 16-channel dry-contact relay output module designed for deployment within Honeywell’s Experion PKS (Process Knowledge System) Distributed Control System. It occupies a single card slot in the C300 I/O subsystem and delivers galvanically isolated switching capability to field actuators, motor starters, solenoid valves, and alarm annunciators. Its architecture is optimized for deterministic output response in continuous-process environments where contact bounce, load transients, and EMI from adjacent power equipment are persistent engineering concerns.

Unlike solid-state output modules that rely on triac or MOSFET switching, the TC-ODK161 uses electromechanical relay contacts. This design choice provides true galvanic isolation between the DCS backplane logic and the field-side load circuit, eliminating leakage current paths that can cause spurious actuation in low-impedance solenoid circuits. Each relay channel operates independently, allowing mixed AC and DC load configurations on the same module without cross-channel interference.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The TC-ODK161’s internal architecture separates into three functional layers: the backplane communication interface, the relay drive logic, and the field-side contact array.

Backplane Communication Interface: The module communicates with the C300 controller via Honeywell’s proprietary I/O Link serial bus embedded in the C300 carrier assembly. Output commands are transmitted as time-stamped data frames. The module’s onboard microcontroller decodes these frames and maps each bit to its corresponding relay driver circuit. This architecture ensures that output state changes are executed within the controller’s configured scan cycle, maintaining deterministic response times consistent with the overall Experion PKS control loop performance.

Relay Drive Logic and EMC Design: Each relay coil is driven by a dedicated transistor stage with flyback diode suppression. The flyback diode clamps the inductive kickback voltage generated when the relay coil de-energizes, protecting the drive transistor and preventing conducted emissions from propagating back into the module’s logic supply rail. This is a critical design element in environments with high-density relay panels, where simultaneous de-energization of multiple coils can generate voltage spikes exceeding 100 V on an unprotected supply bus.

The module’s PCB layout employs ground plane segmentation to separate the digital logic domain from the relay coil drive domain. This physical separation reduces magnetic coupling between the switching relay coils and the low-level signal traces on the communication interface, contributing to the module’s compliance with IEC 61000-4-8 (power frequency magnetic field immunity) and IEC 61000-4-4 (electrical fast transient/burst immunity).

Contact Architecture: The 16 relay contacts are arranged in a single-pole normally-open (SPST-NO) configuration. This is the standard topology for discrete output modules in process control, where the de-energized (safe) state corresponds to an open contact. In the event of a module power loss or communication fault, all relay contacts return to the open (de-energized) state, providing a fail-safe output behavior consistent with IEC 61511 process safety principles for non-SIL-rated output circuits.

Field Termination: The TC-ODK161 interfaces with the field wiring through a dedicated Field Termination Assembly (FTA). The FTA provides screw-terminal or marshalling-panel connectivity and physically separates the module from the field cable entry point, allowing the module to be replaced online without disturbing field wiring. This architecture is a fundamental feature of the Experion PKS I/O design philosophy and directly supports hot-swap maintenance procedures.

System Integration Benefits

• Deterministic output execution: Output state changes are processed within the C300 controller’s configured scan period, ensuring that relay switching events are synchronized with the control algorithm execution cycle and not subject to asynchronous delays.
• Online module replacement: The FTA-based wiring architecture allows the TC-ODK161 to be removed and replaced while the system remains in service. The C300 controller detects the module removal, holds the last output state in the FTA relay drivers (where supported), and resumes normal operation upon module reinsertion and re-initialization.
• Integrated diagnostics: The module reports its operational status, communication health, and relay coil drive status back to the C300 controller via the I/O Link. These diagnostics are surfaced in the Experion PKS Station display and can be configured to generate process alarms, enabling maintenance personnel to identify a failing relay driver before it causes a process upset.
• Mixed load compatibility: Independent channel isolation allows each of the 16 relay contacts to switch a different voltage and current class of load simultaneously. A single module can simultaneously control 24 V DC solenoids, 120 V AC motor starters, and 230 V AC alarm sirens without requiring separate modules for each load class.
• Reduced cabinet footprint: Sixteen output points in a single card slot reduces the number of I/O carriers, power supplies, and FTAs required for a given output point count, directly reducing panel space, wiring labor, and bill-of-materials cost.
• Fail-safe output behavior: All relay contacts default to the open (de-energized) state on module power loss or communication timeout. This behavior is consistent with the de-energize-to-trip (DTT) convention used in process safety design and simplifies the safety analysis for non-SIL output circuits.
• Seamless Experion PKS configuration: The TC-ODK161 is natively recognized by Experion PKS Control Builder. No custom I/O driver development is required. The module’s channel parameters, including output forcing, inhibit, and diagnostic alarm configuration, are accessible through the standard Control Builder I/O configuration interface.
• Long-term platform availability: As a standard C300 I/O module, the TC-ODK161 is supported across multiple Experion PKS software releases (R400 through current). Spare module procurement and firmware compatibility are managed within Honeywell’s standard product lifecycle framework, reducing long-term obsolescence risk for plant asset managers.
