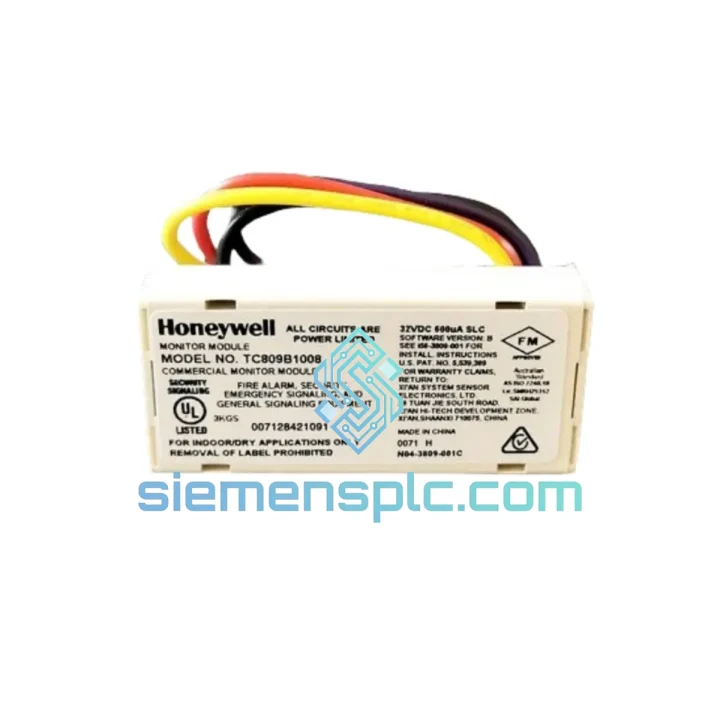

Honeywell TC809B1008 JSM-TC809B1008C Fire Alarm Module – Fire Alarm Series

Honeywell TC809B1008 JSM-TC809B1008C Addressable Mini Monitor Module: Supervisory Node Architecture in Life-Safety Loop Design

The TC809B1008 (OEM cross-reference: JSM-TC809B1008C) is a single-address, loop-powered mini monitor module engineered for integration into Honeywell addressable fire alarm control panel (FACP) systems. Its primary function is to extend the addressable SLC (Signaling Line Circuit) to conventional, dry-contact initiating devices — including waterflow switches, tamper switches, manual pull stations, and heat detectors — converting their binary contact state into a digitally addressable supervisory or alarm signal on the panel bus.

Unlike passive wiring terminations, the TC809B1008 actively participates in the SLC polling cycle. The FACP interrogates each module address at defined intervals (typically every 5–10 seconds depending on loop configuration), and the module responds with its current contact state, internal diagnostic status, and loop integrity data. This architecture eliminates the ambiguity of conventional zone wiring and provides per-device fault isolation at the panel level.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The TC809B1008 implements a loop-powered ASIC-based communication front-end that handles SLC protocol encoding and decoding without requiring a local power supply rail. The module draws operating power directly from the SLC loop voltage (15–32 VDC), which simplifies installation in retrofit scenarios where auxiliary 24 VDC wiring is not available at the device location.

Input Supervision Architecture: The monitored IDC input uses an end-of-line (EOL) resistor network to establish three distinct impedance states: normal (resistor in circuit), open-circuit fault (wire break), and short-circuit fault. The module’s onboard comparator continuously evaluates the input impedance against calibrated thresholds and encodes the result into the SLC response frame. This three-state detection eliminates the single-point failure mode inherent in unsupervised dry-contact wiring.

EMC Design: The module PCB incorporates transient voltage suppression (TVS) diodes on all external terminals, providing protection against inductive switching transients from relay coils and solenoid valves commonly found in industrial and commercial fire alarm installations. The SLC interface includes common-mode filtering to reject ground-loop noise on long cable runs, maintaining signal integrity on loops exceeding 1,500 m of 18 AWG twisted-pair wiring.

Address Encoding: The rotary DIP switch address mechanism provides a deterministic, tool-free addressing method that eliminates firmware-based address assignment errors. Each address position corresponds to a unique binary code read by the module’s microcontroller at power-up and stored in non-volatile memory, ensuring address retention through power cycling without battery backup.

LED Diagnostic Logic: The bi-color LED operates under direct FACP command via the SLC protocol, allowing the panel to force the LED into steady red (alarm), flashing green (normal poll acknowledgment), or off states. This remote LED control capability supports walk-test procedures without requiring a technician at the panel, reducing commissioning labor on large installations.

System Integration Benefits

• Deterministic Polling Response: The module responds to each SLC poll within the protocol-defined window, contributing to the panel’s ability to maintain a deterministic loop scan time regardless of the number of devices on the circuit.
• Per-Device Fault Isolation: Open and short faults on the supervised IDC are reported as device-specific trouble events at the panel, enabling maintenance personnel to identify the exact wiring segment at fault without loop-wide isolation.
• Reduced Wiring Infrastructure: By converting conventional dry-contact devices to addressable points, the TC809B1008 eliminates the need for dedicated conventional zone wiring back to the panel, reducing conduit fill and termination labor on large-scale retrofits.
• Class A Loop Compatibility: The module supports Class A (Style 6/7) SLC wiring configurations, providing redundant communication paths that maintain supervisory coverage even when a single wire break occurs on the loop.
• Diagnostic Transparency: All module status data — contact state, wiring integrity, and internal diagnostic flags — is transmitted to the FACP in each poll response, providing continuous system health visibility without manual inspection.
• Low Loop Loading: With a quiescent current draw of ≤ 375 µA, the module imposes minimal load on the SLC power budget, allowing higher device counts per loop compared to modules with higher standby consumption.
• Flexible Input Polarity: Configurable for normally open (NO) or normally closed (NC) contact inputs, the module accommodates the full range of conventional initiating device types — waterflow switches (NO), tamper switches (NC), manual pull stations (NO) — without requiring separate module variants.
• Walk-Test Support: The FACP can activate the module’s LED remotely during walk-test sequences, confirming physical device location and wiring continuity without requiring panel access, which reduces commissioning time on multi-floor installations.

Quality Assurance & Global Logistics

Every TC809B1008 / JSM-TC809B1008C unit dispatched from our Xiamen, China facility is sourced through authenticated supply channels and subjected to a structured pre-shipment inspection protocol. Physical inspection covers label integrity, housing condition, terminal block seating, and PCB visible defect screening. Serial numbers and date codes are cross-referenced against procurement documentation prior to packaging.

Units are packaged in anti-static, moisture-barrier bags with desiccant inserts, placed in rigid corrugated cartons with foam cushioning rated for international air freight handling. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared for each shipment. HS code classification support is provided for customs clearance in destination countries.

Standard dispatch lead time for in-stock units is 1–3 business days from payment confirmation. Expedited same-day dispatch is available for orders confirmed before 14:00 CST. Carrier options include DHL Express, FedEx International Priority, UPS Worldwide Express, and EMS. Bulk orders (10+ units) qualify for sea freight consolidation with full tracking.

A 12-month seller warranty covers manufacturing defects and units not performing to published specifications. Warranty claims are processed within 5 business days of receipt of the returned unit. Replacement units are dispatched via express courier at no additional freight cost to the buyer.
