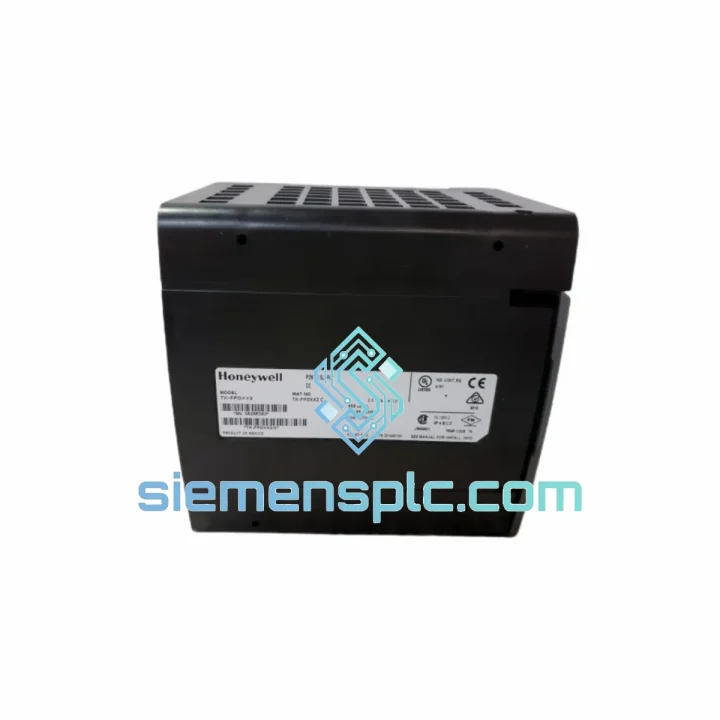

Honeywell TK-FPDXX2 Redundant Power Supply Module – Experion PKS

Honeywell TK-FPDXX2 — Dual-Feed Redundant Power Distribution for Experion PKS Control Architecture

In continuous-process industries, the 24 VDC power rail feeding I/O modules and field instruments is not a peripheral concern — it is the circulatory system of the entire control loop. A single-point failure on that rail, without a validated redundancy mechanism, translates directly into loss of process visibility, actuator response, and ultimately, safe operating state. The Honeywell TK-FPDXX2 is engineered to close that vulnerability within the Experion PKS (Process Knowledge System) distributed control architecture.

The TK-FPDXX2 belongs to Honeywell’s TK-FPD power distribution family, purpose-built for the Experion PKS platform deployed across oil & gas, petrochemical, power generation, and advanced manufacturing facilities worldwide. Unlike generic industrial power supplies, this module integrates directly into the Experion PKS chassis backplane, participates in the system’s diagnostic fabric, and provides hot-standby redundancy with automatic, bumpless failover — no operator action, no control loop interruption, no process upset.

The module accepts dual AC or DC input feeds from independent upstream sources. Internal diode-OR circuitry arbitrates between the two feeds continuously, with the active feed supplying the 24 VDC output bus and the standby feed held in a pre-charged ready state. Switchover time upon primary feed loss is measured in microseconds — well below the response threshold of any downstream I/O module or field device. This architecture satisfies the power redundancy requirements of IEC 61511 SIL-rated safety instrumented systems and aligns with ISA-99 / IEC 62443 cybersecurity-adjacent availability requirements for critical infrastructure.

Real-time stock availability and RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The TK-FPDXX2’s internal architecture reflects the design philosophy of a system where power availability is treated as a deterministic control variable, not a background utility function.

Diode-OR Redundancy Arbitration: The module employs a diode-OR (or equivalent MOSFET-based low-drop equivalent) topology at the output stage. Both input feeds are rectified and presented to the output bus simultaneously. The higher-voltage feed dominates naturally; when the primary feed drops below the secondary, the secondary assumes load without any switching transient. This passive arbitration eliminates the need for active switchover logic, removing a potential failure mode from the redundancy mechanism itself.

EMC Hardening: Industrial DCS cabinets are electromagnetically hostile environments. Variable-frequency drives, contactors, and high-current switching loads generate conducted and radiated interference across the 150 kHz–30 MHz spectrum. The TK-FPDXX2 incorporates multi-stage LC filtering on both input feeds, transient voltage suppression (TVS) diodes rated for IEC 61000-4-5 Level 4 surge immunity (4 kV line-to-earth), and common-mode chokes to attenuate differential-mode noise. The result is a clean, stable 24 VDC rail even in cabinets with significant electromagnetic loading.

Thermal Management: Continuous 24/7 operation in sealed or poorly ventilated enclosures demands conservative thermal derating. The TK-FPDXX2’s power stage components are selected for operation at junction temperatures well below their rated maximums at full load and 60 °C ambient, extending MTBF beyond the values achievable with commercially-rated components. Convection-optimized PCB layout ensures heat is conducted away from critical components without reliance on forced-air cooling.

Backplane Diagnostic Integration: Unlike standalone power supplies, the TK-FPDXX2 communicates fault status — feed loss, output undervoltage, module health — directly to the Experion PKS system bus. This data surfaces in Experion Station operator displays and historian logs, enabling maintenance teams to detect degraded redundancy (one feed lost, one remaining) before a second failure creates a process upset. This is the distinction between a power supply and a power management module.

System Integration Benefits

• Deterministic Power Availability: Bumpless hot-standby switchover ensures the 24 VDC I/O bus remains within ±1 % of nominal during feed transitions, preventing false analog readings or digital I/O state changes that could trigger spurious alarms or interlock actions.
• Native Experion PKS Compatibility: Factory-validated for direct chassis integration — no third-party adapters, no firmware compatibility risks, no deviation from Honeywell’s qualified hardware matrix.
• Diagnostic Transparency: Feed status, output health, and module fault codes are exposed to Experion Station HMI and Honeywell’s Asset Manager, enabling condition-based maintenance rather than time-based replacement cycles.
• SIL Architecture Support: The dual-feed topology contributes to the power subsystem’s PFD (Probability of Failure on Demand) calculation for IEC 61511 SIL 1/2 safety loops, reducing the overall SIL verification burden on the system integrator.
• Reduced Cabinet Footprint: Integrated redundancy within a single module eliminates the need for external redundancy controllers or bypass switches, freeing panel space for additional I/O capacity.
• Hot-Swap Serviceability: The module is designed for replacement under power in maintained systems, minimizing planned maintenance windows and eliminating the need for process shutdown during power supply servicing.
• Alarm Prioritization Support: By eliminating nuisance power-related alarms, the TK-FPDXX2 contributes to alarm rationalization objectives aligned with EEMUA 191 and ISA-18.2 alarm management standards.
• Long-Term Parts Availability: As a current-generation Experion PKS component, the TK-FPDXX2 benefits from Honeywell’s extended product lifecycle commitments, reducing obsolescence risk for long-horizon plant asset management plans.
