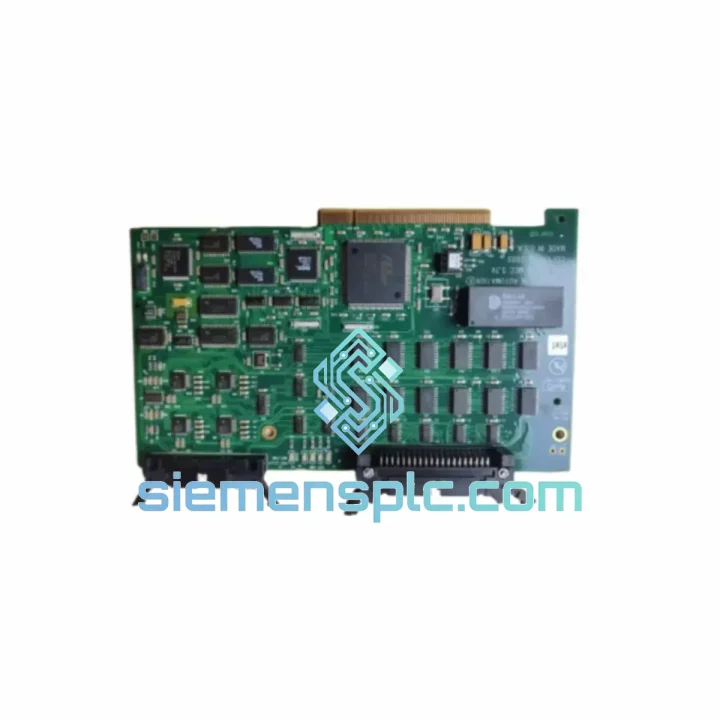

Hypertherm PCI-4 AXIS MCC 3.3V Motion Control Card

Hypertherm PCI-4 AXIS MCC 3.3V — Stop the Bleeding. Get Your Cutting Line Back in 48 Hours.

Your plasma table is down. The motion controller is dead. Every hour that torch sits cold is money walking out the door — scrapped schedules, delayed shipments, angry customers. You don’t need a sales pitch. You need the part, verified, boxed, and moving toward your dock today. That’s exactly what we do.

The Hypertherm PCI-4 AXIS MCC 3.3V is the dedicated 4-axis motion control card at the heart of Hypertherm’s EDGE-series CNC plasma cutting platforms. When this card fails, the machine doesn’t degrade gracefully — it stops. Axis faults lock out the controller, torch positioning becomes undefined, and the Phoenix CNC software throws handshake errors that no amount of rebooting will clear. The fix is a direct card swap, and we stock it ready to ship from Xiamen.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

How do you know the MCC is the culprit and not the servo drive or encoder? Here’s the field triage sequence used on Hypertherm EDGE systems:

Step 1 — Isolate the fault source. Open Phoenix CNC and check the axis fault register. If you see persistent “Axis Communication Lost” or “MCC Handshake Timeout” errors that survive a full power cycle and cable re-seat, the card itself is the prime suspect — not the drive. Servo drive faults typically present with motor-specific error codes tied to a single axis; MCC failure usually kills two or more axes simultaneously or produces erratic multi-axis behavior.

Step 2 — Check the PCI slot voltage rail. Before swapping the card, verify the industrial PC’s 3.3V PCI rail with a multimeter at the slot. A sagging rail (below 3.1V under load) will kill replacement cards too. If the rail is weak, the PC power supply needs attention first.

Step 3 — Document the Phoenix CNC driver version. The PCI-4 AXIS MCC 3.3V requires a matched Phoenix driver. Pull the version from the Phoenix software “About” screen before you remove the failed card. When you install the replacement, confirm the driver version matches — a mismatch will result in the card being detected but axes remaining faulted. In some cases a Phoenix software repair/reinstall is required after the card swap.

Step 4 — ESD discipline during swap. This card is sensitive. Ground yourself to the chassis before touching the card. Remove power completely — do not hot-swap PCI cards in industrial PCs. Seat the card firmly; a partially seated PCI card on a 3.3V slot will produce intermittent axis faults that are extremely difficult to diagnose.

Step 5 — Post-swap axis calibration. After the card is recognized by Phoenix, run the axis homing sequence before attempting any cutting. Verify encoder feedback on all four axes in the Phoenix diagnostic screen. If Z-axis home position has shifted, re-teach the torch height reference before cutting — this is the most common post-replacement error that causes scrap on the first part.

Common fault codes associated with MCC failure on Hypertherm EDGE systems:

• “Motion Card Not Found” — card not seated or PCI slot voltage fault
• “Axis X/Y Following Error” — encoder feedback lost, often MCC-side
• “MCC Communication Error” — driver mismatch or card hardware failure
• “Emergency Stop — Motion Fault” — triggered by MCC watchdog timeout

Reliability in Harsh Conditions

A plasma cutting cell is one of the most electrically hostile environments in industrial manufacturing. High-frequency arc ignition generates broadband EMI that couples into every cable and PCB in the enclosure. Cutting fumes carry conductive particulate. Ambient temperatures in the controller enclosure routinely exceed 45°C during sustained production runs. Vibration from the gantry drive system transmits through the machine frame into the controller cabinet.

The Hypertherm PCI-4 AXIS MCC 3.3V is engineered specifically for this environment. The PCB layout prioritizes signal integrity on the encoder feedback lines — the traces most vulnerable to EMI-induced noise that causes false following errors. The card’s component selection reflects Hypertherm’s industrial-grade design standards: extended-temperature capacitors, conformal coating on production variants, and connector retention designed to resist vibration-induced intermittent contact.

This is not a generic motion control card adapted for plasma use. It is purpose-built for Hypertherm’s CNC architecture, which means the firmware handshake, the axis timing parameters, and the fault response logic are all tuned for the specific demands of plasma cutting motion profiles — rapid acceleration, precise deceleration at cut endpoints, and coordinated multi-axis interpolation for bevel cutting. A generic substitute will not replicate this behavior, and the difference shows up immediately in cut quality and fault frequency.

Every card we ship has been inspected for physical integrity: connector pins, PCB surface condition, component seating, and label authenticity. Cards showing any sign of thermal stress, corrosion, or physical damage are rejected before listing. What ships to you is what we would install ourselves on a customer’s machine.

Global Express Logistics

We operate from Xiamen, China — one of the most logistics-efficient export hubs on the mainland, with direct DHL and FedEx gateway access and daily cut-off times that allow same-day dispatch on orders confirmed before 15:00 CST.

Standard express routing from Xiamen:

• Southeast Asia (SG, MY, TH, VN, ID): DHL/FedEx Express — 2 to 3 business days door-to-door
• Middle East (AE, SA, QA, KW): FedEx International Priority — 3 to 4 business days
• Europe (DE, NL, FR, PL, IT, ES): DHL Express — 3 to 5 business days
• North America (US, CA, MX): FedEx International Priority — 3 to 5 business days
• Australia / New Zealand: DHL Express — 3 to 4 business days
• South America (BR, CL, CO, PE): FedEx Economy or DHL — 5 to 7 business days

Every shipment includes full commercial invoice, packing list, and certificate of origin. For customers in countries with import duty exemptions on industrial automation components, we can structure documentation to support your customs clearance process. HS code 8537.10 applies to most motion control card shipments — confirm with your customs broker for your jurisdiction.

Tracking numbers are issued within 2 hours of dispatch. For urgent shipments, we provide the AWB number directly via WhatsApp so your receiving team can monitor arrival in real time. If your site requires a specific carrier account number for billing, we can ship on your account — just provide the account details at order confirmation.

We have shipped to over 40 countries. Customs holds are rare on properly documented industrial component shipments, but if one occurs, we provide all supplementary documentation required for release — including technical descriptions, material declarations, and end-use statements — within the same business day of your request.
