ICS Triplex T8230 Analog Input Module

ICS Triplex T8230 TMR Analog Input Module — Stop the Clock on Your Downtime

Every minute your safety instrumented system sits offline, the losses compound. A tripped ESD, a failed analog input card, a plant forced into manual override — the T8230 is the card that stands between controlled operation and a full process shutdown. We stock it. We ship it today. From Xiamen to your site, DHL or FedEx, tracked door-to-door.

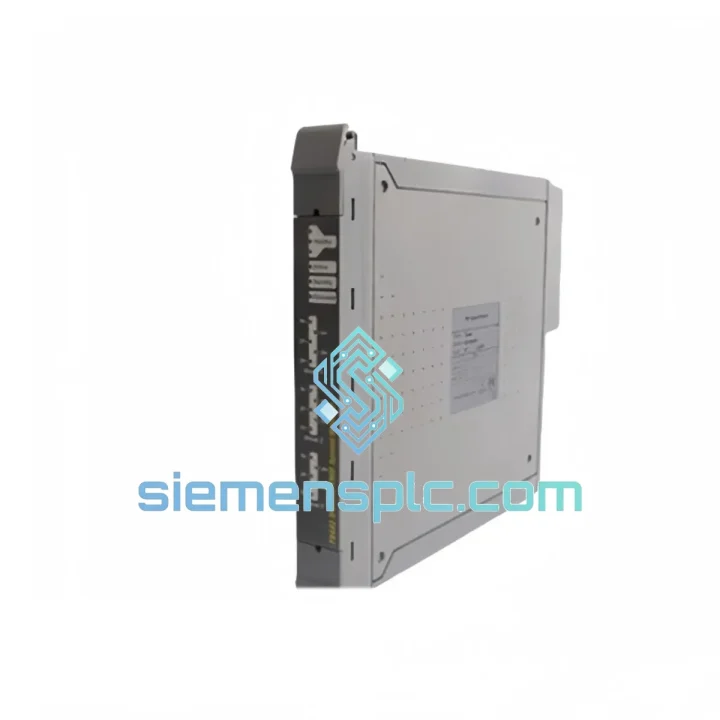

The ICS Triplex T8230 is an 8-channel analog input module built for the Trusted TMR (Triple Modular Redundant) platform. It handles 4–20 mA current loop signals across eight independent channels, feeding process variables into a triple-redundant voting architecture that keeps your SIL 2/3 safety functions alive even when one leg faults. This is not a module you compromise on — and you don’t have to, because we have it on the shelf.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The T8230 fails in predictable ways. Here is what to check before you pull the card — and what to watch when you slot the replacement in.

Fault Code F01 / Channel Fault Annunciation: This is the most common call I get. One or more channels report a fault, the TMR voter flags a discrepancy, and the system demands attention. Nine times out of ten it is not the field transmitter — it is the card. Check the channel LED status on the front panel first. A solid amber on a single channel with the other seven green points directly at an internal A/D converter failure on that channel. Replace the T8230.

Before You Pull the Card:

• Confirm the chassis is in TMR mode and the replacement card will be inserted into the same slot position. The Trusted platform uses slot-based addressing — the T8230 does not have a physical DIP switch for address assignment; the slot number in the chassis defines the I/O address automatically. Do not move it to a different slot without updating your I/O configuration in the Trusted Workbench software.
• Verify firmware revision compatibility. The T8230 must match the firmware baseline of your T8110/T8100 controller. Mismatched firmware between the AI card and the controller can cause the module to fail its self-test on insertion and refuse to go online. Check the label on the card edge for the firmware revision string before ordering a replacement — confirm it matches your site’s baseline.
• The T8230 supports hot-swap under power. You do not need to de-energize the chassis. However, inform the control room before insertion — the TMR voter will briefly operate in 2oo2 mode during the swap window, which reduces fault tolerance. Keep the swap under 60 seconds.

After Insertion:

• Watch the module status LED sequence on power-up: green flash → amber → solid green is normal. If it sticks on amber after 30 seconds, the module has failed its internal self-test. This usually means a firmware mismatch or a hardware fault on the replacement card itself — contact us immediately for a swap.
• In Trusted Workbench, navigate to the I/O module status screen and confirm all 8 channels report “OK” with signal values within expected range. A channel reading 3.8 mA or below on a live loop indicates an open circuit at the field end, not a card fault.
• If the system was in a degraded 2oo3 state before replacement, the TMR voter should automatically restore to 3oo3 operation within one scan cycle after the new card passes self-test. Confirm this in the system diagnostics log.

Common Misdiagnosis: Engineers sometimes replace the T8230 when the actual fault is a failed field barrier or a corroded terminal block on the marshalling cabinet. Before committing to a card swap, measure the loop current at the cabinet terminals with a clamp meter. If you are reading 4–20 mA at the terminals but the card is reporting a fault, the card is the problem. If the loop current is absent or erratic, start at the transmitter.

Reliability in Harsh Conditions

The Trusted TMR platform was designed for environments where failure is not an option — offshore platforms in the North Sea, LNG terminals in the Middle East, refineries running 24/7 in tropical heat. The T8230 reflects that design philosophy at the I/O level.

The card’s conformal coating protects the PCB against humidity and condensation, which matters in coastal industrial sites where relative humidity regularly exceeds 90%. The operating temperature ceiling of 60°C gives adequate headroom for control room environments that run warm, though best practice is to keep the Trusted chassis below 45°C for maximum MTBF. Vibration tolerance meets IEC 60068-2-6 test profiles — the card will not develop intermittent faults from the structural vibration common in compressor buildings or pump stations.

The TMR architecture itself is the primary reliability mechanism. With three independent processing lanes each reading the same 8 analog inputs and a 2oo3 voting scheme, a single lane failure does not interrupt the safety function. The system flags the fault, continues operating, and gives your maintenance team time to schedule a planned replacement — rather than forcing an emergency shutdown. That is the difference between a $500 card swap on a Tuesday afternoon and a $500,000 unplanned outage.

Units we supply are stored in ESD-safe, climate-controlled conditions. Cards are not left on open shelves exposed to dust or temperature cycling. Every unit ships in anti-static packaging with desiccant, double-boxed for international freight.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian Province — one of China’s primary export ports with direct DHL and FedEx gateway access. This is not a drop-ship arrangement. We hold physical stock, we pack it ourselves, and we hand it to the courier the same day you confirm payment.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Malaysia, Thailand): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK): 3–5 business days via DHL Express Worldwide
• North America (USA, Canada): 4–5 business days via FedEx International Priority
• Australia / New Zealand: 3–4 business days via DHL Express

Every shipment includes a commercial invoice, packing list, and certificate of origin. HS code documentation is prepared for customs pre-clearance. For sites with strict import compliance requirements, we can provide additional documentation on request — ECCN classification statements, material safety data, or manufacturer certificates of conformance.

For orders placed before 15:00 CST, same-day dispatch is standard. We send you the AWB number and tracking link within two hours of handover to the courier. You can track the shipment in real time and share the link with your site logistics team.

If your site requires a specific courier account to be billed, we can ship on your DHL or FedEx account number — just provide it at the time of order confirmation.
