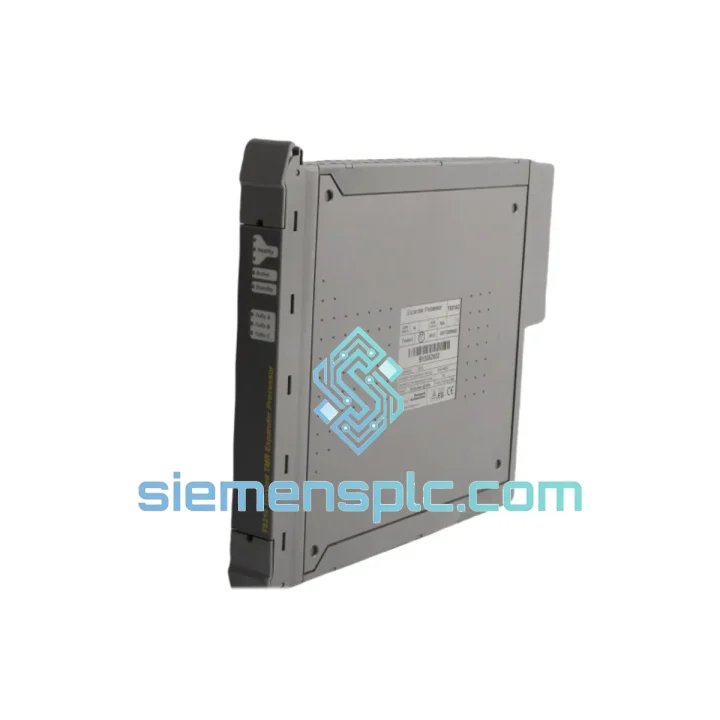

ICS Triplex T8310CX Expander Processor – Triplex TMR

ICS Triplex T8310CX Expander Processor: Fault-Tolerant Control Architecture for Safety-Critical Loops

The ICS Triplex T8310CX is an Expander Processor module engineered for deployment within the Triplex™ Triple Modular Redundancy (TMR) safety control platform. Its primary function is to extend the processing capacity of a TMR chassis by providing an additional computation node that participates in the three-channel voting architecture. In a TMR control loop, three independent processor channels execute identical logic in parallel; the T8310CX serves as one of those channels, contributing its output to a 2-of-3 majority voter circuit that determines the final control action. This arrangement ensures that a single-channel hardware failure neither interrupts process control nor generates a spurious trip — a property that is mathematically quantifiable through IEC 61508 probabilistic failure analysis.

Unlike simplex or duplex architectures where a failed processor forces a system halt or a forced-safe state, the T8310CX’s TMR participation allows the control system to continue operating at full rated performance while the faulted channel is identified, isolated, and replaced online. This characteristic is particularly significant in continuous-process industries — oil and gas, petrochemical, power generation — where unplanned shutdowns carry direct financial and safety consequences measured in tens of thousands of dollars per hour.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The T8310CX’s internal architecture reflects the design discipline required for SIL 3-rated safety instrumented systems. Several hardware-level characteristics distinguish it from general-purpose PLC processor modules:

TMR Backplane Synchronization: The module communicates with its two peer processor channels via the Triplex proprietary backplane bus, which operates on a deterministic token-passing protocol. Each scan cycle, all three channels exchange their computed output values before the voter circuit resolves the final output. The backplane bus is electrically isolated between channels to prevent a single-point fault from propagating across the TMR triad. Bus arbitration logic is implemented in dedicated gate-array hardware rather than firmware, eliminating the possibility of a software defect corrupting the voting mechanism.

EMC and Transient Immunity: Industrial process environments generate significant electromagnetic interference from variable-frequency drives, high-current switching contactors, and RF-emitting field instruments. The T8310CX PCB layout employs ground-plane partitioning to separate analog reference planes from digital switching planes, reducing common-impedance coupling. Decoupling capacitors are placed at the power entry point of each major IC cluster, and the backplane connector pins are arranged to interleave signal lines with ground returns, suppressing differential-mode noise on the bus. The module meets IEC 61000-4-4 (electrical fast transient) at 2 kV and IEC 61000-4-5 (surge) at 1 kV line-to-earth.

Watchdog and Self-Diagnostics: An independent hardware watchdog timer monitors the processor’s execution cycle. If the main CPU fails to service the watchdog within the configured timeout window — typically 50 ms to 200 ms depending on application scan rate — the watchdog asserts a channel-fault signal to the TMR voter, which immediately excludes that channel from the voting calculation. This self-exclusion mechanism is the primary defense against a processor entering an infinite loop or a corrupted execution state without generating an explicit fault code.

Memory Integrity: Program and data memory are protected by hardware parity checking on each read cycle. A single-bit error triggers a correctable-error interrupt; a double-bit error forces a channel reset and fault declaration. This approach aligns with IEC 61508 requirements for memory integrity in safety-related systems and eliminates the class of failures where silent data corruption produces incorrect control outputs.

System Integration Benefits

• Deterministic Scan-Cycle Execution: The T8310CX executes application logic within a fixed, configurable scan period. Jitter in cycle completion time is bounded by the hardware watchdog, ensuring that time-critical safety functions — such as emergency shutdown actuation — respond within the specified reaction time regardless of application logic complexity.
• Online Firmware Upgrade Path: Firmware updates can be applied to individual channels sequentially while the remaining two channels maintain process control. This eliminates the maintenance window previously required for firmware revision changes in simplex or duplex architectures.
• Transparent Fault Diagnostics: The module reports channel health status, voter discrepancy events, and memory parity errors to the Triplex system diagnostic bus in real time. Operators can view per-channel fault codes at the HMI without interrupting the control loop, enabling condition-based maintenance scheduling rather than time-based replacement intervals.
• Backward Compatibility with T8310 Baseline: The T8310CX is form-factor and firmware compatible with the T8310 base processor, allowing incremental capacity expansion within an existing chassis without requiring a full system redesign or re-validation.
• SIL 3 Architectural Constraint Compliance: In a TMR configuration, the T8310CX contributes to meeting the hardware fault tolerance (HFT) requirement of HFT = 2 as defined in IEC 61508-2 Table 3. This allows the overall safety function to tolerate two simultaneous random hardware failures while maintaining the required safe state output.
• Reduced Proof-Test Interval: The continuous self-diagnostics implemented in the T8310CX contribute to a high diagnostic coverage (DC) fraction, which directly reduces the required proof-test interval for the safety instrumented function. For many applications, this extends the proof-test interval from one year to three years or beyond, reducing maintenance labor costs.
• Seamless I/O Module Coordination: The expander processor interfaces with Triplex I/O modules (T8431, T8451 series) via the same TMR backplane, maintaining channel separation through the entire signal path from field sensor to control output. There is no single-point failure mode that can simultaneously corrupt all three I/O channel readings.
• Integration with Rockwell AADvance Migration: For facilities planning a phased migration to the Rockwell Automation AADvance platform, the T8310CX supports coexistence within hybrid architectures during the transition period, protecting the capital investment in existing Triplex chassis infrastructure.

Quality Assurance & Global Logistics

Every ICS Triplex T8310CX unit dispatched from our Xiamen, China facility passes a structured four-stage inspection protocol before packaging. Stage one is a board-level visual examination under magnification for physical damage, solder joint integrity, and counterfeit component markers. Stage two is a powered functional test: the module is installed in a test chassis, powered up, and its self-diagnostic output is verified against the OEM specification. Stage three confirms firmware revision and documents the serial number against our inventory records. Stage four applies anti-static packaging with humidity indicator cards and issues a test report that ships with the unit.

Xiamen’s geographic position — direct access to Xiamen Gaoqi International Airport and the Port of Xiamen — enables same-day handover to DHL Express, FedEx International Priority, and UPS Worldwide Express for urgent shipments. Standard air freight transit times are 3–5 business days to Europe, 4–6 business days to North America, and 2–3 business days to Southeast Asia. Full export documentation — commercial invoice, packing list, certificate of origin, and where applicable, ECCN classification statement — is prepared for every shipment. For large-volume orders, sea freight consolidation via Xiamen port is available with competitive lead times.

All units carry a 12-month warranty covering functional defects from the date of shipment. Warranty claims are processed within 5 business days of receipt of the returned unit, with replacement dispatch or credit note issued accordingly.
