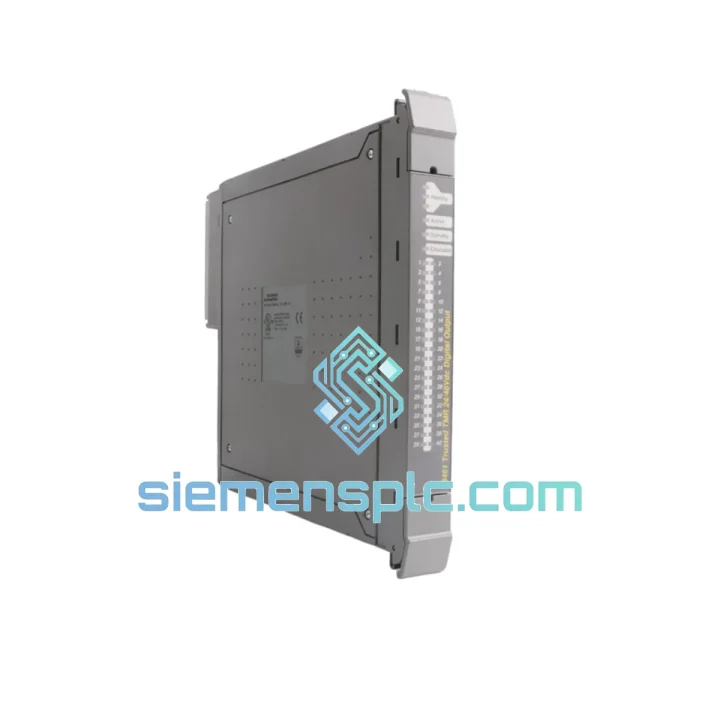

ICS Triplex T8461C Digital Output Module – Trusted Platform

ICS Triplex T8461C Trusted TMR 24/48Vdc Digital Output Module — Final-Element Interface in SIL 3 Safety Architectures

The ICS Triplex T8461C is a 16-channel solid-state digital output module engineered for the Trusted Triple Modular Redundant (TMR) safety platform. It occupies the output layer of the Trusted I/O architecture, translating voted logic commands from the TMR main processor into discrete field-level switching signals for DC-powered actuators — solenoid valves, motor starters, and interposing relay coils operating at 24 Vdc or 48 Vdc. Its role in the control loop is unambiguous: it is the last programmable element before the physical process responds to a safety demand.

In a TMR architecture, three independent processing channels each drive a corresponding output circuit within the T8461C. A 2-out-of-3 (2oo3) voting mechanism determines the physical output state. Any single-channel fault — whether a short circuit, open load, or internal logic deviation — is detected, isolated, and reported without interrupting the voted output. This fault-tolerant behavior is not a software feature; it is enforced at the hardware level through independent output drivers and continuous cross-channel comparison logic embedded in the module’s ASIC design.

The T8461C is rated for 24 Vdc and 48 Vdc field supply voltages, covering the dominant DC actuator voltage classes used in oil and gas wellhead control, compressor emergency shutdown, and turbine trip systems. Its 500 mA per-channel current rating accommodates the majority of solenoid valve coil loads without interposing relays, reducing wiring complexity and eliminating an additional failure mode from the safety loop.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Output Driver Architecture — Three Independent Channels, One Voted Result

Each of the T8461C’s 16 output positions contains three independent solid-state output drivers, one per TMR channel. These drivers are not shared; they are physically separate circuits on separate PCB layers, each powered from its own channel’s isolated supply rail. The 2oo3 voting is implemented in hardware combinatorial logic — not in firmware — which means the voted output state cannot be corrupted by a software fault in any single channel’s processor. This is a fundamental architectural distinction from SIL 2 simplex or dual-redundant output modules, where a firmware bug in the output driver layer can cause a common-cause failure.

Per-Channel Diagnostics — Open Load and Short-Circuit Detection

The T8461C continuously monitors each output channel for two primary fault classes: open-load (field wiring break or actuator coil failure) and short-circuit (wiring fault or actuator coil shorted). Detection is performed by measuring the channel’s output current against expected bounds during both the energized and de-energized states. An open-load fault in the de-energized state — the most dangerous undetected failure mode in a safety output — is detected by injecting a low-level diagnostic current pulse that does not actuate the field device but confirms circuit continuity. This technique achieves the >99% diagnostic coverage figure without requiring the output to be exercised to its active state.

EMC Design — Isolation and Filtering at the Field Boundary

Field wiring in process plants carries significant conducted and radiated interference from variable-frequency drives, high-current switching loads, and ground potential differences between marshalling cabinets. The T8461C addresses this through optical isolation at the backplane-to-field boundary, transient voltage suppression (TVS) diodes on each output channel, and common-mode chokes on the field supply input. The result is compliance with EN 61000-4-4 (electrical fast transient, 2 kV) and EN 61000-4-5 (surge, 1 kV line-to-line) without external filtering components — a relevant consideration for installations where marshalling cabinet space is constrained.

Hot-Swap Isolation Logic

When a T8461C is extracted from a live Trusted chassis, the backplane slot’s isolation circuit disconnects the module’s output drivers from the voted output bus before the DIN 41612 connector pins separate. This sequencing — enforced by the connector’s staggered pin lengths and the backplane’s slot isolation ASIC — ensures that the remaining two TMR channels sustain the voted output state during module extraction and reinsertion. The process does not require a safety system bypass or a process shutdown, which is operationally significant in continuous-process facilities where planned maintenance windows are measured in months.

System Integration Benefits

• SIL 3 integrity without architectural redundancy overhead: The T8461C achieves SIL 3 output integrity within a single module slot through TMR voting, eliminating the need for external output voting relays or duplicated I/O racks that would otherwise be required to reach SIL 3 in a 1oo2 architecture.
• Deterministic output response time: Output switching latency from voted command to field actuator is bounded and deterministic, independent of backplane communication load, because the T8461C’s output drivers respond directly to the voted hardware signal rather than polling a shared communication register.
• Per-channel fault transparency to the safety logic solver: Each channel’s diagnostic status — normal, open-load, short-circuit, or channel mismatch — is reported individually to the T8110/T8111 main processor and is accessible via the Trusted workstation software, enabling maintenance personnel to identify the specific failed channel without removing the module.
• No interposing relays required for standard solenoid loads: The 500 mA solid-state sourcing output directly drives the majority of 24 Vdc and 48 Vdc solenoid valve coils used in process safety applications, removing the relay as a failure mode from the SIF and simplifying the PFD calculation.
• Reduced proof test interval burden: The >99% diagnostic coverage means that the fraction of dangerous undetected failures (PFDu) is minimized, allowing longer proof test intervals to be justified in the SIL verification calculation — a direct operational cost reduction for facilities with infrequent maintenance shutdowns.
• DNV GL marine approval for offshore deployment: The T8461C’s type approval covers the environmental stress profiles specific to offshore topsides and FPSO installations, including salt-air corrosion resistance, vibration from deck machinery, and EMC from co-located radio and radar equipment.
• Backward compatibility within the Trusted I/O family: The T8461C is electrically and mechanically compatible with Trusted chassis designed for the T8460 and T8462 output module variants, subject to FTA substitution and safety re-validation, providing a migration path for facilities upgrading from AC-output or relay-output configurations to DC solid-state outputs.
• Integrated field supply monitoring: The module monitors the 24/48 Vdc field supply voltage and reports undervoltage and overvoltage conditions to the main processor, providing early warning of field power supply degradation before it affects actuator performance — a diagnostic capability absent in conventional non-TMR output modules.

Quality Assurance & Global Logistics

Sourcing and Incoming Inspection

Units are sourced from decommissioned plant upgrades, authorized distributor overstock, and verified surplus channels with documented provenance. Every T8461C undergoes a structured 4-stage inspection before dispatch:

1. Visual and Mechanical Inspection: DIN 41612 connector pin condition, PCB surface examination for corrosion or mechanical damage, label legibility, and housing integrity verified against ICS Triplex acceptance criteria.
2. Firmware Revision Verification: Firmware version confirmed against the T8461C compatibility matrix for the target main processor revision. Units with unsupported or unverifiable firmware are quarantined and not offered for sale.
3. Functional Power-On Test: Module energized in a Trusted test chassis. All 16 output channels exercised through their full switching cycle. Diagnostic LED status and backplane communication confirmed. No fault codes permitted at dispatch.
4. Thermal Soak and Final Measurement: 48-hour burn-in at operating temperature. Post-soak per-channel output current measured and recorded. Test report issued with serial number and measurement data.

Documentation Package (available on request): Test report with measurement data, firmware revision record, sourcing traceability certificate, ICS Triplex original product datasheet, TÜV/CE certification copies, and export compliance documentation.

Global Logistics from Xiamen, China

Dispatch is from our Xiamen warehouse, with access to DHL Express, FedEx International Priority, and UPS Worldwide Expedited services. Standard transit times: 2–3 business days to Europe and North America, 1–2 business days to Southeast Asia and the Middle East. All shipments include real-time tracking, commercial invoice, packing list, and certificate of origin. Export classification is confirmed prior to dispatch for destinations subject to dual-use controls. Emergency same-day dispatch is available for confirmed orders received before 14:00 CST.
