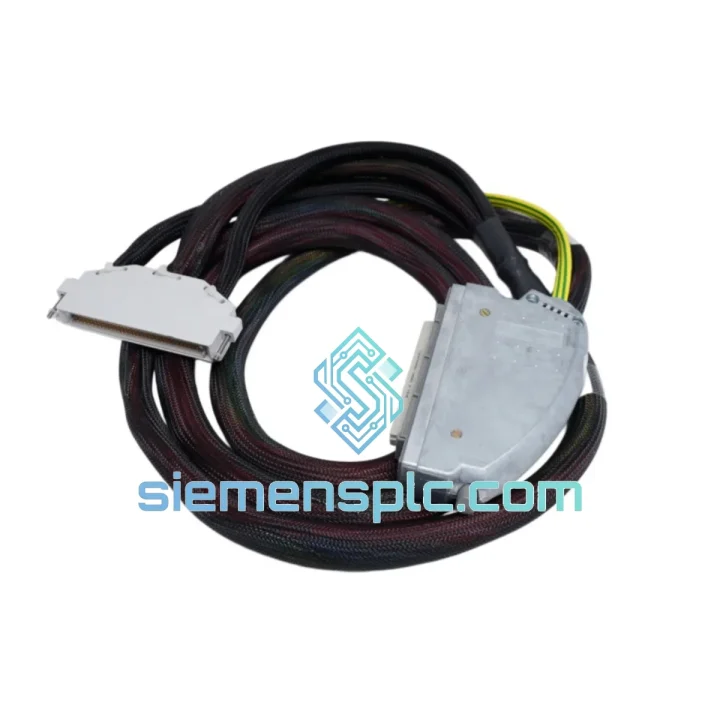

ICS Triplex TC-201-02-8M5 Chassis Fan Power Cable

TC-201-02-8M5 Down? Every Minute of Thermal Failure Costs You More Than the Cable

A failed chassis fan cable in a Triconex TMR safety system is not a maintenance item — it is a ticking clock. Overheating CPUs, nuisance trips, and forced shutdowns in oil & gas or petrochemical plants translate directly into lost production revenue measured in tens of thousands per hour. The ICS Triplex TC-201-02-8M5 is the OEM-specified fan power cable for Triconex Tricon and Trident chassis enclosures. We stock it. We ship it today.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on Triconex platforms, these are the failure patterns and swap pitfalls that actually matter:

Common Fault Indicators

• Chassis over-temperature alarm (OT fault) — First thing to check is fan rotation. A dead fan is often a dead cable, not a dead fan motor. Swap the cable before condemning the fan assembly.
• Intermittent OT trips during summer or high-load periods — Thermal cycling degrades the proprietary connector crimp. Wiggle the cable at the chassis connector while monitoring the fan; if the fan stutters, the cable is the culprit.
• Fan runs but OT alarm persists — Verify the cable is seated fully into the chassis fan header. The TC-201-02 connector has a positive-lock tab; an incomplete seat causes high-resistance contact and voltage drop to the fan motor.
• Fault code F0x14 / F0x15 on Tricon MP — These codes can indicate thermal management anomalies. Cross-reference with chassis fan status in the Triconex diagnostic software before assuming a CPU or MP fault.

Replacement Procedure (Field-Verified)

• Step 1 — Confirm chassis model and slot layout from the nameplate before ordering. Tricon and Trident chassis use the same TC-201-02 connector family but verify the fan header position differs between main and expansion chassis.
• Step 2 — Do NOT power down the TMR system if the plant is live. Triconex TMR architecture allows hot-maintenance on non-voting components including fan cables. Confirm with your site safety plan before proceeding.
• Step 3 — Depress the positive-lock tab on the existing connector before pulling. Forcing the connector without releasing the tab cracks the chassis fan header — a far more expensive repair.
• Step 4 — Route the replacement cable along the original cable tray path. Avoid routing near high-voltage I/O wiring; the fan cable is unshielded at the motor end and susceptible to induced noise in dense panel environments.
• Step 5 — Verify fan operation via Triconex diagnostic software within 5 minutes of reconnection. Confirm OT alarm clears and fan RPM is within spec before closing the chassis door.
• Step 6 — Document the swap in your SIS maintenance log with part number, serial number, and date. Required for IEC 61511 functional safety audit trails.

Configuration Notes

• No firmware update or address configuration required — the TC-201-02-8M5 is a passive power cable with no embedded logic.
• No DIP switch settings apply to this component.
• If replacing in a TSAA enclosure, confirm the fan assembly part number matches the cable’s current rating before installation.

Reliability in Harsh Conditions

Triconex systems are deployed in environments that would destroy consumer-grade electronics in weeks. The TC-201-02-8M5 is built to the same environmental envelope as the chassis it serves:

• Vibration resistance — The cable jacket and connector housing are rated for continuous mechanical vibration consistent with compressor skids and rotating machinery environments. The positive-lock connector prevents vibration-induced disconnection that plagues standard push-fit connectors.
• Temperature range — Rated for operation across the full Triconex chassis ambient range (0°C to 60°C operating). The flame-retardant jacket maintains flexibility at low temperatures, preventing cracking during cold-start maintenance in outdoor or unheated substations.
• Humidity and condensation — The insulation system resists moisture ingress in high-humidity environments including offshore platforms and coastal petrochemical facilities. Connector contacts are gold-plated to prevent oxidation-induced resistance increase over multi-year service intervals.
• EMI environment — Industrial panels running Triconex alongside VFDs, contactors, and high-current bus bars generate significant electromagnetic interference. The TC-201-02-8M5 cable construction minimizes susceptibility to induced noise that could cause erratic fan behavior or false thermal readings.
• Long service life — OEM cables are qualified as part of the Triconex SIL 3 certified system architecture. Using the original part number maintains the integrity of the safety certification and avoids the re-validation burden that comes with non-OEM substitutions.

Global Express Logistics

We operate from Xiamen, China — one of the most logistics-efficient export hubs in Asia. When your plant is down, the supply chain cannot be the bottleneck.

• Same-day dispatch — Orders confirmed before 15:00 CST ship the same business day via DHL Express or FedEx International Priority.
• Transit times — Southeast Asia: 1–2 business days. Middle East / Europe: 2–3 business days. Americas: 3–4 business days. Exact ETAs confirmed at order.
• Export documentation — Commercial invoice, packing list, certificate of origin, and CoC prepared same day. HS code pre-classified for smooth customs clearance.
• Emergency freight — For critical shutdowns, we coordinate direct airport-to-airport freight with local customs brokerage at the destination. Contact us with your required delivery date and we will build the logistics plan around your timeline.
• Tracking — AWB number provided within 2 hours of dispatch. Real-time tracking link sent directly to your procurement or maintenance contact.
• Packaging — Anti-static bag, foam-lined carton, humidity indicator card. Cable connectors protected with end caps to prevent transit damage.
