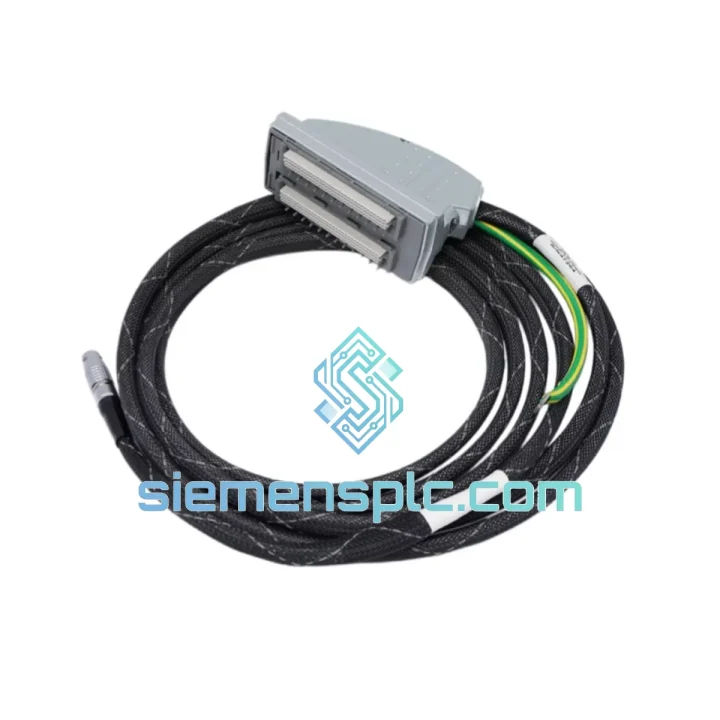

ICS TRIPLEX TC-205-02-10M5 Chassis Power Cable

TC-205-02-10M5 Power Cable: Every Minute of Downtime Costs You — We Ship Today

Your Triplex TMR safety system is down. The chassis power cable has failed. Your SIS is offline, your process is halted, and the clock is running. Every hour of unplanned shutdown in oil & gas or petrochemical operations can cost tens of thousands of dollars in lost production, emergency labor, and regulatory exposure. The ICS TRIPLEX TC-205-02-10M5 is the exact OEM-spec chassis power cable your system needs — and we have it on the shelf, ready to ship from Xiamen today.

This is not a generic cable. The TC-205-02-10M5 is a purpose-engineered interconnect within the ICS TRIPLEX TC-200 series, designed exclusively for Triplex Triple Modular Redundancy (TMR) chassis power distribution. It carries the full DC bus across the three redundant chassis legs, and without it, your entire TMR voting architecture collapses to a single point of failure. There is no workaround. You need the right part, fast.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on TMR safety systems, here is what actually goes wrong with the TC-205-02-10M5 and what you need to know before you swap it out:

Common Failure Signatures:

• Fault Code 0x2A / Power Leg Mismatch: The TMR controller detects voltage imbalance across the three chassis legs. Before condemning the power supply units, check the TC-205-02-10M5 connector seating at both ends. Oxidized or partially unseated pins cause intermittent leg dropout that mimics PSU failure.
• Chassis Leg 2 or Leg 3 Offline: If the system reports one leg as unavailable but the PSU tests healthy, the cable assembly is the first suspect. Perform a continuity check on all conductors — a single open circuit in the power harness will take the entire leg offline.
• Nuisance Trips After Maintenance: If the system trips repeatedly after a scheduled maintenance window, check whether the TC-205-02-10M5 was fully re-seated. The locking connector requires a firm, audible click. A partially engaged connector will pass initial power-on but fail under vibration within hours.
• Insulation Resistance Degradation: In high-humidity environments (offshore platforms, coastal petrochemical sites), the cable jacket can absorb moisture over time. If IR testing shows values below 100 MΩ, replace immediately — do not attempt to dry and reuse.

Replacement Procedure — Field Notes:

• De-energize the chassis and verify zero-voltage on all three legs before disconnecting. TMR does not mean live-swap safe on the power cable level.
• Label the existing cable routing before removal. The TC-205-02-10M5 has a defined bend radius — do not force it into a tighter path than the original installation.
• No dip-switch or address configuration is required for this cable assembly. It is a passive interconnect — plug-and-play replacement with zero firmware interaction.
• After installation, perform a full chassis power-on sequence and verify all three TMR legs report healthy in the system diagnostic screen before returning to service.
• Log the replacement in your SIS maintenance record. IEC 61511 requires documented proof of maintenance actions on safety-critical components.

Reliability in Harsh Conditions

The TC-205-02-10M5 is not a commercial-grade cable assembly. It was designed from the ground up for the environments where TMR safety systems actually operate — and those environments are brutal.

The cable jacket and shielding are rated for continuous operation across a wide industrial temperature range, handling the thermal cycling that occurs when a plant goes through startup and shutdown sequences repeatedly over years of service. In offshore applications, the assembly has been validated against IEC 60068-2-6 vibration profiles — the kind of sustained mechanical stress that destroys standard cable terminations within months. The connector housings are rated to IP54 as installed, providing protection against the condensation and spray that is routine on topsides platforms and in coastal refineries.

EMI shielding is a non-negotiable requirement in any environment where variable-frequency drives, large motor starters, or high-current bus systems operate in proximity to safety instrumented systems. The TC-205-02-10M5 shielding architecture prevents conducted and radiated interference from corrupting the DC power bus, which is critical for maintaining the signal integrity that the TMR voting logic depends on.

Units sourced through siemensplc.com undergo electrical continuity testing, insulation resistance measurement, and connector integrity inspection before dispatch. Refurbished units are bench-tested in a compatible chassis environment. We do not ship untested stock.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the most logistics-efficient export cities on the mainland, with direct DHL and FedEx international gateway access. Here is how your order moves from our shelf to your site:

• Order Confirmed Before 15:00 CST: Same-day pick, pack, and handover to DHL Express or FedEx International Priority.
• Export Documentation: Commercial invoice, packing list, and certificate of origin are prepared in parallel with packing — no delays waiting for paperwork.
• Transit Times: Southeast Asia 1–2 days. Middle East and Europe 2–4 days. Americas 3–5 days. All times are business days from dispatch.
• Customs Classification: The TC-205-02-10M5 ships under HS Code 8544.42 (insulated electric conductors, fitted with connectors). We pre-declare the correct HS code on all shipments to prevent customs holds.
• Tracking: AWB number provided within 2 hours of dispatch. Real-time tracking link sent directly to your procurement contact.
• Emergency Freight: For genuine plant-down situations, we can arrange next-flight-out courier on request. Contact us directly on WhatsApp for fastest response.

We have shipped ICS TRIPLEX components to refineries in Saudi Arabia, power plants in India, offshore platforms in the North Sea, and chemical facilities across Southeast Asia. The logistics process is proven and repeatable.
