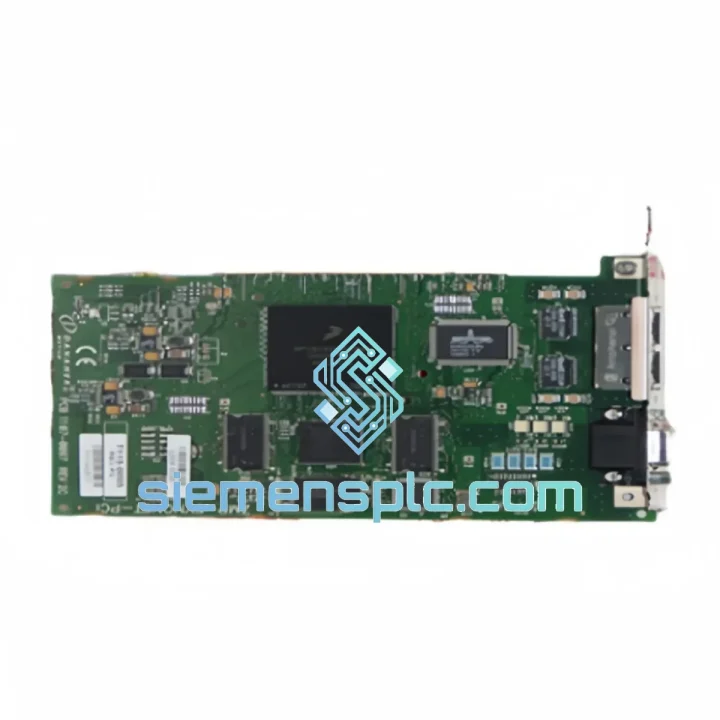

ICS Triplex TC-505-02-2M0 Analog Output Module

TC-505-02-2M0 Down? Every Minute of SIS Downtime Has a Price Tag — We Ship Today

Your safety instrumented system just flagged a fault on the analog output module. The compressor anti-surge loop is open. The fired heater BMS is running blind. Your DCS is screaming channel failure on the TC-505-02-2M0 — and your maintenance window closed two hours ago. This is not a drill. This is the scenario that separates plants that recover in hours from those that lose days of production.

At siemensplc.com, we stock the ICS Triplex TC-505-02-2M0 specifically for this moment. Verified original hardware, pulled from controlled inventory, inspected before it goes in the box, and dispatched from Xiamen via DHL Express or FedEx Priority. Your replacement module can be on-site within 24–72 hours depending on your location. While your team is prepping the chassis for hot-swap, we are already printing the airway bill.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls on Trusted TMR systems teach you one thing fast: the TC-505-02-2M0 fails in predictable patterns. Here is what you are most likely dealing with and how to handle the swap without creating a second fault.

Common Fault Signatures:

• CHFAIL / CH FAULT annunciation on the Trusted workstation — one of the three internal output channels has dropped out of the voted group. The 2oo3 architecture keeps the output alive, but you are now running degraded. Do not ignore this. A second channel failure will cause a spurious trip.
• 4–20 mA output frozen or drifting — typically caused by internal DAC failure or a failed output driver on one leg. The voted output may still read correct at the field device, masking the fault until diagnostics flag it.
• Module LED showing amber or red with no process alarm — internal diagnostic has caught a fault the process loop has not yet seen. Pull the module event log from the Trusted workstation before swapping; it will tell you exactly which channel and what fault code.
• Intermittent output spikes on the 4–20 mA loop — check field wiring first (loop resistance, shield grounding), but if the wiring checks out, the output driver on the module is the next suspect.

Replacement Procedure — Field Notes:

• Step 1 — Confirm chassis revision compatibility. The TC-505-02-2M0 suffix codes matter. The trailing characters after the base part number indicate hardware revision and output configuration. Match the revision code on the faceplate of the failed module to the replacement unit. Mismatched revisions can cause backplane communication errors even if the module physically seats correctly.
• Step 2 — Check firmware version on the Trusted CPU (TC-CU01 or TC-CU02). Older CPU firmware versions may not recognize newer module hardware revisions. If the CPU firmware is below the minimum required for your module revision, the module will seat but report a configuration mismatch fault. Confirm firmware compatibility before the swap, not after.
• Step 3 — Hot-swap sequence. The Trusted TMR chassis supports online module replacement. Loosen the module ejector levers before pulling — do not force the module straight out. Seat the replacement module firmly until both ejector levers click. The system will automatically re-integrate the new module into the voted group within seconds. Watch the Trusted workstation for the CHFAIL alarm to clear.
• Step 4 — Verify output signal post-swap. Use a calibrated loop calibrator on the field terminal to confirm the 4–20 mA output tracks the commanded value across the full range (4 mA at 0%, 20 mA at 100%). Do not rely solely on the DCS faceplate reading — verify at the field terminal.
• Step 5 — No DIP switches or address configuration required. The TC-505-02-2M0 uses automatic slot addressing via the Trusted backplane. The module reads its slot position from the chassis and self-configures. There are no physical DIP switches or jumpers to set on this module — if someone tells you otherwise, they are thinking of a different platform.
• Step 6 — Log the event. Record the failed module’s serial number, slot position, fault code, and replacement date in your SIS maintenance log. IEC 61511 requires documented proof testing and maintenance records for SIL 3 loops. This swap counts as a maintenance intervention and must be logged.

Reliability in Harsh Conditions

The Trusted TMR platform was not designed for climate-controlled server rooms. It was built for offshore topsides, desert gas plants, and tropical petrochemical complexes where ambient conditions routinely exceed what most industrial electronics can tolerate. The TC-505-02-2M0 reflects that design philosophy at the component level.

The module’s internal PCB uses conformal coating across all board surfaces, providing a moisture barrier that resists condensation in high-humidity environments — a critical feature for coastal and offshore installations where salt-laden air accelerates corrosion on unprotected boards. The output driver circuitry is rated for continuous operation across the full 0°C to +60°C ambient range without derating, meaning the module delivers full specified accuracy at the top of its thermal envelope, not just at 25°C lab conditions.

Vibration resistance is addressed through the module’s mechanical design: the plug-in card uses a guided rail system with positive backplane engagement, preventing the micro-fretting contact failures that plague modules in high-vibration environments like compressor buildings and pump stations. The ejector lever locking mechanism provides a positive retention force that keeps the module seated under continuous vibration loads.

The TMR architecture itself is the ultimate reliability feature. With three independent output channels voting 2oo3, a single channel failure — whether caused by thermal stress, vibration fatigue, or component aging — does not interrupt the output signal. The system continues to deliver the correct 4–20 mA command to the field device while simultaneously annunciating the fault, giving maintenance teams time to plan a controlled replacement rather than responding to an emergency trip.

Units supplied by siemensplc.com are stored in a temperature and humidity-controlled warehouse environment. Each module is individually bagged in anti-static ESD packaging with desiccant, preventing moisture ingress during transit and storage. Modules are not bulk-stacked — they are individually cushioned to prevent mechanical stress during shipping.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the most logistics-connected cities on the southeast coast, with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express services operating daily international flights. This is not a coincidence; it is why we operate from here.

Standard dispatch timeline from order confirmation to airway bill generation is same-day for orders confirmed before 14:00 CST. For urgent orders flagged via WhatsApp or email, we prioritize picking and packing to ensure the module leaves on the next available flight. DHL Express transit times from Xiamen to major industrial hubs: Singapore 1–2 days, UAE/Saudi Arabia 2–3 days, Europe 2–4 days, North America 3–5 days, Australia 2–3 days.

All shipments include full commercial invoice documentation with accurate HS code classification (HS 8537.10 for programmable controllers and associated modules), enabling smooth customs clearance in most jurisdictions. For destinations with specific import requirements — including SABER certification for Saudi Arabia, CE documentation for EU, or country-of-origin certificates — contact us at the time of order and we will prepare the required documentation package.

Tracking numbers are provided via email and WhatsApp immediately upon dispatch. For critical plant shutdowns where the module arrival time directly impacts restart decisions, we provide proactive flight tracking updates so your operations team can plan accordingly.
