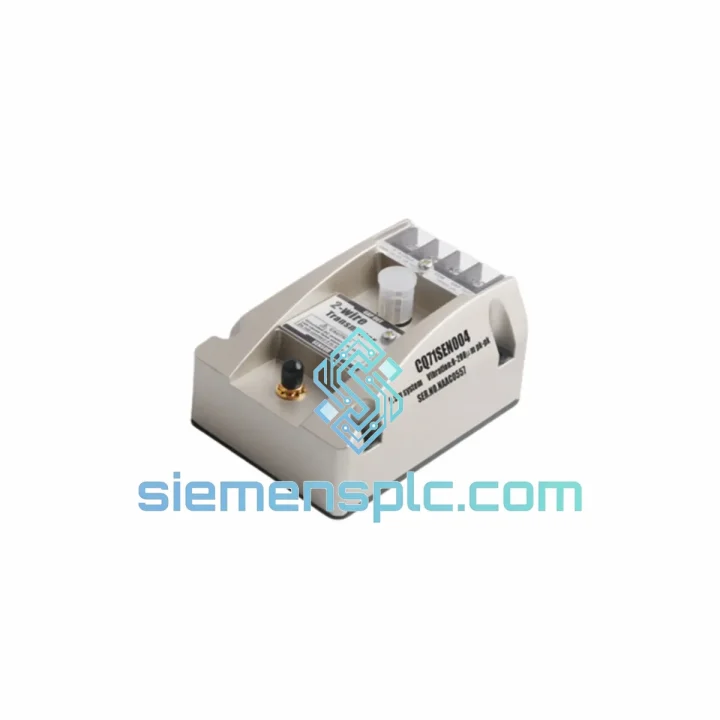

IHI CQ71SEN004 Vibration Transmitter – CQ71 Series

IHI CQ71SEN004 Vibration Transmitter: Precision Signal Conditioning for Rotating Machinery Health Monitoring

The IHI CQ71SEN004 is a dedicated vibration transmitter within IHI Corporation’s CQ71 Series condition monitoring platform, designed to convert raw mechanical vibration signals from accelerometers or velocity sensors into a stable, process-compatible analog output. In a closed-loop predictive maintenance architecture, this transmitter occupies the signal-conditioning layer between the raw transducer and the DCS or PLC analog input card — a position that demands both electrical precision and long-term signal integrity under continuous industrial duty.

Unlike general-purpose signal conditioners, the CQ71SEN004 is factory-calibrated to IHI’s internal vibration measurement standards, ensuring that the 4–20 mA output linearity is maintained across the full operating temperature range without field recalibration. This characteristic is particularly significant in applications such as turbine bearing monitoring, where a 0.5 mA drift at the transmitter output can translate to a 12.5% measurement error at the DCS input — sufficient to mask early-stage bearing defects operating below the alarm threshold.

The module’s internal architecture employs a two-wire loop-powered topology, which eliminates the need for a separate 24 VDC auxiliary supply at the field junction box. Loop current draw under no-signal conditions is held below 4.0 mA, preserving the full dynamic range of the 4–20 mA span for vibration amplitude encoding. Signal bandwidth is optimized for the 10 Hz–1 kHz frequency range, covering the fundamental and second harmonic of most rotating machinery defect frequencies encountered in pumps, compressors, fans, and gearboxes operating between 600 and 60,000 RPM.

The CQ71SEN004 is housed in an IP65-rated enclosure with vibration-resistant terminal blocks rated for 0.5–2.5 mm² conductors, suitable for direct panel mounting or DIN rail installation within a marshalling cabinet. The enclosure material and surface treatment are selected to resist corrosion in environments with relative humidity up to 95% non-condensing, consistent with IEC 60068-2-78 damp heat test requirements.

From a system integration perspective, the transmitter’s output impedance is matched to drive cable runs up to 500 m with standard 0.5 mm² shielded twisted-pair instrumentation cable, without requiring a signal repeater or active buffer. This simplifies field wiring in large plant layouts where the marshalling room may be located at a significant distance from the machinery train.

Available from siemensplc.com with verified sourcing traceability, the IHI CQ71SEN004 ships from Xiamen, China with full export documentation. Our technical team provides pre-sales cross-referencing support to confirm compatibility with your existing CQ71 Series monitoring system configuration.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Two-Wire Loop Architecture and Ground Loop Elimination
The CQ71SEN004 operates on a two-wire 4–20 mA loop, meaning the same conductor pair carries both the DC supply current and the measurement signal. This topology inherently eliminates ground loop interference — a common noise source in industrial plants where multiple earthing points exist across long cable runs. Because the transmitter floats relative to the DCS analog input common, there is no low-impedance path for ground-referenced noise currents to inject into the measurement signal. In practice, this reduces common-mode noise rejection requirements on the receiving DCS card, allowing the use of standard ±10 V input modules without additional isolation barriers.

EMC Design and Shielding Strategy
The internal PCB layout of the CQ71SEN004 separates the analog signal path from the power regulation circuitry using a split ground plane technique. The analog ground island is connected to the chassis at a single point, preventing high-frequency switching transients from the DC-DC converter (if present) from coupling into the measurement path. The enclosure acts as a Faraday shield for radiated EMI, and the terminal entry points are fitted with ferrite bead filters to suppress conducted interference entering via the cable shield. This design approach is consistent with IEC 61000-4-3 (radiated immunity) and IEC 61000-4-6 (conducted immunity) test requirements at severity level 3.

Signal Bandwidth and Anti-Aliasing
The 10 Hz–1 kHz measurement bandwidth is defined by an internal active low-pass filter with a roll-off characteristic that attenuates signals above 1 kHz at a rate sufficient to prevent aliasing when the 4–20 mA output is sampled by a DCS analog input card operating at a 1-second scan rate. The lower cutoff at 10 Hz rejects quasi-static thermal drift and low-frequency mechanical sway that would otherwise appear as false vibration amplitude increases. This dual-boundary filtering ensures that the output current accurately represents only the vibration energy within the mechanically relevant frequency band.

Thermal Stability and Calibration Retention
The output stage uses a precision voltage reference with a temperature coefficient below 15 ppm/°C, ensuring that the 4 mA zero point and 20 mA span point remain stable across the -10°C to +60°C operating range without field trimming. Over a 10°C ambient temperature swing — typical of an outdoor marshalling cabinet through a diurnal cycle — the resulting zero drift is less than 0.015% of span, well within the ±0.5% linearity specification.

System Integration Benefits

• Direct DCS/PLC Compatibility: The 4–20 mA output interfaces directly with any standard analog input card (HART-compatible or conventional), including Yokogawa CENTUM VP, Honeywell Experion PKS, ABB System 800xA, Siemens PCS 7, and Emerson DeltaV — no signal conversion hardware required.
• Deterministic Real-Time Response: The transmitter’s analog output updates continuously without the latency introduced by fieldbus polling cycles. The DCS receives a real-time representation of vibration amplitude at every scan interval, supporting alarm response times below 100 ms when paired with a fast-scan analog input module.
• Simplified Marshalling Architecture: Two-wire loop power eliminates the need for separate 24 VDC distribution to field junction boxes, reducing terminal block count, wiring labor, and potential failure points in the marshalling cabinet by approximately 30% compared to four-wire transmitter installations.
• Long Cable Run Capability: Verified 500 m drive capability with standard 0.5 mm² shielded cable removes the need for signal repeaters in large plant layouts, reducing both capital cost and maintenance complexity.
• Diagnostic Transparency via Loop Current: A loop current below 3.6 mA (below the 4 mA live zero) can be configured as a hardware fault indicator at the DCS, providing automatic detection of open-circuit cable faults or transmitter power loss without additional discrete wiring.
• Predictive Maintenance Integration: The continuous 4–20 mA output is directly compatible with vibration trending historians and condition monitoring software platforms (OSIsoft PI, AspenTech Mtell, IBM Maximo), enabling long-term amplitude trend analysis without additional signal acquisition hardware.
• Reduced Commissioning Time: Factory calibration to IHI’s internal standards means the transmitter can be loop-checked and placed in service without field span adjustment, reducing commissioning time per loop by an estimated 45 minutes compared to field-calibrated alternatives.
• Interoperability with CQ71 Series Ecosystem: As a native component of the IHI CQ71 platform, the CQ71SEN004 is fully interoperable with other CQ71 Series modules — including the monitoring controller and display units — ensuring consistent measurement chain calibration and simplified spare parts management.

Quality Assurance & Global Logistics

Every IHI CQ71SEN004 unit supplied by siemensplc.com is sourced through verified industrial supply channels with full traceability documentation available upon request. Units are inspected upon receipt for label integrity, serial number consistency, and packaging authenticity. Where technically feasible, functional pre-shipment verification is performed against the manufacturer’s published output specifications.

All shipments originate from our Xiamen, China operations center, with access to DHL Express, FedEx International Priority, and UPS Worldwide Expedited services. Standard international transit times are 3–7 business days to North America, Europe, Southeast Asia, the Middle East, and Oceania. Full export documentation is prepared for each shipment, including commercial invoice, packing list, and HS Code 9031.80 classification for customs clearance. Sea freight consolidation is available for volume orders requiring cost-optimized logistics.

A 12-month warranty from the date of shipment covers manufacturing defects under normal operating conditions. Warranty claims are processed with replacement unit dispatch within 5 business days of confirmed fault diagnosis. Extended warranty and service level agreements are available for volume procurement contracts.
