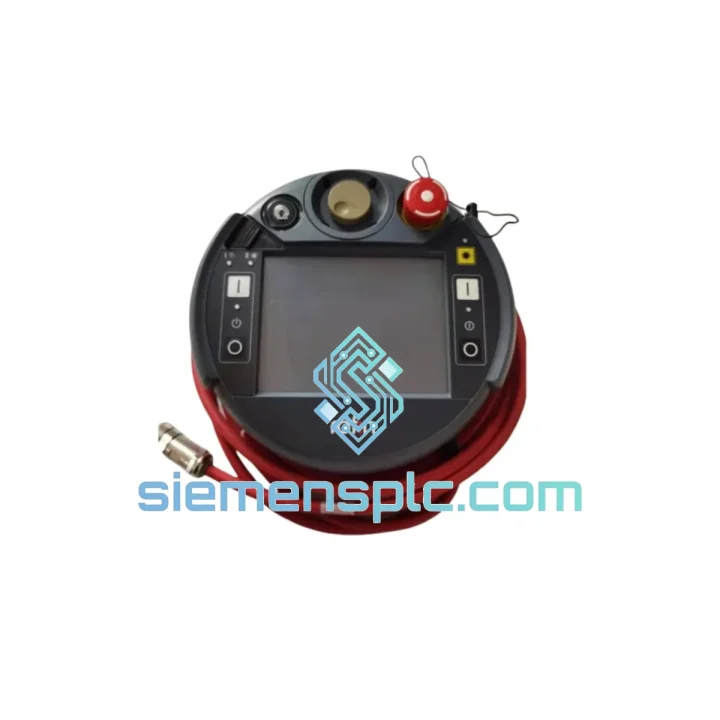

KEBA C50R 73810/06 Teach Pendant – KeMotion KePlast

KEBA C50R 73810/06 – Operator Interface Node in Safety-Rated Motion Control Loops

The KEBA C50R (order reference 73810/06) is a portable hand communicator — commonly designated a teach pendant — purpose-built for KEBA AG’s KeMotion robot controller platform and KePlast injection-molding control architecture. Within a closed-loop motion control system, the C50R occupies the human-machine interface layer between the operator and the servo drive stack: it transmits parameterization commands, jog-mode motion requests, and diagnostic queries over a dedicated Ethernet segment while simultaneously maintaining a hardwired safety channel that operates independently of the data network. This dual-path architecture is not incidental; it is the structural basis for achieving Performance Level d (PLd) per EN ISO 13849-1 on the enabling and emergency-stop functions without relying on software arbitration.

The pendant’s 3-position enabling switch generates a hardware signal routed through a safety relay module inside the controller cabinet. Position 1 (released) and Position 3 (fully depressed) both de-energize the relay, cutting the drive enable line. Only Position 2 (mid-travel) sustains the enable signal. This behavior is mechanically enforced — no firmware path can override it. The emergency stop button is wired in series with the cabinet E-stop loop per IEC 60204-1 Section 9.2.5.4, meaning a pendant E-stop event propagates to the entire cell without software mediation. For procurement engineers specifying safety-rated HMI peripherals, this distinction between software-supervised and hardwired safety channels is the primary qualification criterion.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The C50R’s internal architecture separates two signal domains that many lower-grade pendants conflate: the data domain and the safety domain. The data domain carries HMI application traffic — screen rendering commands, parameter write requests, jog velocity setpoints, and diagnostic read-backs — over the Ethernet link. This path is subject to normal TCP/IP latency and is supervised by the KeMotion controller’s watchdog timer. If the Ethernet link drops for longer than the configured timeout (typically 100–500 ms depending on application), the controller transitions to a safe state and disables drive outputs.

The safety domain, by contrast, uses discrete hardwired conductors within the pendant cable. The enabling switch contacts and E-stop contacts are physically separate from the Ethernet pairs. This means electromagnetic interference on the data conductors — from variable-frequency drives, welding equipment, or high-current bus bars in the same cable tray — cannot corrupt the safety signal state. The pendant cable is shielded with a drain wire bonded to the cabinet chassis at the controller end only (single-point grounding), which suppresses common-mode noise without creating ground loops.

The color TFT display is driven by an embedded processor running KEBA’s HMI runtime. Screen refresh and touch input processing occur locally on the pendant, reducing the bandwidth demand on the Ethernet link to parameter transactions and status polling rather than pixel-level rendering. This architecture keeps network utilization low even during intensive jog sessions, which is relevant in multi-pendant or multi-device network topologies where bandwidth contention could otherwise introduce latency into safety-relevant acknowledgment cycles.

The IP54 enclosure uses a gasket-sealed front bezel and sealed cable entry gland. The housing material is impact-resistant ABS/PC blend, selected for its balance of rigidity and resistance to the hydraulic oils and mold-release agents common in KePlast injection-molding environments. The touchscreen surface is chemically hardened glass, rated for repeated cleaning with isopropyl alcohol — a standard requirement in food-grade and pharmaceutical molding facilities.

System Integration Benefits

• Deterministic Safety Response: Hardwired enabling and E-stop circuits respond within the relay switching time (<20 ms), independent of controller CPU load or network congestion — a measurable advantage over software-polled safety implementations.
• Zero-Configuration Recognition: The KeMotion controller identifies the C50R automatically upon cable connection and loads the assigned HMI application partition without operator intervention, eliminating commissioning steps that introduce human error.
• Diagnostic Transparency: The pendant’s status bar displays live drive fault codes, axis position feedback, and I/O state in real time, allowing maintenance personnel to isolate faults at the machine without connecting a laptop or navigating controller menus.
• Hot-Swap Compatibility: The C50R can be disconnected and reconnected while the controller is powered (in a safe state), supporting pendant replacement during a production shift without a full system restart — reducing unplanned downtime.
• Consistent Operator Experience Across Cell Types: Because KeMotion and KePlast share the same HMI framework, operators trained on one platform can operate the other with minimal retraining, reducing labor costs in mixed-technology facilities.
• Reduced Cable Infrastructure Cost: A single Ethernet cable plus safety conductors replaces the multi-wire analog bundles required by older pendant designs, simplifying cable tray routing and reducing connector failure points.
• Firmware Compatibility Assurance: Genuine OEM units carry KEBA’s firmware compatibility matrix, ensuring the pendant’s HMI runtime version is validated against the installed controller firmware — a critical factor when upgrading KeMotion software versions.
• Audit-Ready Traceability: Each unit carries a serialized label. The serial number maps to KEBA’s production batch records, supporting ISO 9001 and machinery directive technical file requirements for component traceability in CE-marked installations.

Quality Assurance & Global Logistics

Every KEBA C50R 73810/06 unit supplied through siemensplc.com is sourced from verified distribution channels with full documentation traceability. Pre-shipment inspection covers visual examination of the housing and connectors, enabling switch travel and contact continuity verification, E-stop button mechanical and electrical function check, and a power-on display test confirming backlight and touch response. Units are packed in anti-static foam inserts with moisture barrier bags, matching KEBA’s factory packaging specification to prevent electrostatic discharge damage and humidity ingress during transit.

Logistics operations are based in Xiamen, China — a major export hub with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Expedited services. Standard export documentation is prepared for every shipment: commercial invoice, packing list, certificate of origin, and where required, an export control classification confirmation. Typical transit times are 3–5 business days to Europe, 4–6 business days to North America, and 2–4 business days to Southeast Asia. For urgent requirements, same-day dispatch is available on in-stock units when orders are confirmed before 14:00 CST. All shipments include full tracking and are covered by cargo insurance up to declared value.
