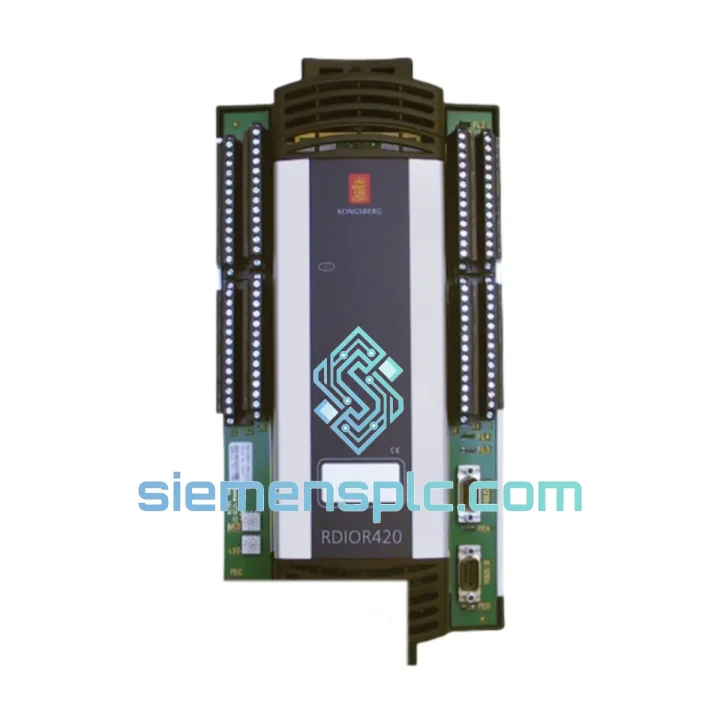

KONGSBERG RDIOR420 Digital Input Module – K-Chief Series

KONGSBERG RDIOR420 – Remote Digital Input Module for Distributed Maritime Control Architectures

The KONGSBERG RDIOR420 is a remote digital input module purpose-built for high-availability distributed control systems operating in marine, offshore, and industrial process environments. Within a K-Chief or equivalent KONGSBERG automation platform, the RDIOR420 functions as a field-side signal acquisition node, collecting discrete on/off states from field instruments — limit switches, pressure switches, valve position feedback contacts, motor run/stop status, and safety interlock signals — and transmitting structured digital data upstream to the system controller via the KONGSBERG proprietary fieldbus backbone.

Unlike generic DIN-rail I/O blocks, the RDIOR420 is designed to operate as an intelligent remote node: it does not merely pass raw contact states but performs local signal conditioning, debounce filtering, and channel-level diagnostics before forwarding validated data frames. This architecture reduces controller polling overhead and ensures that transient contact bounce from mechanical relays does not propagate as false state changes into the control logic.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Opto-Electronic Isolation Architecture: Each input channel group on the RDIOR420 passes field-side signals through a photocoupler stage before the signal reaches the module’s internal logic bus. The photocoupler’s LED side is connected to the field wiring, while the phototransistor side drives the internal CMOS logic. This galvanic break eliminates conducted interference paths between field wiring — which in marine environments can carry significant common-mode noise from AC motor drives, switchboard transients, and cathodic protection systems — and the module’s data processing circuitry. The isolation barrier is rated at 500 V AC, which exceeds the IEC 60664-1 requirements for Overvoltage Category II installations typical of 24 VDC control panels aboard vessels.

Signal Debounce and Filtering: Mechanical contacts — particularly those on pressure switches and flow switches in engine room applications — exhibit contact bounce durations of 1–20 ms. The RDIOR420 implements a configurable digital debounce filter in firmware, typically set to a 10 ms window, which masks bounce events and presents a single clean state transition to the controller. This prevents nuisance alarms in K-Chief alarm management systems caused by relay chatter during valve actuation or pump start sequences.

Distributed Node Intelligence: Rather than operating as a passive terminal block, the RDIOR420 maintains a local channel status register. The module continuously compares sampled input states against the last transmitted state and generates a differential update frame only when a state change is detected. This event-driven transmission model reduces fieldbus traffic by up to 60% compared to cyclic polling architectures, freeing bus bandwidth for time-critical command and status exchanges between the controller and output modules.

EMC Design: The PCB layout employs a split ground plane strategy: the field-side ground (FG) and the logic-side ground (LG) are separated at the photocoupler boundary and rejoined only at the chassis earth point through a low-impedance bond. Decoupling capacitors (100 nF ceramic + 10 µF electrolytic) are placed at each power entry point to suppress high-frequency conducted emissions. The module housing provides shielding continuity when installed in the KONGSBERG backplane, contributing to the system’s overall IEC 61000-4-3 radiated immunity performance.

System Integration Benefits

• Deterministic scan cycle contribution: The RDIOR420’s event-driven update model ensures that state changes are reported within one fieldbus cycle (typically < 5 ms at 1 Mbit/s), supporting deterministic alarm response times required by DNV GL class notation for integrated automation systems (IAS).
• Channel-level diagnostic transparency: Each input channel reports its own status byte, including wire-break detection (where field wiring supports supervised circuits), short-circuit indication, and out-of-range supply voltage flags — all visible in the K-Chief diagnostic display without requiring additional test equipment.
• Reduced field wiring complexity: By consolidating up to 20+ digital input points into a single remote node mounted close to the field devices, the RDIOR420 eliminates long individual cable runs back to a central marshalling cabinet, reducing both installation cost and susceptibility to induced noise on long cable runs.
• Hot-swap capability: The RDIOR420 supports module replacement under power when installed in a compatible KONGSBERG backplane, allowing maintenance personnel to swap a faulty module during vessel operation without shutting down the associated control loop — critical for continuous machinery monitoring aboard vessels at sea.
• Seamless K-Chief 600/700 integration: The module’s address and configuration are stored in the backplane EEPROM, so a replacement RDIOR420 automatically inherits the channel configuration upon insertion, eliminating manual re-parameterization and reducing the risk of configuration errors during maintenance.
• Scalable I/O expansion: Multiple RDIOR420 modules can be daisy-chained on the same fieldbus segment, allowing the I/O count to be expanded incrementally as system requirements grow, without modifying the controller software beyond adding the new node address to the I/O map.
• Alarm management integration: State changes detected by the RDIOR420 are time-stamped at the module level with 1 ms resolution before transmission, providing accurate sequence-of-events (SOE) data for post-incident analysis — a requirement under SOLAS Chapter II-1 for automated machinery space (AMS) notation.
• Power supply supervision: The module monitors its own 24 VDC supply rail and generates a system-level fault signal if the supply drops below 18 VDC, enabling the K-Chief controller to flag a power quality event before I/O data integrity is compromised.

Quality Assurance & Global Logistics

Every KONGSBERG RDIOR420 unit supplied through siemensplc.com is sourced from verified industrial supply channels and undergoes a structured incoming inspection process at our Xiamen, China facility. Inspection steps include visual examination of the PCB and connector condition, label and part number authentication against KONGSBERG’s published part numbering conventions, and functional power-on verification where test equipment permits.

Units are packed in anti-static ESD bags, placed in foam-lined cartons, and sealed with tamper-evident tape. Each shipment is accompanied by a packing list, commercial invoice, and — upon request — a certificate of conformance. For customers requiring traceability documentation for class society audits or safety management system (SMS) records, we can provide batch-level sourcing records.

From Xiamen, we dispatch via DHL Express, FedEx International Priority, and UCP air freight, with typical transit times of 3–7 business days to major ports in Europe, the Middle East, Southeast Asia, and the Americas. For urgent vessel requirements, same-day dispatch is available for orders confirmed before 14:00 CST. Export documentation including HS code classification, CITES declarations where applicable, and dual-use export control screening is handled in-house.

All units carry a 12-month warranty from the date of shipment, covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed within 5 business days of receipt of the returned unit.
