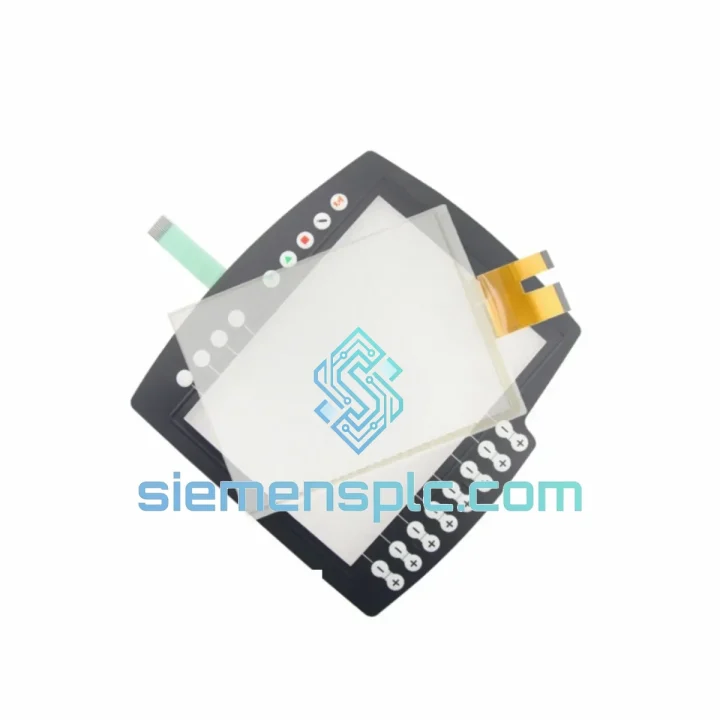

KUKA 00-291-556 C5 HMI Touch Screen Assembly – KR C5 Series

KUKA 00-291-556 C5 SmartPAD Touch Screen Assembly — Operator Interface Integrity for KR C5 Robot Controllers

The KUKA 00-291-556 C5 is the OEM-designated touch screen glass and protective film assembly for the KR C5 robot controller platform. Within a KUKA robotic cell, the SmartPAD teach pendant serves as the sole operator interface for motion programming, safety acknowledgment, and real-time diagnostic readout. The 00-291-556 C5 assembly constitutes the physical sensing and display layer of that interface — its mechanical and electrical integrity directly determines whether operators can issue commands, read fault codes, or perform safe-speed jogging. A degraded or fractured screen surface does not merely reduce usability; it disables the control loop’s human-machine boundary entirely, forcing a cell shutdown until the component is restored.

This part is engineered as a drop-in replacement at the screen-assembly level, preserving the SmartPAD’s internal electronics, cable harness, and firmware state. Replacement is performed without controller cabinet access, reducing mean time to repair (MTTR) to under 60 minutes for a qualified service technician.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The KR C5 SmartPAD operates on a dedicated CAN-based communication channel between the pendant and the KR C5 cabinet’s KPC (KUKA PC) unit. The touch screen assembly interfaces with the pendant’s internal ARM-based display controller via an LVDS (Low-Voltage Differential Signaling) ribbon, which provides inherent common-mode noise rejection — a critical design choice in welding cells where high-frequency electromagnetic interference (EMI) from inverter switching transients (typically 4–16 kHz PWM) and arc ignition pulses can reach field strengths of 10 V/m or higher at 1 m distance.

The projected capacitive (PCAP) sensing layer in the 00-291-556 C5 uses a mutual-capacitance matrix with a ground-shielded ITO (Indium Tin Oxide) electrode grid. This architecture provides two EMC advantages over resistive predecessors: (1) the sensing electrodes are not mechanically deflected, eliminating contact bounce and false-trigger events from vibration; (2) the driven-shield topology actively cancels parasitic capacitance introduced by operator gloves or nearby metallic surfaces, maintaining touch detection accuracy within ±1 mm across the full operating temperature range.

The 7H-rated glass substrate is chemically strengthened via an ion-exchange process (analogous to Corning Gorilla Glass methodology), producing a compressive stress layer of approximately 70–90 µm depth. This surface layer absorbs impact energy from tool drops or panel contact without propagating cracks to the sensing electrode layer beneath — a failure mode that would otherwise cause localized dead zones in the touch matrix without visible external damage.

The bundled anti-glare PET protective film uses a micro-structured surface (Ra ≈ 0.3 µm) that diffuses specular reflections from overhead fluorescent or LED fixtures common in manufacturing environments, reducing glare-induced operator error during fine motion programming. The film’s optical transmittance is ≥92%, preserving display contrast ratio without measurable degradation to color rendering index (CRI) as perceived by the operator.

System Integration Benefits

• Zero firmware re-initialization required — The 00-291-556 C5 is a passive hardware replacement. The SmartPAD’s internal display controller retains all firmware, calibration offsets, and language settings after screen swap, eliminating the need for a KUKA WorkVisual re-commissioning cycle.
• Maintains SafeOperation interface integrity — KUKA SafeOperation (SO) and SafeRangeMonitoring (SRM) acknowledgment sequences are touch-input dependent. Restoring a calibrated PCAP surface ensures that safety-rated operator confirmations register with the correct input coordinates, preventing spurious acknowledgment failures that could trigger E-stop cascades.
• Preserves CAN bus timing determinism — Because the replacement does not alter the pendant’s internal CAN node address or message timing, the KR C5’s real-time kernel (VxWorks-based) continues to service the pendant’s 10 ms cyclic heartbeat without reconfiguration, maintaining deterministic response latency across the control loop.
• Reduces MRO inventory complexity — A single 00-291-556 C5 unit covers all KR C5-generation SmartPAD variants within a production facility, simplifying spare parts BOM management for maintenance teams operating mixed KUKA robot fleets.
• Supports multi-shift operational continuity — In 24/7 production environments, screen degradation accumulates from cumulative operator contact cycles. Proactive replacement using this assembly during scheduled maintenance windows prevents unplanned downtime during peak production shifts.
• Compatible with KUKA.WorkVisual diagnostic logging — Post-replacement, the KR C5 controller’s diagnostic log (accessible via WorkVisual 6.x) does not register a hardware change event for the screen assembly, preserving audit trail continuity for ISO 9001-compliant maintenance records.
• Glove-compatible touch sensitivity — The PCAP mutual-capacitance design maintains reliable touch registration through standard nitrile or latex industrial gloves (0.1–0.2 mm thickness), eliminating the need for operators to remove PPE during programming or fault acknowledgment.
• Reduces total cost of ownership vs. full pendant replacement — A SmartPAD teach pendant assembly (full unit) carries a list price typically 8–12× higher than a screen-level replacement. Specifying the 00-291-556 C5 for screen-isolated failures preserves capital maintenance budget for higher-priority component renewals.

Quality Assurance & Global Logistics

Every 00-291-556 C5 unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment inspection protocol: visual examination of glass surface for micro-fractures under 10× magnification, ITO electrode continuity verification via capacitance bridge measurement, protective film adhesion and bubble-free application check, and OEM part label authentication against KUKA’s published part number matrix. Units are individually packed in anti-static foam inserts within double-wall corrugated cartons rated for 80 kg/m² stacking load, preventing glass fracture during air freight pallet consolidation.

Logistics from Xiamen Gaoqi International Airport (XMN) to major industrial hubs: Frankfurt (FRA) in 3–5 business days via direct cargo, Chicago O’Hare (ORD) in 4–6 business days, Tokyo Narita (NRT) in 2–3 business days. Full export documentation is provided as standard: commercial invoice with HS code 8537.10 classification, packing list, certificate of origin (Form E for ASEAN, EUR.1 for EU), and DHL/FedEx/UPS tracking with proactive exception alerts. For MRO procurement teams requiring blanket purchase orders or consignment stock arrangements, dedicated account management is available upon request.
