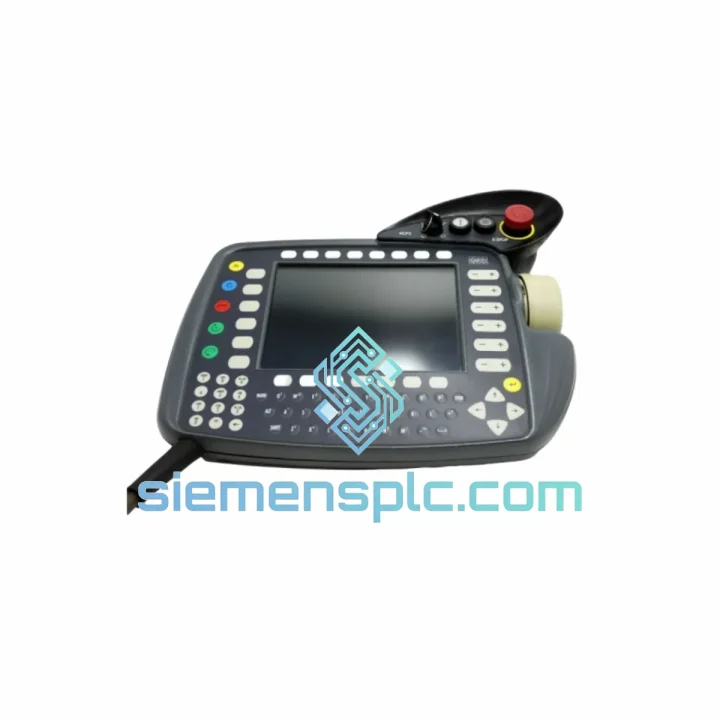

KUKA 00-320-104 SmartPAD Teach Pendant

KUKA 00-320-104 SmartPAD Down? Every Minute of Robot Downtime Costs You Money — We Ship Today

A failed teach pendant on a KRC5 cell doesn’t just pause one robot — it can cascade into a full line stoppage. Automotive BIW, arc welding, palletizing, machine tending: when the SmartPAD 00-320-104 goes dark, your production schedule goes with it. We stock this unit in Xiamen and dispatch same-day on confirmed orders. No waiting on OEM lead times. No excuses.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on KUKA cells, these are the failure patterns I see most often with the SmartPAD 00-320-104 — and what to check before you pull the trigger on a replacement:

1. Blank or frozen display (most common call-out)
First, rule out the cable before condemning the pendant. Disconnect the SmartPAD bus connector at the KRC5 cabinet, inspect the gold contacts for corrosion or bent pins, and reseat firmly. If the display stays dead after a controller cold-boot, the pendant’s internal display board has failed — replacement is the only fix. The 00-320-104 display is not field-serviceable.

2. “KCP connection lost” alarm on KSS
This alarm (error code 1503 or 1504 in KSS 8.7) almost always points to the SmartPAD bus cable, not the pendant itself. Swap the cable first (KUKA P/N 00-168-334 for 10 m). If the alarm persists with a known-good cable, the pendant’s bus interface IC has failed — order 00-320-104.

3. Enabling switch (deadman) not registering
The 3-position enabling device is a safety-critical SIL 2 component. If the robot refuses to move in T1/T2 mode and the enabling switch is suspect, do not attempt to bypass or tape it. Replace the pendant. Before installing the new unit, verify the KRC5 safety configuration in WorkVisual — the enabling switch channel mapping must match your safety PLC configuration.

4. Touchscreen drift or ghost touches
Typically caused by contamination under the screen bezel or a failing digitizer. Clean the screen with isopropyl alcohol first. If drift persists, the digitizer layer is delaminating — a known wear item on pendants used in high-vibration welding cells. Replace with 00-320-104.

Replacement procedure — key steps:

• Back up your KSS project via WorkVisual before any hardware swap.
• The 00-320-104 supports hot-swap with KSS 8.6+ (controller stays powered). Confirm your KSS version before attempting hot-swap — earlier versions require a cold-boot.
• After connecting the new pendant, KSS will prompt for a SmartPAD pairing confirmation on the controller touchscreen. Approve it within 60 seconds or the pairing times out.
• No firmware flashing required — KSS pushes the correct smartHMI runtime to the pendant automatically on first boot.
• Verify all safety functions (enabling switch, emergency stop, mode selector) in T1 mode before returning the cell to production.

Reliability in Harsh Conditions

The SmartPAD 00-320-104 is built for the floor, not the office. IP54 sealing blocks coolant mist and weld spatter from penetrating the housing — a daily reality in BIW and arc welding environments. The polycarbonate housing is rated for continuous operation at 45 °C ambient, which covers most non-air-conditioned production halls in Southeast Asia and the Middle East.

The 3-position enabling switch mechanism is rated for over 1 million actuations — but in high-cycle teach applications, the switch contacts do wear. That’s why we see replacement demand spike at the 3–5 year mark on heavily used cells. The pendant’s internal electronics are conformal-coated against humidity ingress, which matters in coastal and tropical facilities where relative humidity regularly exceeds 80%.

Vibration resistance is validated to IEC 60068-2-6 (sinusoidal) and IEC 60068-2-64 (random), covering the shock profiles generated by large-frame robots like the KR QUANTEC during high-speed path execution. Units stored in our Xiamen warehouse are kept in climate-controlled conditions with humidity indicator cards — you receive a pendant that hasn’t been sitting in a damp container for six months.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the country’s primary export ports with direct DHL Express and FedEx International Priority connections to major industrial hubs worldwide.

• Order confirmed before 14:00 CST: Same-day dispatch, DHL or FedEx at your choice.
• Europe (Germany, Poland, Czech Republic): 3–5 business days door-to-door.
• North America (USA, Mexico, Canada): 3–5 business days via FedEx IP.
• Southeast Asia (Thailand, Vietnam, Indonesia): 2–3 business days.
• Middle East (UAE, Saudi Arabia): 4–6 business days.

Every shipment includes a commercial invoice, packing list, and certificate of origin for customs clearance. For EU buyers, we provide EUR.1 movement certificates on request. For US imports, we declare under the correct HTS code (8537.10) with full product description to avoid customs holds. Tracking numbers are sent within 2 hours of dispatch.

For urgent air-freight consolidation or DDP (Delivered Duty Paid) terms, contact us directly — we handle the full logistics chain so your procurement team doesn’t have to.
