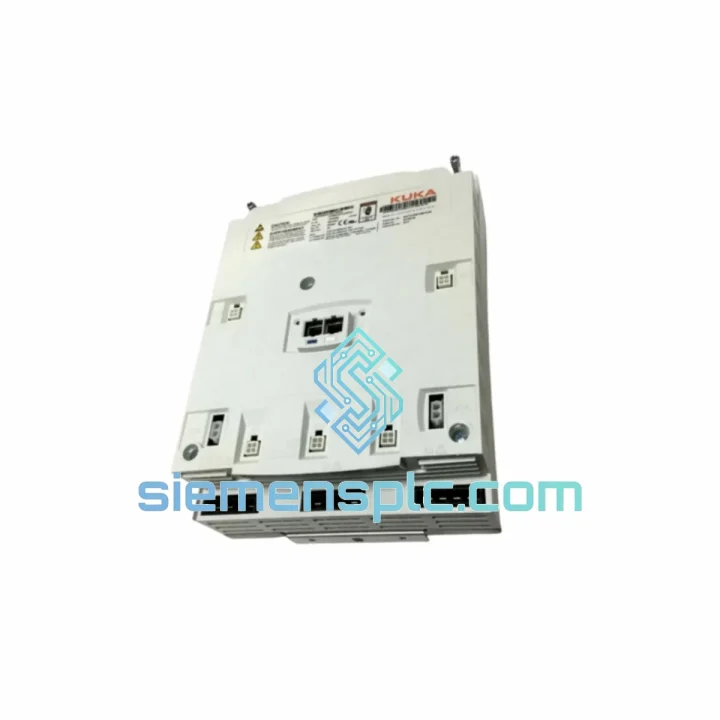

KUKA KSP600-3×40 Servo Drive Controller – KSP600 Series

KUKA KSP600-3×40 — Three-Axis Servo Drive Module for KR C4 Robot Controllers

The KSP600-3×40 is a three-axis servo power module manufactured by KUKA Roboter GmbH, designed exclusively for integration within the KR C4 controller cabinet platform. Part number 00-198-268 (Controller Reference ID: ECMBS3D4444BE531), this module consolidates three independent servo drive channels into a single field-replaceable unit, operating from a shared 600 V DC bus supplied by the KPP600 power supply module. Each axis channel is rated at a continuous output current of 40 A, making this drive suitable for medium-payload articulated robots in the KR 6 through KR 30 range under continuous duty conditions.

Within the KR C4 drive architecture, the KSP600-3×40 occupies the servo amplifier layer between the DC bus and the motor windings. It receives torque and velocity setpoints from the KR C4 main computer via the KCB (KUKA Controller Bus) EtherCAT ring, executes current regulation at the axis level, and closes the position loop using resolver or encoder feedback signals routed directly from each motor. The onboard DSP executes the current control loop at a switching frequency of 8 kHz or higher, producing low-ripple torque output that is essential for path accuracy in welding, dispensing, and precision assembly applications.

Procurement engineers replacing a failed drive in a production cell or building spare-parts inventory for preventive maintenance programs will find this module fully interchangeable with OEM-installed units. All units supplied by siemensplc.com are sourced through verified industrial channels, inspected prior to shipment, and dispatched from Xiamen, China with full export documentation.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The KSP600-3×40 implements a three-channel voltage-source inverter topology sharing a common 600 V DC bus rail. Each channel consists of a three-phase IGBT bridge with gate driver circuitry, a dedicated current measurement stage using hall-effect sensors on two phases (third phase derived by Kirchhoff’s current law), and a DSP-based PI current regulator executing at ≥ 8 kHz. The three channels share a single module housing but maintain electrically isolated gate drive supplies per axis, preventing cross-channel fault propagation — a critical design requirement in multi-axis robot drives where a single-axis overcurrent event must not cascade to adjacent axes.

EMC performance is addressed at the hardware level through a combination of measures: the DC bus capacitor bank provides local energy storage and decouples high-frequency switching transients from the KPP600 supply rail; gate resistors are tuned to balance switching losses against dV/dt-induced common-mode currents in motor cables; and the module’s metal housing acts as a Faraday shield, attenuating radiated emissions from the IGBT switching nodes. The KCB EtherCAT interface uses transformer-coupled physical layer isolation, ensuring that ground potential differences between the controller PC and the drive module do not introduce noise into the communication channel.

Regenerative energy handling is managed at the cabinet level by the KPP600 ballast circuit; the KSP600-3×40 feeds braking energy back onto the shared DC bus during motor deceleration phases. This architecture avoids per-axis braking resistors, reducing thermal load inside the cabinet and extending the operational lifespan of the drive module under high-duty-cycle deceleration profiles typical of palletizing and press-tending applications.

The module’s firmware implements axis-level safe torque off (STO) in compliance with IEC 62061 SIL 2 / ISO 13849-1 PLd, enabling integration with the KR C4’s safety controller (KSC) without external safety relays on each motor circuit. STO status is reported back to the KCB bus in real time, giving the safety PLC full diagnostic transparency over the drive’s safe state.

System Integration Benefits

• Deterministic cycle synchronization: EtherCAT KCB ring delivers sub-1 ms jitter on torque setpoint updates, maintaining path repeatability across all three axes without inter-axis timing drift.
• Reduced cabinet wiring complexity: Three servo channels in one plug-in module eliminate six individual drive-to-bus power connections and three separate EtherCAT node addresses compared to discrete single-axis drives.
• Integrated STO per axis: Safe torque off implemented at the IGBT gate driver level removes the need for external motor contactors on each axis, reducing cabinet component count and potential failure points.
• Real-time fault diagnostics via KCB: The module reports axis-specific fault codes (overcurrent, overtemperature, encoder loss, DC bus undervoltage) to the KR C4 main computer in each EtherCAT cycle, enabling the robot controller to log, display, and act on faults within one control cycle.
• Shared DC bus energy efficiency: Regenerative energy from decelerating axes is available to accelerating axes on the same bus within the same cabinet, reducing net energy draw from the mains supply during coordinated multi-axis motion.
• Hot-swap field replacement: In supported KR C4 cabinet configurations, the module can be exchanged without full cabinet de-energization, reducing mean time to repair (MTTR) in high-uptime production environments.
• Firmware compatibility management: KUKA WorkVisual automatically detects the module’s firmware version via KCB enumeration and can push firmware updates during commissioning, ensuring compatibility with the installed KR C4 software version without manual intervention.
• Scalable axis expansion: Multiple KSP600-3×40 modules can be daisy-chained on the KCB ring within a single cabinet, supporting robot variants with more than three axes (e.g., external positioners or track systems) without additional communication hardware.

Quality Assurance & Global Logistics

Every KSP600-3×40 unit dispatched by siemensplc.com undergoes a structured pre-shipment verification process. Visual inspection confirms housing integrity, connector pin condition, and label legibility. A functional power-on test verifies that the module initializes correctly on a KCB EtherCAT segment and reports no latent fault codes. The part number (00-198-268) and controller reference ID (ECMBS3D4444BE531) are cross-checked against the unit’s physical label and internal firmware identification string before packaging.

Units are packed in anti-static ESD bags with humidity indicator cards, placed in foam-lined cartons rated for international air freight handling. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared for each shipment to facilitate customs clearance in the destination country. DHL Express and FedEx International Priority are the primary carriers, with typical transit times of 3–5 business days to Europe, North America, and Southeast Asia from our Xiamen, China dispatch point. Expedited same-day dispatch is available for orders confirmed before 14:00 CST.

A 12-month warranty covers manufacturing defects and latent failures. Dead-on-arrival (DOA) units confirmed by fault report are replaced within 7 business days. Certificate of conformity is available upon request for quality management system documentation purposes.
