KULICKE & SOFFA 8001-4176 Control Board – Wire Bonder Series

KULICKE & SOFFA 8001-4176 Wire Bonder Control PCB: Motion Sequencing & Process Signal Architecture in Semiconductor Packaging Lines

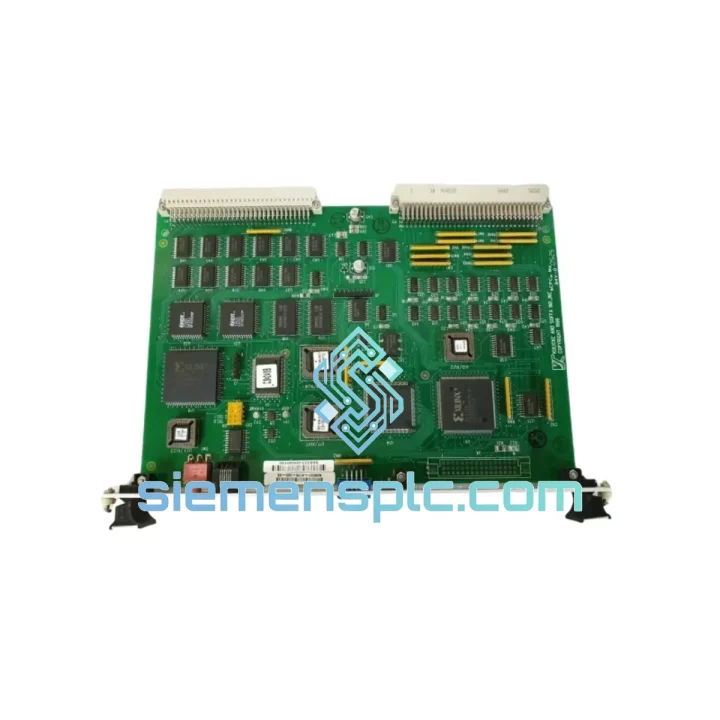

The KULICKE & SOFFA 8001-4176 is a purpose-engineered OEM control board assembly deployed within K&S wire bonding platforms. Its primary function is to arbitrate real-time motion commands and process-critical analog/digital signals between the machine’s central controller and the bonding head subsystem. In high-throughput semiconductor back-end packaging environments, this board directly governs bond force modulation, ultrasonic energy delivery, XY stage positioning feedback, and loop height trajectory — parameters that determine both yield and throughput on every bonding cycle.

Unlike generic PCB replacements, the 8001-4176 carries OEM part number traceability to the K&S bill of materials, preserving original connector pinout geometry, board-layer stack-up, and firmware compatibility. Facilities operating OSAT lines, LED packaging stations, or automotive power device assembly cannot afford signal drift or motion latency introduced by non-OEM substitutes. This board eliminates that risk entirely.

Stocked and dispatched from Xiamen, China by the siemensplc.com technical team, the 8001-4176 is available for immediate MRO procurement with full export documentation. Each unit undergoes visual inspection and serialization logging before dispatch. Air freight-ready anti-static packaging with humidity indicator cards is standard.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 8001-4176 board occupies a deterministic position in the K&S wire bonder control hierarchy. Architecturally, it functions as the signal conditioning and command distribution layer between the machine’s supervisory motion controller and the bonding head’s electromechanical actuators.

Motion Command Distribution: XY stage positioning commands are received from the host controller via a dedicated digital bus. The board decodes these commands and drives the stage servo amplifiers with sub-millisecond latency, a requirement imposed by the bonding cycle’s tight positional tolerance — typically ±1 µm at the bond site. Any propagation delay or signal corruption at this layer directly degrades placement accuracy and increases wire sweep variance.

Ultrasonic Energy Management: The board interfaces with the ultrasonic transducer driver circuit, regulating the amplitude and frequency of the scrubbing energy applied during ball and wedge bond formation. Precise energy delivery is non-negotiable: under-drive produces cold joints with insufficient intermetallic formation; over-drive causes cratering in low-k dielectric substrates. The 8001-4176 maintains the calibrated energy envelope defined in the K&S process recipe.

Bond Force Signal Path: Analog force feedback from the bonding head load cell is conditioned on this board before being digitized and returned to the process controller. The signal conditioning chain includes low-pass filtering to suppress mechanical resonance artifacts and differential amplification to reject common-mode noise from the ultrasonic drive circuit — a classic EMC challenge in wire bonder environments where high-frequency transducer signals and sensitive force measurements coexist on the same chassis.

Loop Height Trajectory Control: Z-axis motion for wire loop formation is governed by a coordinated command sequence processed through this board. The loop height profile — including the kink point, reverse motion, and tail break — is executed as a deterministic state machine. Deviation from the programmed trajectory results in loop geometry defects that fail automated optical inspection (AOI) at the next process station.

EMC Design Considerations: Operating inside a wire bonder chassis exposes the board to conducted and radiated interference from the ultrasonic generator, stepper motor drivers, and vacuum system switching. The 8001-4176 incorporates ground plane segmentation to isolate analog signal return paths from digital switching currents, reducing susceptibility to ground bounce that would otherwise corrupt force and position feedback signals.

System Integration Benefits

• Zero-modification installation: Original connector pinout and PCB mounting geometry are preserved, eliminating the need for harness rework or bracket fabrication during replacement.
• Firmware compatibility assurance: OEM part number alignment guarantees compatibility with the machine’s existing firmware revision, avoiding the version mismatch faults that occur with non-OEM substitutes.
• Deterministic real-time response: The board’s signal architecture maintains the sub-millisecond command latency required for closed-loop bond force and position control, sustaining process repeatability across high-volume production runs.
• Diagnostic transparency: OEM boards retain full compatibility with K&S diagnostic software, enabling fault code readout, signal trace logging, and process parameter verification without workaround procedures.
• Yield protection: Restoring the original signal conditioning chain eliminates the analog drift and noise floor elevation that degrade bond pull strength and shear test results when non-OEM boards are used.
• Reduced recalibration overhead: Drop-in replacement with matched electrical characteristics means the machine’s existing process recipes remain valid after board swap, avoiding the multi-hour recalibration cycles associated with non-OEM substitutions.
• MRO inventory simplification: A single OEM part number covers the full replacement scope — no need to source individual components or manage sub-assembly procurement across multiple vendors.
• Uptime recovery speed: With in-stock availability and air freight dispatch from Xiamen, line-down situations can be resolved within 48–72 hours to most global destinations, minimizing production loss exposure.

Quality Assurance & Global Logistics

Every 8001-4176 unit stocked by siemensplc.com is sourced through verified industrial supply channels with full OEM part number traceability. Pre-dispatch inspection covers visual integrity of the PCB assembly, connector condition, and revision level documentation. Units are serialized and logged in our inventory system, enabling post-sale traceability for quality audit purposes.

Packaging follows ANSI/ESD S20.20 Class 1 requirements: conductive inner bag, foam cushioning, humidity indicator card, and rigid outer carton rated for air freight handling. Export documentation — commercial invoice, packing list, and Certificate of Conformance — is prepared for every shipment. DDP and DAP Incoterms are available for buyers requiring landed cost certainty.

Dispatch is from Xiamen, China, with direct access to Xiamen Gaoqi International Airport and Xiamen Port, supporting both air express (DHL, FedEx, UPS) and sea freight consolidation. Transit times to major industrial hubs: Southeast Asia 1–3 days, Europe 3–5 days, North America 3–5 days, Middle East 2–4 days. Expedited handling for line-down (AOG) situations is available upon direct contact.

A 12-month functional warranty covers all dispatched units from the date of shipment. Warranty claims are processed with replacement dispatch or credit note within 5 business days of fault confirmation. Extended warranty terms are negotiable for volume procurement agreements.
