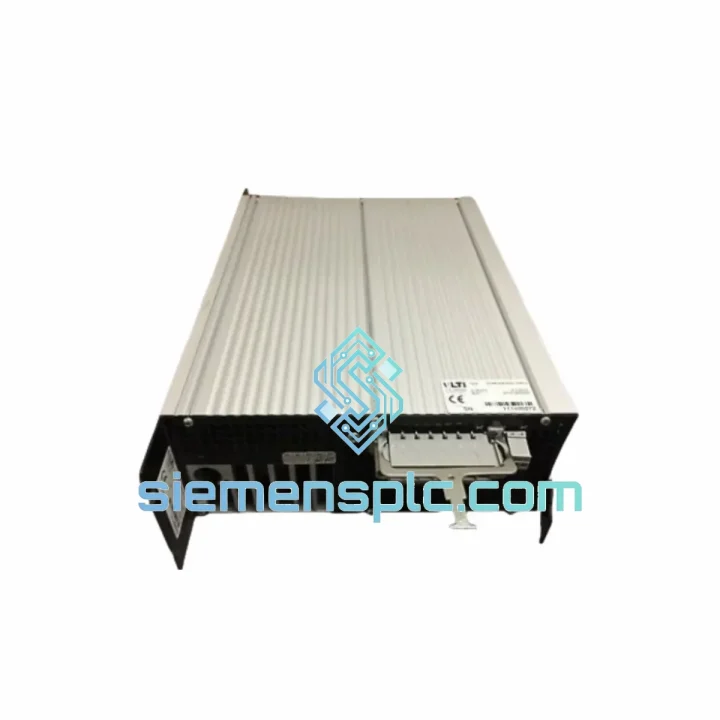

LTI MOTION SO84.032.0003.0001.2 AC Servo Amplifier – Luster Series

LTI MOTION SO84.032.0003.0001.2 — Closed-Loop AC Servo Amplifier for Precision Motion Control

The SO84.032.0003.0001.2 is a 3.2 A continuous-output AC servo amplifier from LTI MOTION’s Luster platform, engineered for closed-loop torque, speed, and position control in industrial machinery where deterministic response and long-term field reliability are primary design constraints. Operating from a 3-phase 200–480 V AC supply, the unit integrates a full-featured DSP-based control core with multi-protocol feedback support and hardware-level safety isolation, making it a direct-fit solution for OEM machine builders and system integrators working across packaging, CNC, printing, and robotics sectors.

LTI MOTION — formerly Lust Antriebstechnik — has maintained a consistent hardware architecture across the SO84 series, which means this amplifier carries forward decades of field-validated design decisions: shielded signal routing, thermally managed IGBT stages, and a firmware structure that separates safety-critical functions from the application control loop at the hardware gate level. The suffix string .032.0003.0001.2 encodes specific hardware options: output current class (3.2 A), feedback interface variant, fieldbus configuration, and brake output capability — each digit representing a factory-configured hardware selection, not a software parameter.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The SO84.032.0003.0001.2 is built around a dual-processor architecture: a primary DSP handles real-time current regulation and position/speed loop closure at a fixed PWM switching frequency (typically 8–16 kHz), while a secondary microcontroller manages fieldbus communication, parameter storage, and fault logging independently. This separation prevents communication latency from affecting the inner control loop — a critical design requirement in high-dynamic applications where torque bandwidth must exceed 1 kHz.

Power Stage & DC Bus Architecture: The rectifier stage converts 3-phase AC to an unregulated DC bus. The IGBT inverter stage then synthesizes 3-phase sinusoidal output via space-vector PWM (SVPWM), which minimizes harmonic distortion and reduces motor heating compared to scalar PWM methods. The DC bus capacitor bank is sized to absorb regenerative energy pulses during deceleration; for sustained regenerative loads, an external braking resistor connected to the brake chopper output is required.

EMC Design: The SO84 series incorporates an integrated line filter on the AC input side, reducing conducted emissions to comply with EN 61800-3 Category C2 limits without requiring an external EMC filter in most cabinet installations. Signal cables are routed through shielded channels separated from power conductors, and the feedback interface uses differential signal pairs with hardware termination to reject common-mode noise — essential in environments with variable-frequency drives or high-current switching equipment operating in proximity.

Feedback Signal Processing: The resolver interface uses a dedicated excitation oscillator and synchronous demodulation circuit to extract rotor position with 12-bit angular resolution per electrical revolution, independent of motor speed. For SinCos encoder inputs, the interpolation circuit achieves sub-micron position resolution by digitizing the 1 Vpp sine/cosine signals at high sample rates. This hardware-level interpolation offloads the DSP from raw signal processing, preserving CPU cycles for control loop execution.

STO Safety Channel: The Safe Torque Off function operates through a dedicated hardware path that disables the IGBT gate drivers independently of the firmware state. When the STO input is de-energized, gate pulses are physically blocked at the driver IC level — the motor cannot generate torque regardless of any software command. This architecture satisfies IEC 62061 SIL 2 and EN ISO 13849-1 PLd requirements without requiring a safety-rated PLC or external contactor in the motor circuit, reducing both component count and cabinet wiring complexity.

System Integration Benefits

• Drop-in fieldbus compatibility: Native CANopen CiA 402 and PROFIBUS DP support allows the SO84.032.0003.0001.2 to integrate directly into existing PLC architectures — Siemens, Beckhoff, Schneider, or Omron — without gateway hardware or protocol conversion layers.
• Multi-feedback retrofit capability: Support for resolver, incremental encoder, and SinCos encoder on a single hardware platform eliminates the need to replace motors during machine upgrades; the drive adapts to the installed feedback device.
• Deterministic torque response: DSP-based current loop closure at ≤125 µs cycle time delivers consistent torque bandwidth, enabling tight synchronization in multi-axis gantry and cam-profile applications.
• Integrated STO reduces safety BOM: Hardware-level STO eliminates the external motor contactor in SIL 2 / PLd safety circuits, reducing panel space, wiring labor, and contactor wear-out failure modes.
• Wide supply voltage tolerance: 200–480 V AC ±10% input range accommodates both 200 V-class and 400 V-class motor systems on a single drive SKU, simplifying spare parts inventory for multi-voltage facilities.
• Diagnostic transparency: Fault codes, operating hours, and parameter change logs are stored in non-volatile memory and accessible via fieldbus or the drive’s serial interface, enabling root-cause analysis without specialized test equipment.
• Regenerative energy management: The built-in brake chopper with external resistor option allows controlled dissipation of regenerative energy during rapid deceleration cycles, protecting the DC bus from overvoltage trips in high-inertia load applications.
• Scalable within the SO84 platform: The Luster series spans multiple current ratings sharing identical fieldbus configuration, parameter structure, and commissioning software — reducing engineering time when scaling from prototype to production or expanding axis count.

Quality Assurance & Global Logistics

Every SO84.032.0003.0001.2 unit supplied through siemensplc.com is sourced from verified industrial channels and subjected to a structured incoming inspection protocol before dispatch. Physical inspection covers housing integrity, connector pin condition, label authenticity, and firmware version verification against LTI MOTION OEM documentation. Where feasible, power-on functional testing is performed to confirm drive initialization, fault-free startup, and feedback interface response prior to packaging.

Units are packed in anti-static foam-lined cartons with humidity indicator cards and desiccant inserts, meeting IEC 60068-2 transport and storage requirements. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared for each shipment. HS code 8504.40 applies for customs classification of servo amplifiers.

Logistics operations are based in Xiamen, China, with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Expedited services. Standard transit times to Europe are 3–5 business days; North America 4–6 business days; Southeast Asia 2–3 business days. EXW Xiamen and CIF destination Incoterms are both available. For time-critical requirements, same-day dispatch is available for orders confirmed before 14:00 CST.

All units carry a 12-month warranty from the date of shipment, covering manufacturing defects and verified functional failures under normal operating conditions. Technical support — including parameter configuration guidance, wiring diagram review, and fault code interpretation — is provided by engineers with hands-on experience across the LTI MOTION Luster platform.
