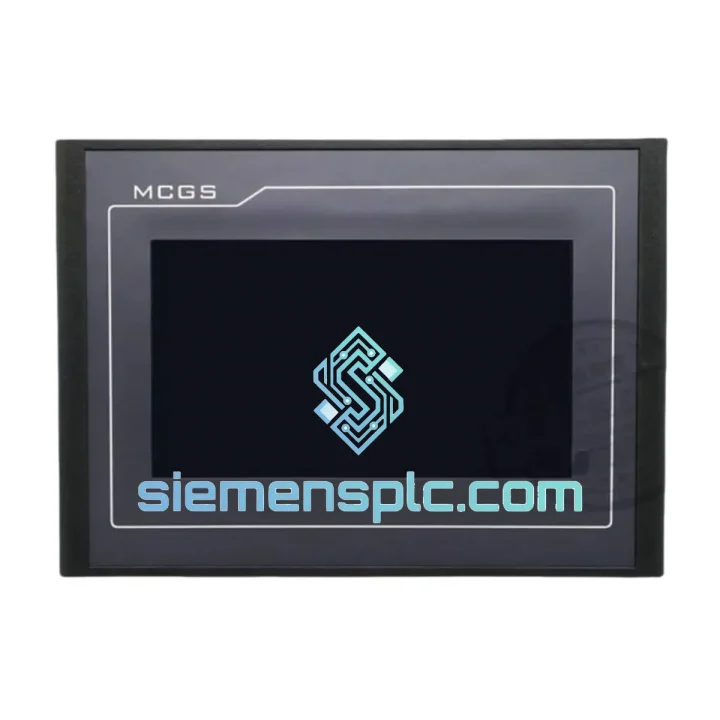

MCGS TPC1062K HMI Touch Screen – Kunlun TPC Series

MCGS TPC1062K: 10.2-Inch Resistive HMI Panel in Industrial Control Loop Architecture

The MCGS TPC1062K is a 10.2-inch resistive-touch Human-Machine Interface panel from Beijing Kunlun Tongtai Automation Technology Co., Ltd. (MCGS), positioned within the Kunlun TPC Series — a product line engineered specifically for deterministic process visualization and operator interaction in discrete and continuous manufacturing environments. Unlike consumer-grade display solutions, the TPC1062K is designed from the ground up to operate as a terminal node within a PLC-driven control loop, handling real-time data polling, alarm arbitration, and operator command relay without introducing latency artifacts that could compromise process integrity.

At its core, the TPC1062K functions as the human-facing endpoint of a closed-loop control architecture. It receives process variable data from field controllers via serial or Ethernet communication, renders that data on a 800×480 TFT LCD panel, and transmits operator setpoint changes back to the controller within a deterministic communication cycle. The panel’s ARM Cortex-A8 processor running at 600 MHz provides sufficient compute headroom to sustain multi-screen project execution, concurrent alarm monitoring, and data logging without frame-drop or communication timeout — conditions that are unacceptable in safety-critical or high-throughput production lines.

The embedded Linux operating system underpinning the TPC1062K is a stripped-down, real-time-optimized build maintained by MCGS. It eliminates the overhead of general-purpose OS scheduling, ensuring that communication polling cycles — typically configured between 50 ms and 500 ms in MCGS MCGSE software — are honored with sub-millisecond jitter. This is a measurable engineering advantage over Windows CE-based HMI platforms, which are subject to non-deterministic garbage collection and driver interrupt latency.

The panel’s front face carries an IP65 ingress protection rating per IEC 60529, sealing the display assembly against dust ingress and low-pressure water jets. This rating is achieved through a continuous gasket perimeter between the front bezel and the panel cutout, making the TPC1062K suitable for installation in control cabinets exposed to coolant mist, wash-down cycles, or high-particulate environments such as cement, grain, or chemical processing facilities.

Communication architecture on the TPC1062K is multi-port and protocol-agnostic at the driver layer. The panel exposes one RS-232 port, two RS-485 ports, one RJ45 Ethernet port, one USB Host port, and one USB Device port. MCGS MCGSE software ships with over 300 pre-built PLC driver libraries, covering Siemens S7-200/300/400/1200/1500, Mitsubishi FX/Q/L, Omron CP/CJ/CS, Delta DVP/AS, Schneider Modicon, and Modbus RTU/TCP generic devices. Multi-device communication — polling two or more controllers simultaneously on separate ports — is supported natively, enabling the TPC1062K to serve as a unified visualization node in heterogeneous control architectures without requiring a gateway PLC or protocol converter.

Power input is rated at DC 24V ±15%, consistent with the standard 24 VDC rail present in virtually all industrial control cabinets. Steady-state power consumption is ≤10 W, which places the TPC1062K well within the thermal budget of compact enclosures and eliminates the need for supplementary cooling provisions in most ambient temperature conditions up to 55°C.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The TPC1062K’s resistive touch layer is a 4-wire analog matrix bonded directly to the LCD glass assembly. Unlike projected capacitive (PCAP) panels, resistive technology responds to any stylus or gloved input — a non-trivial operational requirement in environments where operators wear nitrile or leather gloves. The analog-to-digital conversion of touch coordinates is handled by a dedicated touch controller IC, decoupled from the main ARM SoC, which means touch sampling continues at full rate even during peak CPU load from communication polling or screen rendering.

The ARM Cortex-A8 core implements a Harvard memory architecture with separate L1 instruction and data caches (32 KB each) and a unified 256 KB L2 cache. This cache hierarchy allows the MCGS RT kernel to maintain deterministic interrupt response times for communication port ISRs (Interrupt Service Routines), even when the application layer is executing complex screen transitions or data logging writes to NAND flash. The NAND flash controller implements wear-leveling at the firmware level, extending the write endurance of the storage medium beyond 100,000 program/erase cycles — a critical consideration for applications with high-frequency data logging.

EMC performance is addressed at the PCB layout level. The main board uses a 4-layer stackup with dedicated ground planes separating the digital logic layer from the analog touch and display driver layers. RS-485 transceivers are equipped with TVS (Transient Voltage Suppressor) diodes on the A/B lines, providing ±15 kV ESD protection per IEC 61000-4-2 Level 4. The Ethernet PHY is isolated via a 1500 V transformer, preventing ground loop currents from propagating between the HMI and the network switch — a common source of communication errors in large industrial installations with multiple grounding points.

The DC-DC power conversion stage accepts 24V ±15% input and generates the multiple internal rails (3.3V logic, 1.8V DDR, 5V USB VBUS, 12V LCD backlight) via a synchronous buck topology. Input filtering includes a common-mode choke and X/Y capacitors rated to suppress conducted emissions per EN 55011 Class A, ensuring the panel does not introduce switching noise onto the 24V cabinet rail that could affect sensitive analog I/O modules sharing the same power bus.

System Integration Benefits

• Deterministic polling cycle: Communication scan rates configurable from 50 ms to 2000 ms per device in MCGS MCGSE, with cycle-time monitoring built into the runtime diagnostics panel — operators can verify actual vs. configured scan time without external instrumentation.
• Multi-controller simultaneous polling: RS-485 Port 1, RS-485 Port 2, and Ethernet can each address a separate PLC or device concurrently, eliminating the need for a protocol gateway in mixed-brand control architectures.
• Alarm transparency: The MCGS alarm subsystem supports up to 2,000 discrete alarm tags with configurable priority levels, acknowledgment logic, and time-stamped alarm history stored to internal flash or USB drive — providing a complete audit trail for ISO 9001 and FDA 21 CFR Part 11 compliance reviews.
• Recipe management: Up to 128 recipe groups with 512 parameters each can be stored and downloaded to the PLC via a single operator action, reducing changeover time on multi-product lines without requiring PLC program modification.
• Data logging to USB: Process variables can be logged to USB flash drive in CSV format at configurable intervals, enabling offline analysis in Excel or SCADA historian import without requiring a network connection to the HMI.
• Backlight lifetime management: The CCFL/LED backlight assembly is rated for 50,000 hours MTBF. MCGS MCGSE supports configurable backlight dimming and auto-off timers, extending physical backlight life in applications where the panel is powered continuously but operator interaction is infrequent.
• Firmware update via USB: Runtime firmware and project files can be updated via USB Device port without opening the control cabinet, reducing maintenance downtime and eliminating the need for a laptop connection to the panel’s internal programming port.
• Diagnostic transparency: The MCGS runtime exposes a built-in system information screen showing CPU load percentage, communication port status, active alarm count, and free flash storage — accessible to maintenance personnel without requiring MCGSE software or a laptop on-site.

Quality Assurance & Global Logistics

Every MCGS TPC1062K unit dispatched from our Xiamen, China facility is a factory-original component sourced through verified MCGS distribution channels. Each unit carries a manufacturer serial number that is cross-referenced against MCGS factory production records prior to shipment. Units are inspected for correct firmware version, physical label integrity, and packaging condition. A functional power-on test confirms display output, touch response, and communication port initialization before the unit is sealed for dispatch.

Logistics from Xiamen cover all major international trade lanes. Express shipments via DHL, FedEx, or UPS reach most destinations in East Asia within 2–4 business days, Southeast Asia within 3–5 business days, Europe and North America within 5–8 business days. Economy air freight options are available for cost-sensitive orders. Full export documentation — commercial invoice, packing list, and certificate of origin — is provided for customs clearance. Bulk orders of 5 or more units qualify for sea freight consolidation with lead times of 25–40 days depending on destination port. All shipments include end-to-end tracking and are covered by transit insurance.

The 12-month warranty covers manufacturing defects under normal operating conditions. Warranty claims are processed via email with photographic evidence; replacement units are dispatched within 3 business days of claim approval. No-fault returns are accepted within 30 days of receipt for units that fail incoming inspection at the buyer’s facility.
