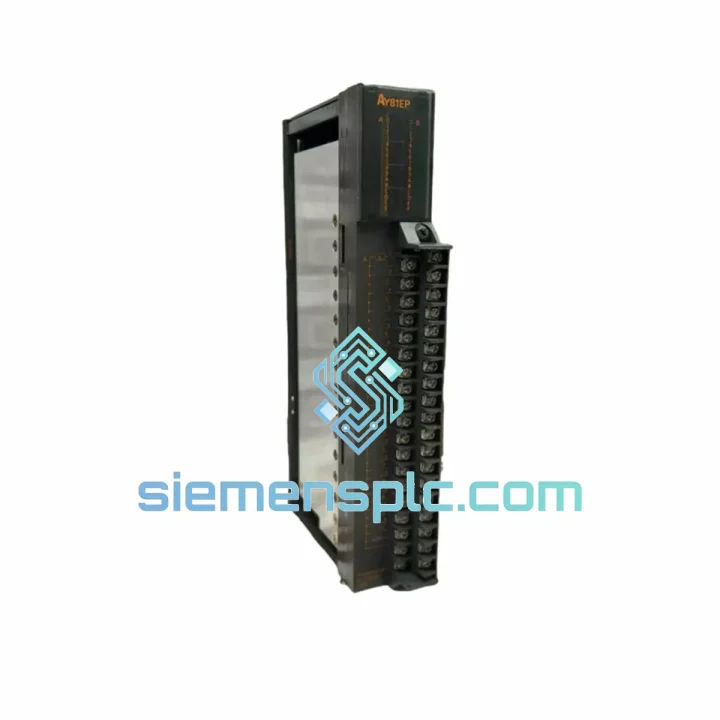

Mitsubishi AY81 PLC Output Module

Mitsubishi AY81 — Stop the Clock on Your Downtime. Ship Today from Xiamen.

Your line is down. Every hour costs real money — lost output, idle labor, delayed shipments. The Mitsubishi Electric AY81 is a 16-point transistor digital output module for the MELSEC-A Series PLC platform, and when this card fails, nothing moves. We stock it. We ship it fast. DHL/FedEx express from Xiamen, China — door to your panel in 3–5 business days to most global destinations.

This is not a gray-market listing. Every AY81 we supply is sourced through verified industrial channels, inspected before dispatch, and shipped with full traceability. If your maintenance team is standing by waiting for a part, this is the call you make.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The AY81 fails in predictable ways. Here is what field experience tells you before you even pull the module:

• Symptom: Outputs stuck ON or OFF, CPU shows no fault. Classic transistor latch-up from inductive kickback. Check your solenoid valve wiring — missing flyback diodes on the load side will kill output transistors one by one. Replace the AY81 and add suppression diodes (1N4007 or equivalent) across each inductive load before powering back up.
• Symptom: Intermittent output drop-out on specific points. Photocoupler degradation from sustained overcurrent. Measure actual load current per point — if any channel is pulling close to or above 0.1 A continuously, you are running at the edge. Derate to 80% or interpose a relay.
• Symptom: CPU reports I/O error on slot X, module LED off. Backplane connector contamination or bent pins. Before condemning the AY81, reseat the module, clean the 40-pin connector with IPA, and re-test. If the error follows the module to a different slot, the card is confirmed faulty.
• Replacement procedure — no DIP switches, no addressing: The AY81 is a local unit module. It does not require manual address setting. Slot position on the A-Series base unit determines its I/O address automatically via the backplane bus. Power down the rack, swap the module, power up — the CPU reads the new card on the next scan cycle. No GX Developer parameter change is needed unless you are changing slot position.
• AY81 vs AY81S vs AY81E: The AY81 fits standard A-format base units. The AY81S is the slim (AnS) form factor — physically incompatible. The AY81E is the CE-marked European variant with identical electrical specs and is a functional drop-in replacement. Confirm your base unit format before ordering.
• Firmware: This is a pure hardware I/O module with no embedded firmware. No firmware update or version matching is required. It is fully compatible with all MELSEC-A CPU generations.
• Common fault codes: SP.UNIT DOWN (CPU detects module absence or bus fault), I/O VERIFY ERROR (mismatch between parameter file and installed hardware). Both clear after correct module installation and CPU reset.

Reliability in Harsh Conditions

The MELSEC-A Series was engineered for factory floors, not server rooms. The AY81 reflects that design philosophy. Photocoupler isolation between the 5 VDC logic side and the 12–24 VDC field side means ground faults and voltage spikes on your field wiring do not propagate into the CPU backplane. The module is rated to IEC 61131-2 for vibration and shock — the same standard used to qualify equipment for continuous operation on stamping presses, compressors, and heavy conveyor systems.

Operating range of 0–55 °C covers the vast majority of industrial panel environments, including non-air-conditioned enclosures in tropical climates. Storage down to −25 °C means modules held as critical spares in unheated warehouses remain fully serviceable. The 5–95% RH non-condensing humidity rating handles coastal and high-humidity manufacturing environments without derating.

Each AY81 we ship has been stored in anti-static packaging, inspected for physical integrity, and verified for connector pin condition. We do not ship modules with bent pins, cracked housings, or missing labels. If a unit does not pass our pre-shipment check, it does not leave our warehouse.

Global Express Logistics

We operate from Xiamen, China — one of the country’s primary export hubs with direct access to DHL, FedEx, and UPS international express networks. When you place an order before 3:00 PM CST on a business day, same-day dispatch is our standard, not a premium option.

• DHL Express Worldwide: 2–4 business days to Europe, North America, Southeast Asia, Middle East, and Australia. Real-time tracking from pickup to delivery.
• FedEx International Priority: 1–3 business days to the US and Canada. Ideal for critical shutdowns where every hour counts.
• UPS Expedited: Available for destinations where DHL/FedEx coverage is limited.
• Customs & Documentation: We prepare commercial invoices, packing lists, and HS Code 8537.10 declarations for every shipment. For destinations requiring additional import documentation (CE declaration, country-of-origin certificate), contact us before ordering and we will prepare the paperwork in advance.
• Emergency same-day courier: For customers in mainland China or Hong Kong, local same-day delivery via SF Express is available. Contact us directly to arrange.

We have shipped MELSEC-A modules to automotive plants in Germany, food processing facilities in Australia, petrochemical sites in the Middle East, and semiconductor fabs in Southeast Asia. The logistics process is proven. Your part arrives when you need it.
