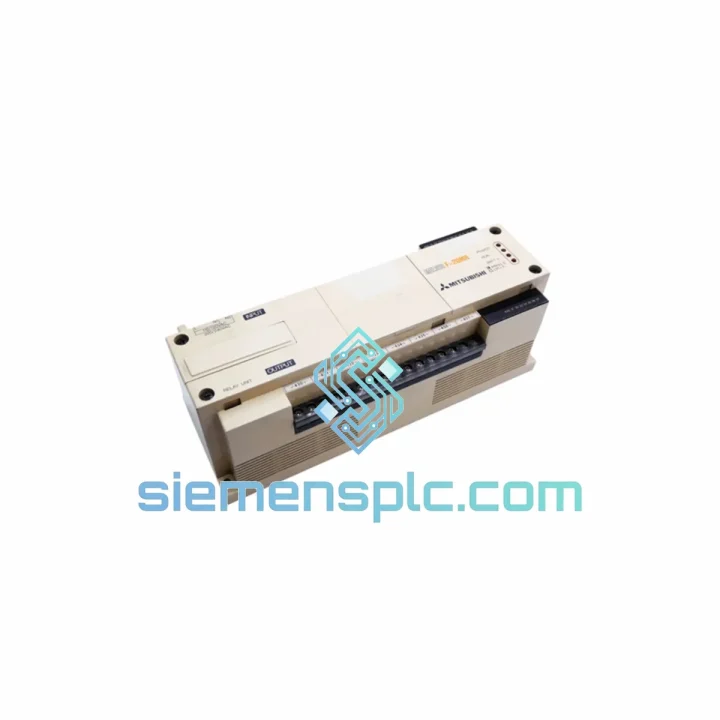

Mitsubishi Electric F1-20MR PLC

F1-20MR Down? Every Minute Costs Money — We Ship Same Day from Xiamen

Your line stopped. The F1-20MR is dead — no outputs, no scan, no heartbeat on the RUN LED. You’ve already pulled the unit, confirmed it’s not a power supply issue, and now you need a replacement today, not in three weeks. We stock the Mitsubishi Electric F1-20MR and ship globally via DHL Express and FedEx International Priority. From our Xiamen warehouse to your dock in 48–72 hours. No excuses, no runaround.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure modes on the F1-20MR that field engineers encounter:

1. RUN LED off, no outputs — CPU lockup or EEPROM corruption. Before condemning the CPU, check the battery voltage (if fitted on your variant). A dead backup battery causes program loss on power cycle. If the unit powers up but immediately faults, attempt a full memory clear: hold RESET while powering on, then re-download your ladder program. If the unit won’t accept a download or the programmer throws a communication error, the CPU is likely failed — replace the F1-20MR.

2. Relay outputs chattering or failing to energize. The MR relay contacts on the F1-20MR are rated 2A per point. Inductive loads without suppression diodes or RC snubbers will arc the contacts over time. Before installing the replacement unit, verify all output loads have proper suppression. Measure coil inrush on contactors and solenoids. Burned relay contacts are a symptom of an upstream wiring problem — fix it before you burn the new board.

3. Input LEDs lit but no program response. Check the input common wiring. The F1-20MR uses a shared common for input groups. A broken common wire will cause an entire input group to appear dead in the program even though individual input LEDs may flicker. Verify COM terminal continuity with a multimeter before assuming CPU failure.

4. Communication errors with handheld programmer. The F1-20MR uses a proprietary peripheral port — not RS-232C standard pinout. Confirm you’re using the correct F1-series programming cable (SC-09 or equivalent). Baud rate mismatch is a common issue: the F1 peripheral port defaults to 9,600 bps. If using a USB-to-serial adapter, verify the adapter’s COM port latency settings in Device Manager — high latency causes timeout errors that mimic CPU faults.

Replacement procedure checklist (field-tested):

• Document all I/O wiring with photos before disconnecting — the F1-20MR terminal layout is straightforward but mistakes under pressure are costly.
• Back up the existing program to a handheld programmer or PC before powering down, if the unit is still partially functional.
• Verify the replacement unit’s firmware revision matches your existing expansion modules. F1-series expansion compatibility is revision-sensitive.
• After installation, perform a full I/O force test before returning to AUTO mode — verify each relay output clicks and each input registers correctly.
• Check DIN rail grounding. The F1-20MR chassis ground must be bonded to the panel earth. Floating ground causes intermittent noise faults that are nearly impossible to diagnose remotely.
• If the machine uses F1-series expansion modules (F1-8EX, etc.), power the base unit first, confirm RUN status, then power expansion racks. Hot-swapping expansion modules is not supported.

Reliability in Harsh Conditions

The MELSEC-F1 platform was engineered for the factory floor, not the server room. The F1-20MR operates continuously in environments that would kill consumer-grade electronics within weeks. Vibration resistance is built into the PCB mounting and component selection — conformal coating on the main board protects against condensation and airborne contaminants common in food processing and chemical plants. The relay output section uses industrial-grade relays with mechanical life ratings exceeding 10 million operations under rated load.

Operating temperature range of 0°C to 55°C covers the majority of industrial panel environments, including outdoor enclosures in subtropical climates. The unit’s EEPROM-based program storage means no battery dependency for program retention in most configurations — your ladder logic survives power outages without data loss. EMC immunity is designed to IEC 61000 standards, making the F1-20MR tolerant of the electrical noise generated by VFDs, servo drives, and large motor starters sharing the same panel.

Units sourced through siemensplc.com are inspected for physical integrity, label authenticity, and connector condition prior to dispatch. Anti-static packaging and foam-lined cartons protect the PCB during international transit. Every unit ships with a basic functional verification record.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian Province — one of China’s primary export ports with direct DHL and FedEx gateway access. Here’s how your order moves:

• Order confirmed before 14:00 CST: Same-day dispatch in most cases.
• DHL Express Worldwide: Xiamen → Europe in 2–3 business days. Xiamen → North America in 3–4 business days. Xiamen → Southeast Asia in 1–2 business days.
• FedEx International Priority: Available as an alternative carrier for destinations where FedEx has stronger coverage or lower duties.
• Export documentation: Commercial invoice, packing list, and HS code declaration (HS 8537.10) prepared for customs clearance. DDP (Delivered Duty Paid) terms available on request for select destinations.
• Tracking: AWB number provided within 2 hours of dispatch. Real-time tracking link sent via email and WhatsApp.
• Emergency freight: For critical shutdowns requiring next-flight-out courier, contact us directly on WhatsApp for manual booking — we’ve moved parts to active shutdown sites in under 24 hours.

We understand that a PLC sitting in a box in Xiamen is worthless to you. Speed and reliability of delivery is not a marketing claim — it’s the core of what we do.
