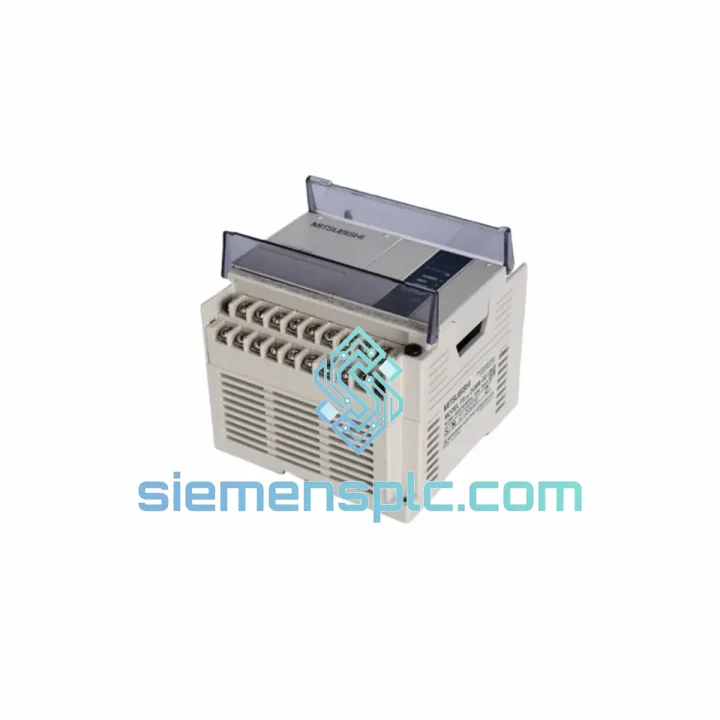

Mitsubishi FX1N-40MR-001 Programmable Logic Controller

FX1N-40MR-001 Down? Every Minute of Downtime Costs You Money — We Ship Today

Your line stopped. The FX1N-40MR-001 is dead. You’ve already called your local distributor and heard the words no engineer wants to hear: “Lead time is 6–8 weeks.” That’s not an option when a halted production line is burning through thousands of dollars per hour.

We stock the Mitsubishi FX1N-40MR-001 in Xiamen and ship globally via DHL Express and FedEx Priority. Order confirmed before 3 PM CST — your unit leaves the same day. No excuses, no delays. This is what we do.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work, here are the failure patterns I see most often with the FX1N-40MR-001 and what to watch for when you’re doing a hot swap under pressure.

Common Failure Modes:

• Relay output contact wear (Y0–Y7): The MR variant uses mechanical relays. High-cycle applications — particularly those switching inductive loads like solenoids or motor contactors without snubber circuits — will burn out output contacts within 18–24 months. Symptom: output coil energizes in software but field device doesn’t respond. Confirm with a multimeter across the output terminals before condemning the CPU.
• Power supply section failure: Brownouts and voltage spikes on the AC input side are the #1 killer of FX1N base units in developing-market installations. The internal SMPS is not protected against sustained undervoltage. If the unit won’t power on and the fuse is intact, measure AC input at the terminal block first.
• RS-422 port corruption: Caused by improper cable shielding or ground loops between the PLC and programming PC. Symptom: GX Developer/GX Works2 cannot establish communication even with correct COM port settings. Try a known-good SC-09 cable and verify the FX1N-40MR-001 is not sharing a ground reference with a VFD.
• Battery-backed RAM data loss: The onboard lithium battery (CR2032 equivalent) has a rated life of approximately 5 years. If the unit powers up but program is blank or corrupted, check the BAT LED. Always back up the program to GX Works2 before pulling the old unit.
• Expansion bus communication fault (E6 error): Occurs when an expansion module is connected but not recognized. Caused by a bent connector pin on the right-side expansion port or a failed expansion module. Isolate by disconnecting all expansion units and powering up the base unit alone.

Step-by-Step Hot Swap Procedure:

1. Back up the existing program via GX Works2 or GX Developer — even if the unit appears dead, attempt a read first. Some units with failed outputs still have intact CPU/RAM.
2. Document all wiring terminal assignments with photos before disconnecting. The FX1N-40MR-001 terminal layout is standard, but field wiring modifications are common.
3. Power down the panel. Disconnect AC input first, then I/O wiring, then the RS-422 programming cable.
4. Remove the failed unit from the DIN rail. Inspect the expansion connector on the right side for physical damage before installing the replacement.
5. Mount the new FX1N-40MR-001. There are no DIP switches or address settings on this base unit — it is not self-addressing in the traditional sense. I/O addressing is fixed by hardware position (X0–X23 inputs, Y0–Y15 outputs).
6. Reconnect all wiring. Verify terminal torque: 0.5–0.8 N·m on the screw terminals.
7. Download the backed-up program via GX Works2. Verify the PLC type is set to FX1N in the project settings — do not use an FX2N or FX3U project file without conversion.
8. Set the RUN/STOP switch to STOP, power up, confirm no error LEDs, then switch to RUN. Monitor the first 5 minutes of operation for any output anomalies.

Firmware & Software Compatibility Note: The FX1N-40MR-001 is compatible with GX Works2 (all versions) and GX Developer 8.x. It is NOT compatible with GX Works3. If your site uses GX Works3 exclusively, you will need to install GX Works2 on a separate machine for this unit.

Reliability in Harsh Conditions

The FX1N-40MR-001 was not designed for a climate-controlled server room. It was built for the factory floor — and it shows.

The unit operates continuously from 0°C to 55°C ambient, which covers the vast majority of industrial environments including outdoor enclosures in subtropical climates. The relay output contacts are rated for 200,000 operations at rated load — adequate for most machine cycle applications, though high-frequency switching applications should use the transistor output variant (FX1N-40MT-001).

Vibration resistance is rated to IEC 61131-2: 10–57 Hz at 0.075 mm amplitude, 57–150 Hz at 9.8 m/s². In practice, this means the unit survives direct mounting on press frames and compressor skids without additional isolation — something I’ve verified personally on multiple installations.

The conformal-coated PCB inside the FX1N-40MR-001 provides meaningful protection against humidity and airborne contaminants. Units installed in coastal facilities with salt-laden air have demonstrated multi-year service lives when the enclosure door seal is maintained. The IP20 rating refers to the external housing only — the internal electronics are better protected than the rating implies.

Electrostatic discharge and conducted EMI immunity are tested to IEC 61000-4 series standards. The unit coexists reliably with VFDs, welding equipment, and high-current motor starters when proper cable segregation and grounding practices are followed. If you’re seeing spurious input triggers near a VFD, add ferrite cores to the input wiring before condemning the PLC.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes. This is not a drop-ship operation. Stock is physically on our shelves, inspected, and ready to pack.

Shipping workflow for the FX1N-40MR-001:

• Order confirmed before 3 PM CST (UTC+8): Unit is picked, tested, and packed the same afternoon. DHL or FedEx collection occurs that evening.
• DHL Express Worldwide: Transit time 2–4 business days to most destinations in Southeast Asia, Europe, Middle East, and North America. Real-time tracking from Xiamen to your door.
• FedEx International Priority: Available for destinations where FedEx has stronger coverage. Comparable transit times to DHL.
• Export documentation: Commercial invoice, packing list, and certificate of origin prepared same day. HS Code 8537.10 applies to this product. We handle all export customs clearance from the China side.
• Import duties: Buyer is responsible for import duties and taxes at destination. We can declare at actual value or provide documentation to support your customs broker.
• Packaging: The FX1N-40MR-001 ships in anti-static foam-lined carton with humidity indicator card. Outer carton is double-walled corrugated. Units arrive in the same condition they left.

We have shipped to over 40 countries. If your freight forwarder requires specific documentation formats or you need to route through a consolidation hub, contact us before ordering and we will accommodate.
