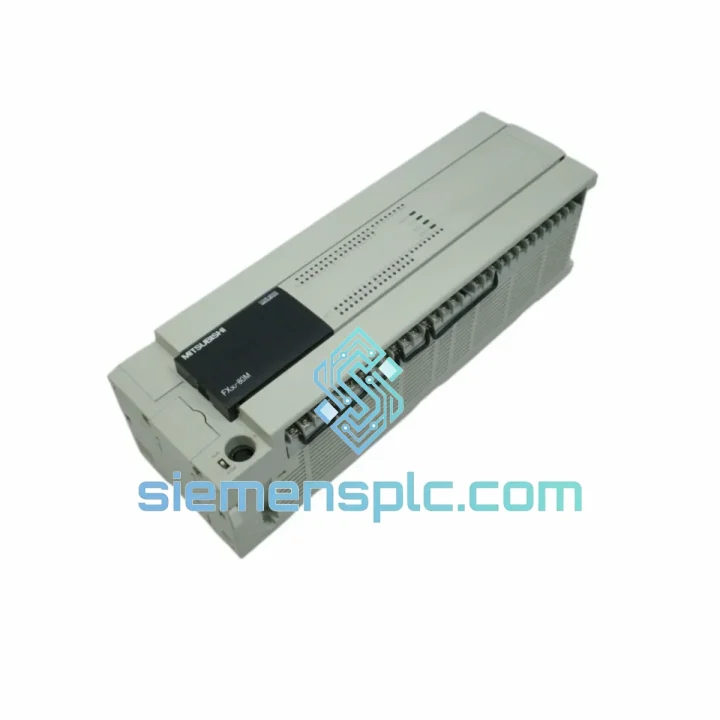

Mitsubishi FX3U-80MR/ES Programmable Logic Controller

Mitsubishi FX3U-80MR/ES — A Procurement Manager’s Sourcing Playbook for the World’s Most Deployed Compact PLC

When a production line goes down, every minute of unplanned downtime carries a measurable cost — lost throughput, idle labor, expedited logistics, and the reputational weight of missed delivery commitments. For facilities running Mitsubishi’s FX3U-80MR/ES, the question is rarely whether to maintain a spare inventory of this controller; it is how to source it at the right price, with verified authenticity, and with a supply chain that does not collapse under lead-time pressure.

The FX3U-80MR/ES is a high-volume, globally distributed component. It is not a niche or end-of-life rarity — it is a workhorse. That classification shapes the entire procurement strategy: the priority is price discipline, stock availability, and a supplier relationship that can absorb surge demand without inflating unit cost. siemensplc.com maintains forward stock of this model specifically because its demand profile is predictable and its application base is broad. Procurement teams sourcing for MRO budgets, capital projects, or emergency replacement will find a consistent offer here, not a spot-market gamble.

This page is written for engineers, maintenance managers, and supply chain professionals who need more than a datasheet. It covers the full acquisition context: technical parameters, lead-time expectations, total cost of ownership modeling, compliance posture, and the logistics advantage of sourcing from Xiamen — one of China’s most active industrial export hubs.

Request an Official Quote: [email protected] | WhatsApp: +86 18359268345

Procurement Specifications

• Manufacturer: Mitsubishi Electric (MELSEC Division)
• Full Model Number: FX3U-80MR/ES
• Series: FX3U — Third-Generation Micro-PLC Platform
• I/O Configuration: 80 points total — 40 digital inputs / 40 relay outputs
• Output Type: Relay (MR designation) — suitable for AC and DC load switching
• Power Supply: AC 100–240 V, 50/60 Hz (ES designation)
• Program Memory: 64,000 steps (with optional memory cassette expansion)
• Instruction Processing Speed: 0.065 μs per basic instruction
• Built-in Communication: RS-422 port (standard); expandable via FX3U-232ADP, FX3U-485ADP option boards
• High-Speed Counter Channels: 6 channels, up to 100 kHz
• Pulse Output Axes: 3 independent axes (transistor output variant required for full pulse performance)
• Maximum Expandable I/O: 256 points via FX3U expansion modules
• Analog Expansion: FX3U-4AD (input) / FX3U-4DA (output) adapters
• Operating Temperature Range: 0 °C to 55 °C
• Storage Temperature: −25 °C to 75 °C
• Enclosure Protection: IP20
• Dimensions (W × H × D): 220 × 90 × 87 mm
• Approximate Weight: 900 g
• Certifications: CE, UL, cUL
• Country of Origin: Japan
• HS Code (reference): 8537.10
• Lead Time: In-stock units ship within 1–3 business days from Xiamen. For bulk orders exceeding 10 units, allow 5–10 business days for consolidation and export documentation. Emergency single-unit orders can be dispatched same day upon payment confirmation before 14:00 CST.

Total Cost of Ownership (TCO) Analysis

Procurement decisions evaluated purely on unit price routinely underestimate the true cost of a controller acquisition. A rigorous TCO framework for the FX3U-80MR/ES must account for four cost categories: acquisition cost, downtime risk cost, maintenance cost, and end-of-life transition cost.

Acquisition Cost: The FX3U-80MR/ES sits in a mid-range price band for its I/O class. Authorized distributor pricing in Western markets typically carries a 40–80% channel markup over Asia-Pacific wholesale pricing. Sourcing directly from a specialist supplier in Xiamen — with verified stock and export compliance — compresses that gap significantly. For a facility running 10–50 units across multiple lines, the delta between distributor list price and wholesale procurement can represent a five-figure annual saving on MRO spend alone, before factoring in volume agreements.

Downtime Risk Cost: The FX3U-80MR/ES is a mature, high-reliability platform with a documented MTBF exceeding 100,000 hours under standard operating conditions. However, relay output contacts have a finite mechanical life — typically 200,000 operations at rated load. In high-cycle applications (packaging, conveyor indexing, press control), relay wear is the primary failure mode. Maintaining one spare unit per 5–8 installed units is a widely adopted MRO ratio in facilities with zero-tolerance downtime requirements. At siemensplc.com, forward stock availability means that spare procurement does not require a 6–12 week factory lead time — a critical distinction when a line failure occurs on a Friday afternoon before a public holiday.

Maintenance Cost: The 12-month warranty provided on every unit sourced through siemensplc.com directly offsets the cost of early-life failures — a category that accounts for a disproportionate share of unplanned maintenance events. Beyond warranty coverage, the FX3U’s compatibility with GX Works2 means that in-house engineering teams can perform diagnostics, program backup, and parameter restoration without third-party service contracts. The total maintenance burden per unit per year, when sourced with warranty coverage and supported by an accessible spare inventory, is materially lower than equivalent controllers requiring proprietary service agreements.

End-of-Life Transition Cost: Mitsubishi has positioned the FX3U series as a mature platform, with the FX5U as the designated successor. For facilities with existing FX3U installations, the transition cost — reprogramming, rewiring, HMI reconfiguration, and revalidation — is substantial. Extending the operational life of existing FX3U infrastructure through reliable spare sourcing defers that capital expenditure and preserves the embedded engineering investment in existing ladder logic programs. From a CAPEX planning perspective, each additional year of FX3U operational life represents a deferral of upgrade costs that can be redeployed to higher-priority capital projects.

In aggregate, the TCO case for sourcing FX3U-80MR/ES through a specialist wholesale supplier is straightforward: lower unit acquisition cost, reduced downtime exposure through stock availability, warranty coverage that offsets early-life maintenance, and a procurement relationship that supports the extended operational life of existing infrastructure.

Quality & Compliance Assurance

The industrial automation components market carries a well-documented counterfeit risk, particularly for high-volume Mitsubishi PLC models. The FX3U-80MR/ES is among the most replicated controllers in the Asia-Pacific grey market. siemensplc.com operates a structured verification protocol to eliminate counterfeit exposure from the supply chain.

Every unit is subject to physical inspection against Mitsubishi’s published label specifications, including holographic seal verification, serial number format validation, and housing dimensional checks. Functional power-on testing confirms basic I/O response and communication port integrity prior to shipment. Units that do not pass inspection are quarantined and not offered for sale.

On the compliance side, all export transactions are processed through Xiamen Customs with full HS code declaration under 8537.10, accurate valuation, and complete commercial invoice documentation. This matters for buyers in regulated industries — pharmaceutical, food and beverage, automotive — where import documentation must be audit-ready. Multi-currency payment is supported, including USD, EUR, HKD, and CNY, with formal invoicing available in the buyer’s preferred currency for accounting and tax purposes.

The 100% genuine product commitment is not a marketing claim — it is a commercial guarantee backed by a 12-month warranty and a documented returns process. If a unit fails within the warranty period due to a manufacturing defect, siemensplc.com will replace it or issue a full credit. That guarantee is the operational foundation of a procurement relationship, not an afterthought.

Strategic Sourcing from Xiamen

Xiamen occupies a specific and advantageous position in the global industrial components supply chain. As a designated Special Economic Zone and one of China’s five original SEZs, Xiamen has developed a mature export infrastructure that combines competitive logistics costs with regulatory compliance depth that is not uniformly available from inland suppliers.

The port of Xiamen handles over 12 million TEUs annually and maintains direct shipping connections to major industrial import hubs in Europe, Southeast Asia, the Middle East, and the Americas. For air freight — the preferred mode for urgent PLC replacements — Xiamen Gaoqi International Airport offers daily connections to Hong Kong, Singapore, Frankfurt, and Dubai, enabling next-day or two-day delivery to most major industrial markets.

From a procurement risk perspective, sourcing from Xiamen rather than from a domestic distributor in the buyer’s home market offers a structural cost advantage without sacrificing delivery reliability. The combination of competitive wholesale pricing, export-compliant documentation, and access to multiple freight modes — DHL Express, FedEx International Priority, TNT, and sea freight consolidation — gives procurement teams genuine flexibility to match shipping cost to urgency. A planned MRO replenishment order can move by sea at minimal freight cost; an emergency replacement can be on a plane within hours of order confirmation.

siemensplc.com’s operational base in Xiamen is not incidental — it is a deliberate sourcing architecture designed to serve industrial buyers who need both price discipline and delivery reliability from a single supplier relationship.
