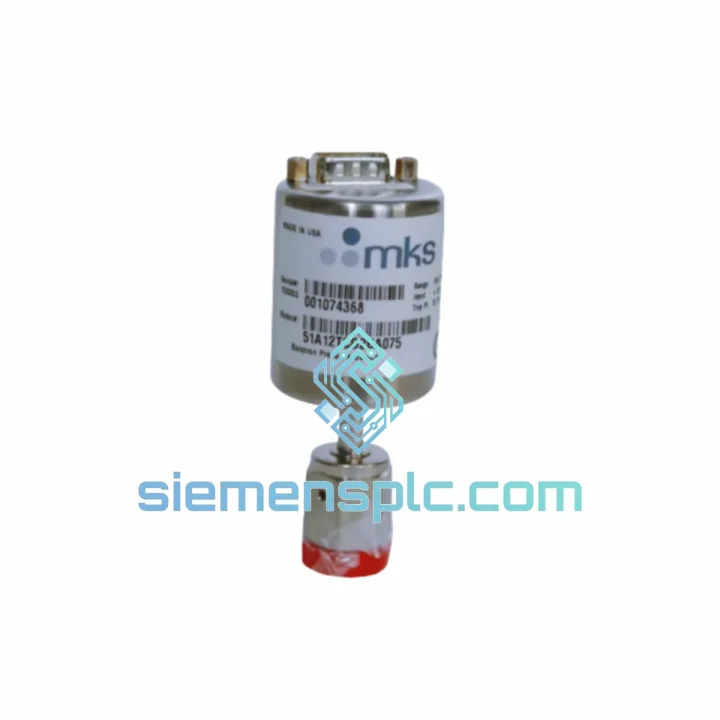

MKS 51A12TCD2BA075 Capacitance Manometer – Baratron Type 51A

MKS 51A12TCD2BA075 – Baratron Type 51A Capacitance Manometer in Vacuum Process Control Architecture

The MKS 51A12TCD2BA075 is a full-scale 75 Torr capacitance manometer from MKS Instruments’ Baratron Type 51A series. It operates on the principle of differential capacitance measurement between a tensioned Inconel diaphragm and fixed reference electrodes, delivering absolute pressure readings independent of gas species composition. This characteristic makes it the preferred sensing element in process-critical vacuum environments where gas mixture variability would compromise thermal-conductivity or ionization-based gauges.

In a closed-loop pressure control architecture, the 51A12TCD2BA075 functions as the primary feedback transducer. Its analog output — typically 0–10 VDC scaled to full-scale range — feeds directly into a pressure controller such as the MKS Type 651 or 252, which in turn modulates a throttle valve to maintain setpoint. The transducer’s low thermal drift and high repeatability (±0.15% of reading, typical) ensure that the control loop maintains tight pressure regulation across extended process runs without recalibration offsets accumulating in the feedback chain.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The Type 51A capacitance manometer employs a dual-electrode capacitive bridge topology. The sensing diaphragm — fabricated from Inconel 600 alloy — is suspended between two fixed ceramic electrodes. Under vacuum, differential pressure deflects the diaphragm, altering the capacitance ratio C1/C2 between the two electrode gaps. An internal AC excitation circuit (typically 10 kHz carrier) drives the bridge, and a synchronous demodulator extracts the differential signal, which is then linearized and scaled to the 0–10 VDC output range.

The Inconel diaphragm geometry is precision-machined to maintain a linear deflection-to-capacitance relationship across the full 75 Torr range. Diaphragm pre-tension is factory-set to minimize hysteresis below 0.02% FS. The ceramic electrode substrate provides dimensional stability across the operating temperature range, suppressing thermally induced zero drift to below 0.02% FS/°C — a critical parameter in process chambers where wall temperatures fluctuate during recipe transitions.

EMC performance is achieved through a fully shielded stainless-steel housing with internal Faraday cage geometry around the capacitive sensing element. The signal conditioning PCB employs ground-plane isolation between the high-impedance capacitive front-end and the output driver stage, reducing susceptibility to radiated RF interference from RF plasma generators operating at 13.56 MHz — a common noise source in CVD and etch chambers. The output stage is short-circuit protected and drives cable loads up to 500 pF without signal degradation, supporting cable runs of up to 10 meters in standard installations.

The internal reference vacuum cavity is hermetically sealed at the factory under high vacuum (<10⁻⁶ Torr), establishing the absolute pressure reference. This sealed reference eliminates the need for periodic zeroing against an external reference standard, a significant operational advantage in continuous-process environments where gauge removal for calibration incurs downtime costs.

System Integration Benefits

• Gas-species independence: Capacitance measurement is a purely mechanical phenomenon — the output is unaffected by gas molecular weight, thermal conductivity, or ionization potential. This eliminates the correction factor tables required for thermal or ionization gauges when process gas composition changes between recipes.
• Deterministic analog output latency: The 0–10 VDC analog output has a response time below 20 ms for a 10–90% full-scale step, providing the pressure controller with a low-latency feedback signal that supports proportional-integral control loops with update rates up to 50 Hz.
• Direct controller compatibility: The ±15 VDC supply and 0–10 VDC output are natively compatible with MKS Type 651, 252, and 248 pressure/flow controllers, as well as third-party PLC analog input modules operating on 0–10 V input ranges, eliminating signal conditioning hardware.
• Absolute pressure reference: The factory-sealed internal reference cavity provides a stable absolute pressure datum without requiring a separate reference port or differential pressure configuration, simplifying installation in single-port vacuum chamber fittings.
• Long-term zero stability: Zero drift below 0.02% FS/°C and a hermetically sealed reference cavity ensure that the gauge’s zero point remains stable across thermal cycles, reducing the frequency of scheduled calibration interventions in production environments.
• Corrosion-resistant wetted path: The Inconel diaphragm and ceramic electrode assembly are compatible with the majority of semiconductor process gases including N₂, Ar, O₂, H₂, NF₃, and dilute halogen mixtures, without requiring a heated gauge body for condensation prevention in most standard applications.
• Diagnostic transparency: The linear analog output allows the process control system to log continuous pressure traces at the controller’s sampling rate, providing full process history for statistical process control (SPC) analysis and fault signature identification without additional instrumentation.
• Mechanical robustness: The stainless-steel housing and Inconel diaphragm construction withstand atmospheric pressure exposure during chamber venting cycles without diaphragm overload damage, provided the gauge is not exposed to pressures exceeding 1.5× full scale for extended periods.

Quality Assurance & Global Logistics

Every MKS 51A12TCD2BA075 unit supplied through siemensplc.com is sourced from verified OEM supply channels. Each unit is inspected upon receipt for physical integrity, connector condition, and label authenticity. Functional verification is performed against MKS factory output specifications prior to shipment. Units are packaged in anti-static foam-lined enclosures with desiccant inserts to prevent moisture ingress during transit.

Shipments originate from our warehouse in Xiamen, China, with access to DHL Express, FedEx International Priority, and UPS Worldwide Express services. Standard international transit times are 3–5 business days to major industrial hubs in Europe, North America, Southeast Asia, and the Middle East. Sea freight consolidation is available for bulk orders. All shipments include commercial invoice, packing list, and certificate of origin documentation. A 12-month warranty covers manufacturing defects from the date of shipment. Replacement or repair is arranged without requiring return of the defective unit for low-value claims.
