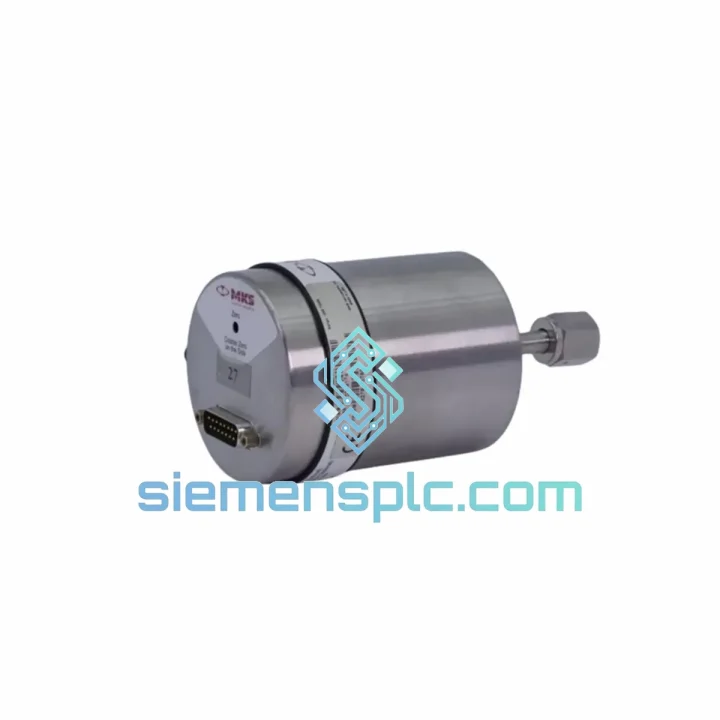

MKS 627B-15789 Pressure Transducer – Baratron Series

MKS 627B-15789 Baratron Absolute Pressure Transducer — Precision Vacuum Measurement for Process-Critical Environments

The MKS 627B-15789 is a temperature-controlled capacitance manometer engineered for absolute pressure measurement in sub-atmospheric and high-vacuum process systems. Unlike thermal conductivity gauges or ionization sensors, the Baratron 627B series operates on a gas-species-independent capacitance sensing principle: a tensioned Inconel® diaphragm deflects in response to differential pressure between the process side and a sealed internal reference vacuum. The resulting capacitance shift is converted to a calibrated 0–10 VDC analog output with a full-scale accuracy of ±0.25% of reading. This measurement architecture eliminates the cross-sensitivity errors that arise when process gas composition changes — a failure mode that directly compromises recipe repeatability in CVD, ALD, and etch chambers.

The sensor head is thermally stabilized at 45°C via an integrated heater-controller circuit. This controlled-temperature design prevents condensation of process by-products on the diaphragm surface and suppresses zero-point drift caused by ambient temperature fluctuations in the fab environment. Long-term zero stability is rated at less than 0.02% of full scale per year, which extends calibration intervals and reduces scheduled maintenance downtime in continuous-operation facilities.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 627B-15789 employs a three-electrode capacitance bridge topology. The sensing diaphragm forms the variable plate of a differential capacitor; two fixed electrodes on either side of the diaphragm detect the capacitance imbalance produced by diaphragm deflection. An on-board ASIC converts the bridge imbalance to a linearized voltage output, applying temperature compensation coefficients stored in non-volatile memory during factory calibration. The result is a measurement chain with no moving parts beyond the diaphragm itself, and no consumable elements — a significant reliability advantage over ionization gauges that require filament replacement.

The 45°C thermal control loop uses a proportional heater circuit with a thermistor feedback element embedded in the sensor body. Thermal settling time from cold start to within ±0.1°C of setpoint is typically under 15 minutes, after which the zero offset remains stable to within the rated 0.02% FS/year specification. The Inconel diaphragm provides corrosion resistance against aggressive halogen-based process gases including Cl₂, HF, NF₃, and BCl₃ — gases routinely used in silicon etch and chamber clean cycles. The all-metal wetted surface design eliminates outgassing from polymer seals, which is a critical requirement for base pressure integrity in UHV-adjacent applications.

EMC performance is addressed through the shielded cable assembly and the grounded metal enclosure of the sensor head. The 0–10 VDC output impedance is low enough to drive standard analog input cards over cable runs up to 10 meters without signal degradation, and the output is short-circuit protected to prevent damage during wiring commissioning.

System Integration Benefits

• Gas-Independent Absolute Measurement: Capacitance sensing responds to true molecular pressure regardless of gas species — no correction factors required when switching between N₂, Ar, H₂, or reactive process gases, eliminating a systematic error source in multi-recipe chambers.
• Direct Analog Compatibility with MKS Ecosystem: The 0–10 VDC output is plug-and-play with MKS 246, 647C, 250E, and PR4000B multi-channel controllers, as well as any standard 0–10 V analog input PLC or DCS module, reducing integration engineering time.
• Deterministic Pressure Feedback for Closed-Loop Control: The low-latency analog output enables tight throttle valve control loops (e.g., MKS 253, VAT series) with pressure setpoint deviation typically held within ±1 mTorr in stable process conditions.
• Extended Calibration Intervals: Zero stability of <0.02% FS/year allows calibration intervals of 18–24 months in stable environments, reducing scheduled downtime compared to thermal gauges requiring quarterly verification.
• Condensation-Free Operation: The 45°C heated sensor head prevents process by-product condensation on the diaphragm, maintaining measurement accuracy during chamber conditioning and wet-chemistry-adjacent processes.
• Corrosion-Resistant Wetted Path: Inconel diaphragm and all-metal construction withstand halogen-based etch chemistries without diaphragm fatigue or zero-point shift, extending service life in aggressive process environments.
• Foreline and Chamber Dual-Point Monitoring: The compact form factor and standard CF/VCR process connection allow simultaneous installation on both the process chamber and the foreline, providing base pressure verification and process pressure control from a single instrument family.
• Diagnostic Transparency: The linear 0–10 VDC output can be logged directly by SCADA or historian systems without protocol conversion, enabling trend analysis of zero drift, span shift, and process pressure excursions over time.

Quality Assurance & Global Logistics

Each MKS 627B-15789 unit supplied through siemensplc.com is sourced as genuine OEM hardware. Pre-shipment inspection covers zero offset verification, span accuracy check against a traceable reference standard, connector integrity, and heater circuit function. Units are packaged in anti-static, nitrogen-purged enclosures to preserve diaphragm cleanliness and prevent moisture ingress during transit. A 12-month warranty from the date of shipment covers manufacturing defects and measurement performance within the rated specification envelope.

Logistics operations are based in Xiamen, China, with established freight partnerships covering air express (DHL, FedEx, UPS) and sea freight for volume orders. Standard lead time for in-stock units is 3–7 business days to major industrial hubs in Southeast Asia, Europe, and North America. Expedited next-flight-out options are available for urgent production line requirements. Export documentation — commercial invoice, packing list, certificate of origin, and calibration certificate where applicable — is prepared to comply with customs requirements in the destination country. DDP (Delivered Duty Paid) terms are available for select markets upon request.
