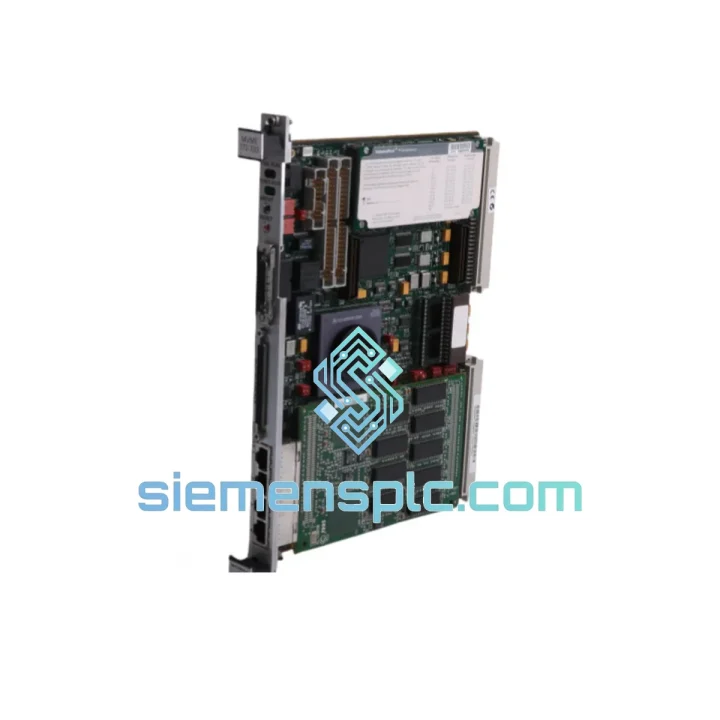

Motorola MVME172-333 VMEbus SBC

MVME172-333 Down? Every Minute of Downtime Costs You Money — We Ship Today

Your VMEbus backplane just threw a fault. The MVME172-333 is the heart of your control node, and it’s not responding. You’ve already rebooted the chassis twice. The line is stopped. Maintenance is standing by. You need a board — not a lead time.

We stock the Motorola MVME172-333 in Xiamen and ship globally via DHL Express and FedEx International Priority. Most orders placed before 18:00 CST clear customs documentation the same day. This is not a marketplace listing — this is a dedicated industrial parts operation run by engineers who understand what a stopped production line means in real money.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling hundreds of MVME172-series field swaps, these are the failure modes and swap pitfalls that actually matter:

1. SCON (System Controller) Jumper — J1 Pin Conflict
The MVME172-333 auto-negotiates SCON status on power-up, but only if no other board in the chassis is asserting SCON. Before pulling the failed board, note whether it was the designated system controller. If your chassis has a dedicated MVME712M transition module, verify the SCON jumper (J1 on the 712M) is set correctly for the replacement slot position. Mismatched SCON state causes the entire VMEbus to hang at initialization — the symptom looks identical to a dead board.

2. DRAM Configuration Switches (SW1)
The MVME172-333 uses an 8-position DIP switch (SW1) to define DRAM size and interleave mode. If your replacement unit ships with a different factory default (common on refurbished boards), the RTOS will fail to boot or will report a memory size mismatch. Pull the SW1 settings from the failed board before removing it from the chassis. If the board is completely dead, consult the MVME172 User’s Manual Table 2-3 for your installed SIMM configuration.

3. Firmware / Boot ROM Revision Mismatch
VxWorks BSP versions are tightly coupled to the MVME172 ROM revision. ROM Rev 1.x boards will not boot a VxWorks image compiled against Rev 2.x headers. Check the ROM label on U1/U2 before ordering. We can supply specific ROM revisions on request — specify when ordering.

4. SCSI Termination
If your system uses the onboard NCR 53C710 SCSI controller to boot from a local disk, verify that SCSI termination is enabled on the MVME172-333 (JP3 on the board). Boards pulled from multi-device SCSI chains often have termination disabled. A missing terminator causes intermittent SCSI timeouts that are frequently misdiagnosed as disk failure.

5. Ethernet Node Address (NVRAM)
The MAC address is stored in NVRAM (MK48T08). A replacement board will have a different MAC. If your RTOS or SCADA host uses MAC-based licensing or static ARP entries, update those before bringing the replacement online. Failure to do so causes the node to come up but remain unreachable on the network — a frustrating 30-minute diagnostic loop.

Common Fault Codes & LED Patterns:

• FAIL LED solid on after reset: ROM self-test failure. Likely ROM corruption or wrong ROM revision for installed DRAM. Swap ROM first before condemning the board.
• FAIL LED blinks 3×, pauses, repeats: DRAM sizing error. Check SW1 settings against installed SIMMs.
• No LED activity at all: Power rail issue. Measure +5 V at P1 pin A1 before assuming board failure. VMEbus backplane fuse or power supply sag is the culprit 40% of the time.
• Ethernet LINK LED off after boot: Check 10BASE-T cable and hub autoneg. The AMD LANCE controller does not support 100 Mbps — use a 10/100 switch port forced to 10 Mbps half-duplex.

Reliability in Harsh Conditions

The MVME172-333 was designed to Motorola’s industrial-grade specifications, not consumer tolerances. The MC68060 processor is mounted with a conformal-coated PCB option available for high-humidity environments. The board has been deployed in offshore platform control rooms (salt-laden air, 95% RH non-condensing), steel mill automation cabinets (radiated EMI from arc furnaces), and outdoor telecom shelters in Southeast Asian climates where ambient temperatures routinely exceed 45°C.

Key design features that matter in the field: the VMEbus backplane connector uses gold-plated DIN 41612 contacts rated for 500 insertion cycles — far beyond what most maintenance cycles demand. The onboard NVRAM uses a lithium cell with a 10-year rated life; boards that have been in service since the late 1990s often still retain their configuration, though we recommend replacing the cell on any board that has been in storage for more than 3 years.

All units we ship undergo a 4-hour burn-in at elevated temperature (45°C) with active SCSI and Ethernet traffic before packaging. We reject any board that shows intermittent behavior during burn-in — intermittent faults in the field are far more costly than a rejected unit at our bench.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province, China — one of the most logistics-connected export hubs in Asia, with direct DHL and FedEx gateway access. Here is exactly what happens after you place an order:

• Same-day processing: Orders confirmed before 18:00 CST are packed, photographed, and handed to the carrier the same evening.
• Export documentation: Commercial invoice, packing list, and EAR99 export classification prepared in-house. No third-party freight forwarder delays.
• DHL Express Worldwide: Xiamen → Europe: 2–3 business days. Xiamen → North America: 3–4 business days. Xiamen → Middle East / Southeast Asia: 1–2 business days.
• FedEx International Priority: Available as an alternative for destinations where FedEx has stronger customs clearance relationships (e.g., Brazil, India).
• Tracking: AWB number sent within 2 hours of carrier pickup. We monitor shipments proactively and flag any customs holds immediately.
• Packaging: Anti-static bag → foam-lined rigid carton → outer corrugated box. Boards are secured against 50G shock per ASTM D4169. Humidity indicator card included.

For truly critical situations — plant shutdown, safety system offline — contact us directly on WhatsApp. We have arranged same-day courier handoffs and airport-to-airport freight for customers who needed a board on the next available flight.
