Moxa EDS-208A: Layer 2 Store-and-Forward Architecture for Deterministic Industrial Ethernet Topologies

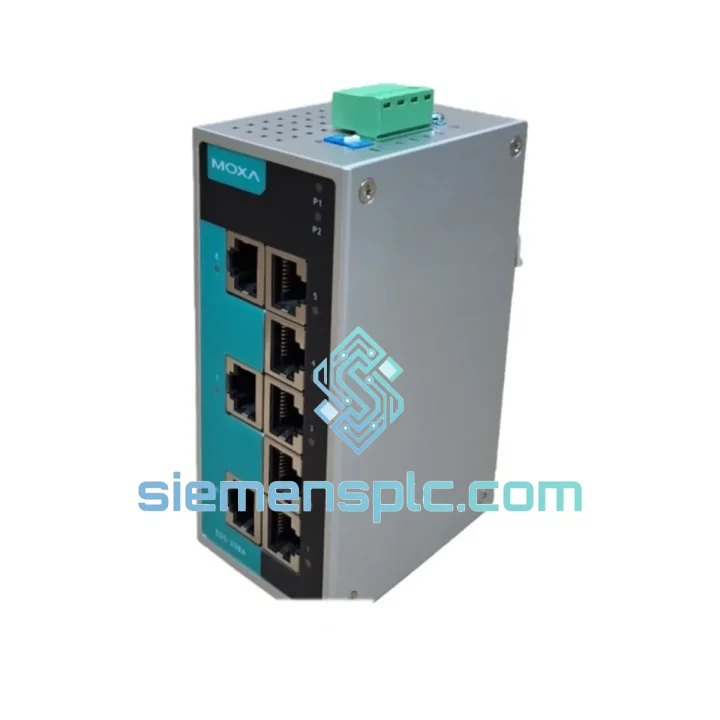

The Moxa EDS-208A is an 8-port, unmanaged, 10/100BaseT(X) industrial Ethernet switch designed for continuous deployment in electrically noisy, thermally variable control environments. Within a PLC-based automation architecture, this switch occupies the field-level aggregation tier — the point where discrete sensors, drives, HMIs, and remote I/O nodes converge before traffic is forwarded upstream to the SCADA or DCS backbone. Its role is not passive. The store-and-forward switching engine performs per-frame CRC validation before forwarding, which means corrupted frames generated by ground loops or cable faults are discarded at the ingress port rather than propagated across the segment. This single hardware behavior has measurable consequences for network determinism in time-sensitive control loops.

Deployed across factory automation, substation protection, rail trackside networks, and offshore process control, the EDS-208A has accumulated a field record that makes it a reference-class component for engineers specifying unmanaged switches in IEC 61158 and IEEE 802.3 compliant topologies.

Real-time Stock & RFQ: 📧 [email protected] | 📱 WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Store-and-Forward vs. Cut-Through: Why It Matters in Industrial Networks

The EDS-208A uses a store-and-forward switching engine, which buffers each incoming frame in its entirety before forwarding. The switch performs a CRC-32 check on every frame. Frames with CRC errors — a common occurrence in environments with variable-frequency drives (VFDs), servo amplifiers, or high-current contactors generating conducted and radiated EMI — are silently dropped at the ingress port. This prevents error propagation across the segment, which is critical in Profinet and EtherNet/IP topologies where a single malformed frame can trigger a watchdog timeout on a remote I/O node.

EMC Hardening Architecture

The EDS-208A’s steel IP30 enclosure provides a Faraday shielding effect against radiated RF interference. Internally, the power supply section incorporates transient voltage suppression (TVS) diodes on both DC input rails, protecting against surge events up to the levels defined in IEC 61000-4-5 (surge immunity). The RJ45 ports include integrated magnetic isolation transformers — a standard 1500 Vrms isolation barrier between the PHY silicon and the cable plant. This galvanic isolation prevents ground potential differences between connected devices from injecting common-mode noise into the switching fabric.

Dual-Input Power Redundancy Logic

The V1 and V2 power inputs operate in parallel with diode-OR logic. Both inputs can be energized simultaneously from independent 24 VDC sources (e.g., primary UPS rail and secondary panel supply). If V1 drops below the undervoltage threshold, the switch continues operating from V2 without any frame loss or port reset. The fault relay output (normally closed) opens upon power failure detection, providing a dry-contact alarm signal to the PLC or DCS supervisory input — enabling automated fault logging without polling the switch via SNMP (which this unmanaged device does not support).

Auto MDI/MDI-X and Auto-Negotiation

All 8 ports implement IEEE 802.3u auto-negotiation and automatic MDI/MDI-X crossover detection. In field installations where cable types are mixed or technicians use straight-through cables for device-to-device connections, the switch corrects the polarity and pair assignment in hardware. This eliminates a class of installation errors that are disproportionately common during commissioning under time pressure.

System Integration Benefits

• Protocol Transparency: As a Layer 2 switch, the EDS-208A forwards Ethernet frames without inspecting or modifying the payload. Profinet RT, EtherNet/IP, Modbus TCP, HART-IP, and OPC-UA over TCP all traverse the switch without protocol-specific configuration. No firmware updates are required when the upper-layer protocol changes.
• Deterministic Latency Profile: Store-and-forward latency for a 64-byte frame at 100 Mbps is approximately 5.12 µs plus switching overhead — well within the cycle time budget of standard Profinet RT Class 1 (≥1 ms) and EtherNet/IP implicit messaging applications.
• Zero-Touch Commissioning: No IP address assignment, no CLI access, no configuration file. The switch is operational within seconds of power application. In multi-machine deployments where dozens of switches must be installed during a compressed commissioning window, this eliminates a significant source of schedule risk.
• Compact Cabinet Footprint: At 36 mm wide on a 35 mm DIN-Rail, the EDS-208A occupies less horizontal space than a standard 40 mm circuit breaker. In a 600 mm wide control panel, 16 units can be mounted side-by-side — a density that no rack-mount switch can match at this power consumption level (2.75 W max).
• Fault Relay for Supervisory Integration: The relay output provides a hardware-level power fault signal that can be wired directly to a PLC digital input or DCS alarm card. This gives the control system visibility into switch health without requiring network management infrastructure.
• Wide DC Input Range: The 12–45 VDC input range accommodates both 24 VDC (standard IEC 61131-2 PLC supply) and 48 VDC (telecom-standard) panel supplies without a DC-DC converter. This simplifies BOM and reduces component count in mixed-voltage panels.
• DNV GL Marine Certification: For offshore and shipboard applications, DNV GL type approval confirms that the EDS-208A meets the vibration, humidity, temperature, and EMC requirements of marine classification societies. This eliminates the need for project-specific derogation requests during vessel inspection.
• Long-Term Product Availability: The EDS-208A has been in continuous production since its introduction and is supported by Moxa’s industrial product lifecycle policy, which guarantees a minimum 5-year production run and 10-year spare parts availability. For system integrators designing machines with 15–20 year service lives, this reduces the risk of mid-lifecycle component obsolescence.
