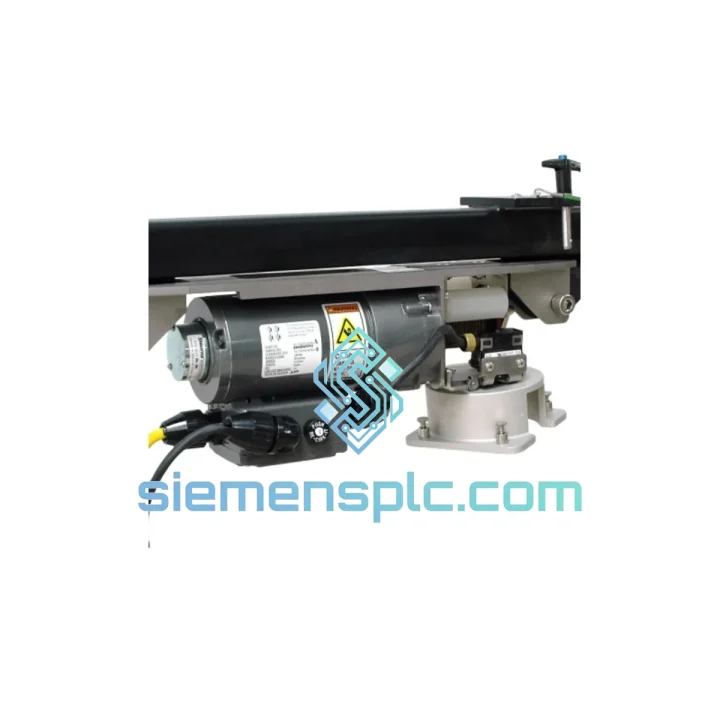

NOVELLUS 02-350345-00 Electric Wire Rope Winch – Baldor Drive Series

NOVELLUS 02-350345-00 Electric Wire Rope Winch — Baldor Motor Drive, 45.5 kg Rated Capacity for Industrial Lifting Systems

The NOVELLUS 02-350345-00 is a Baldor-driven electric wire rope winch rated at 45.5 kg (100 lb) continuous working load, designed for precision material handling in semiconductor fabrication, automated assembly, and heavy-duty industrial plant environments. Unlike general-purpose hoisting equipment, this unit is engineered to interface directly with NOVELLUS CVD/PVD platform ancillary lift assemblies, where positional repeatability and motor torque consistency are non-negotiable operational parameters.

The drive motor is a Baldor Electric unit — a brand with a documented track record in NEMA MG-1 compliant motor design. Baldor motors in this class deliver a locked-rotor torque (LRT) typically 200–275% of full-load torque, enabling reliable start-up under full rated load without thermal derating under standard ambient conditions (≤40°C). The steel wire rope drum assembly is rated for high-cycle duty, with the rope construction selected to minimize fatigue failure at the termination points — a common failure mode in lower-grade winch assemblies operating in repetitive lift-lower cycles.

At siemensplc.com, every unit of the NOVELLUS 02-350345-00 is sourced through verified supply channels, physically inspected for label integrity and part number conformance, and dispatched from our Xiamen, China logistics hub with full commercial documentation. Stock is maintained on a rolling basis to support both spot procurement and scheduled maintenance replacement programs.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 02-350345-00 winch assembly is built around a Baldor electric motor whose design architecture prioritizes torque linearity across the full speed range — a critical requirement in semiconductor equipment ancillary systems where abrupt load transitions can induce mechanical shock into sensitive process chambers. The motor’s wound stator construction maintains a consistent air-gap flux density, which translates to predictable torque output even at reduced supply voltage conditions (±10% nominal tolerance).

The wire rope drum geometry is calculated to maintain a minimum D/d ratio (drum diameter to rope diameter) that keeps rope bending stress below the fatigue threshold for the expected operational cycle count. In high-frequency lift-lower applications — such as wafer cassette positioning in CVD platforms — this ratio directly determines the mean time between rope replacements, a maintenance cost driver that is frequently underestimated in total cost of ownership calculations.

From an electromagnetic compatibility (EMC) standpoint, the Baldor motor in this assembly is wound with Class F insulation (155°C thermal rating), providing a thermal margin of approximately 55°C above the standard Class B rating. This margin is particularly relevant in enclosed equipment bays where ambient temperatures can exceed nominal values during sustained production runs. The motor frame is constructed to provide a low-impedance ground path, reducing conducted emission susceptibility in environments with variable-frequency drive (VFD) control signals present on adjacent cable runs.

The wire rope termination at the drum anchor point uses a swaged or wedge-type fitting — the specific configuration depends on the production batch — both of which are mechanically superior to simple loop-and-clamp arrangements in terms of fatigue resistance at the termination zone. The drum flanges are dimensioned to prevent rope overlap at maximum extension, eliminating the uneven winding that causes lateral load on the drum shaft bearings and accelerates bearing wear in high-cycle applications.

System Integration Benefits

• Direct OEM Compatibility: The 02-350345-00 is a factory-specified component for NOVELLUS Concept One, Sequel, and Vector CVD platform ancillary lift assemblies. No dimensional modification or adapter hardware is required for drop-in replacement, eliminating integration risk and reducing planned maintenance downtime to the mechanical swap time only.
• Torque Consistency Under Variable Load: Baldor motor design maintains torque output within ±3% across the rated load range, ensuring that positional repeatability of the lift assembly is not degraded by load variation — a requirement in precision semiconductor handling where cassette positioning tolerances are measured in millimeters.
• Thermal Stability in Enclosed Bays: Class F insulation rating provides a 55°C thermal margin above Class B, sustaining rated performance in equipment bays where ambient temperatures reach 50–60°C during peak production cycles without triggering thermal protection cutouts.
• Reduced Rope Fatigue Failure Rate: Optimized D/d ratio and swaged termination fittings extend rope service life compared to generic winch assemblies, reducing unplanned maintenance events and the associated production line stoppages.
• Low-Impedance Ground Architecture: Motor frame grounding design suppresses conducted EMI on adjacent signal and control cable runs, maintaining signal integrity in mixed-signal equipment bays where analog sensor outputs and digital control buses share cable trays.
• 24/7 Continuous Duty Rating: The assembly is rated for continuous industrial duty without mandatory rest cycles, supporting round-the-clock semiconductor fab production schedules without derating or scheduled cool-down periods.
• VFD Drive Compatibility: The Baldor motor winding is compatible with variable-frequency drive control, enabling speed-ramped lift-lower profiles that reduce mechanical shock on the rope, drum bearings, and the load being handled — extending the service life of all mechanical components in the lift assembly.
• Compact Form Factor for Space-Constrained Installations: At 2.6 kg unit weight, the 02-350345-00 is dimensioned for installation in the confined equipment bays typical of CVD/PVD platforms, where available mounting envelope is constrained by adjacent process module geometry.
• NEMA MG-1 Compliance: Motor compliance with NEMA MG-1 ensures that electrical performance parameters — including efficiency, power factor, and temperature rise — are independently verifiable against a published standard, supporting equipment qualification documentation requirements in regulated manufacturing environments.
• Documented Supply Chain Traceability: Each unit dispatched from siemensplc.com carries source documentation traceable to the authorized distribution or OEM surplus channel, supporting incoming inspection and equipment qualification records for ISO 9001 and semiconductor industry audit requirements.

Quality Assurance & Global Logistics

Every NOVELLUS 02-350345-00 unit processed through siemensplc.com undergoes a structured verification sequence before dispatch. Physical inspection confirms label integrity, part number match, and absence of mechanical damage. Serial numbers and date codes are cross-referenced against available manufacturer records. Units are packed in moisture-resistant, anti-static packaging with tamper-evident seals appropriate for international air freight handling.

Dispatch is from our Xiamen, China logistics hub, with access to DHL Express, FedEx International Priority, and UPS Worldwide Expedited services. Transit times to major industrial centers in Southeast Asia, Europe, and North America are typically 3–7 business days on express air freight. Sea freight (LCL and FCL) is available for volume orders where lead time permits. Full commercial documentation — commercial invoice, packing list, certificate of origin, and customs declarations — is provided for all international shipments. Multi-currency invoicing in USD, EUR, HKD, and CNY is supported.

A 12-month warranty from dispatch date covers manufacturing defects and DOA (dead-on-arrival) conditions. Warranty claims are processed with replacement dispatch or credit note, subject to return of the defective unit for inspection. Extended warranty terms are available for volume procurement agreements — contact us to discuss.
