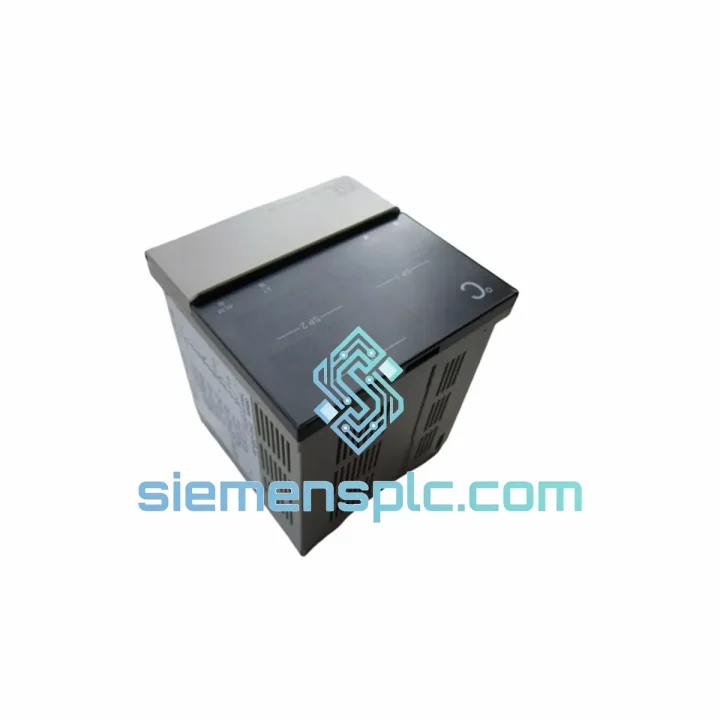

OMRON E5AX-DAA Temperature Controller – E5AX Series

OMRON E5AX-DAA: Dual-Output PID Temperature Controller for Closed-Loop Process Regulation

The OMRON E5AX-DAA is a panel-mount PID temperature controller occupying the dual-output, analog-input position within the E5AX Series. Its primary function in a control loop is to continuously compare a measured process variable (PV) — sourced from a thermocouple or RTD — against a user-defined setpoint (SV), then compute and issue a corrective output signal to a final control element such as a solid-state relay, contactor, or thyristor power controller. The controller executes this closed-loop calculation at a 500 ms sampling period, applying proportional, integral, and derivative actions simultaneously to suppress both steady-state offset and transient overshoot. In thermal process applications — injection molding barrels, industrial ovens, pasteurization tunnels, semiconductor burn-in chambers — this deterministic regulation cycle is the difference between process conformance and scrap generation.

The E5AX-DAA’s dual-output architecture (primary control relay + auxiliary output) enables split-range heating/cooling configurations or simultaneous alarm relay activation without external relay expansion modules. This reduces panel wiring complexity and eliminates the propagation delay introduced by intermediate relay stages in the signal chain.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The E5AX-DAA’s analog front-end employs a multiplexed input stage with cold-junction compensation (CJC) circuitry integrated directly on the PCB. For thermocouple inputs, the CJC circuit measures the terminal block temperature using a precision thermistor and applies a real-time offset correction to the raw millivolt signal before A/D conversion. This eliminates the systematic error introduced by ambient temperature drift at the terminal — a common failure mode in controllers that rely on fixed CJC tables rather than dynamic measurement.

The A/D converter operates at sufficient resolution to achieve the stated ±0.3% FS accuracy across the full input range. The PID computation engine runs on a fixed 500 ms interrupt cycle, ensuring that the output duty cycle calculation is not affected by display refresh or communication tasks — these are handled by lower-priority interrupt service routines. This architectural separation between the control loop and peripheral tasks is a fundamental requirement for deterministic thermal regulation.

EMC immunity is addressed through multi-layer PCB design with dedicated ground planes separating the analog input section from the digital processing and relay output sections. The relay output contacts are physically isolated from the low-voltage signal circuitry by a creepage distance compliant with IEC 60664-1 for 300 V working voltage. The front panel’s IP66 rating is achieved via a gasket-sealed bezel, protecting the display and keypad from water jets and particulate ingress — relevant in food processing and chemical plant environments where periodic washdown is standard practice.

The auto-tuning function uses a limit-cycle (relay feedback) method: the controller temporarily switches to ON-OFF control, measures the natural oscillation period and amplitude of the process response, then calculates P, I, and D parameters using Ziegler-Nichols-derived formulas. This approach requires no prior knowledge of process dynamics and converges to stable PID parameters within one to three oscillation cycles for most thermal processes.

System Integration Benefits

• Universal Sensor Compatibility: A single hardware SKU supports all standard thermocouple types (K, J, T, E, L, U, N, R, S, B, W) and RTD configurations (Pt100, JPt100), eliminating the need to stock multiple controller variants for different sensor installations across a facility.
• Dual-Output Architecture: The primary relay and auxiliary relay outputs operate independently, enabling heating/cooling split-range control or alarm relay activation from a single controller — reducing panel component count and associated wiring labor.
• Deterministic 500 ms Control Cycle: The fixed sampling period provides a predictable closed-loop response time, allowing process engineers to calculate maximum overshoot and settling time analytically during system design rather than empirically during commissioning.
• AT Function for Rapid Commissioning: The limit-cycle auto-tuning routine eliminates manual PID parameter calculation, reducing commissioning time on new installations and after process changes such as batch size variation or raw material substitution.
• IP66 Front Panel: Rated for direct water jet exposure per IEC 60529, the sealed front panel allows installation in washdown zones without additional enclosure protection, reducing total installed cost in food, beverage, and pharmaceutical applications.
• DIN 48×96 mm Standard Format: The panel cutout dimensions conform to IEC 61554, ensuring compatibility with standard DIN rail enclosures and panel cutout templates used globally — no custom machining required.
• CE and UL/cUL Certification: Dual certification covers both European (CE, EN 61010-1) and North American (UL 61010-1) safety requirements, enabling deployment in multi-region projects without sourcing region-specific controller variants.
• Simultaneous PV/SV Display: The dual 4-digit LED display presents both the measured process value and the active setpoint simultaneously, allowing operators to assess process deviation at a glance without navigating menu screens — reducing operator error during manual monitoring.
• RS-485 Communication Capability: Via OMRON’s CompoWay/F protocol, the E5AX-DAA can be integrated into SCADA or PLC supervisory systems for remote setpoint adjustment, PV logging, and alarm status monitoring — supporting centralized process data acquisition without additional hardware.

Quality Assurance & Global Logistics

Every OMRON E5AX-DAA unit supplied by siemensplc.com is sourced through verified supply channels and subjected to incoming inspection before dispatch. Inspection procedures include label and hologram verification against OMRON’s current authentication standards, date code cross-referencing, and power-on functional verification of display and output relay operation. Units are shipped in original OMRON packaging with accompanying documentation where available.

Logistics operations are based in Xiamen, China — a major international freight hub with direct access to DHL Express, FedEx International Priority, UPS Worldwide Express, and consolidated sea freight services. Standard express shipments to destinations in Southeast Asia, the Middle East, Europe, and North America typically achieve door-to-door transit times of 3–7 business days. All shipments include full tracking and commercial invoice documentation for customs clearance. For time-critical requirements, same-day dispatch is available for in-stock units ordered before 15:00 CST. A 12-month warranty covers verified manufacturing defects from the date of shipment.
