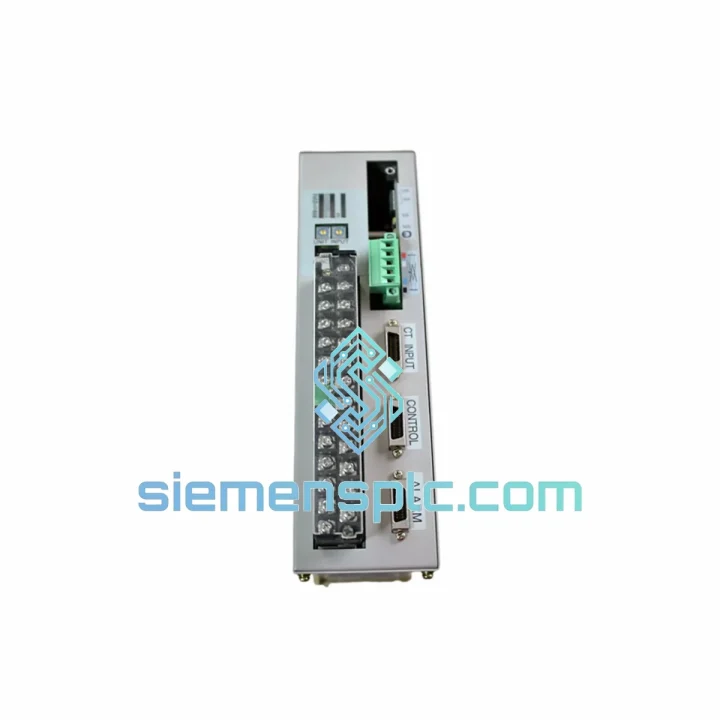

OMRON E5ZE-8AQHD1TCB Temperature Controller

OMRON E5ZE-8AQHD1TCB — Stop the Bleed: 8-Zone Temperature Control Back Online in 48 Hours

Your injection molding line just tripped. Zone 4 is reading open-circuit. The E5ZE-8AQHD1TCB is dead and your shift supervisor is already on the phone. Every hour this line sits cold costs you real money — scrap, labor, missed shipments, customer penalties. You don’t need a sales pitch. You need the part, fast, and you need it to work first time.

We stock the OMRON E5ZE-8AQHD1TCB in Xiamen. It ships today via DHL Express. That’s the short version. Keep reading if you need the technical detail to justify the PO.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Most common failure modes on the E5ZE-8AQHD1TCB in the field:

1. Open-circuit input alarm (AL1 flashing on a specific channel)
Ninety percent of the time this is a broken thermocouple lead or corroded terminal, not the controller itself. Before condemning the E5ZE-8AQHD1TCB, short the input terminals on the suspect channel with a jumper wire. If the alarm clears and the display reads ambient temperature, your controller is fine — replace the sensor. If the alarm persists with the jumper in place, the input circuit on that channel is gone. Time to swap the unit.

2. All channels showing E1 or E2 error simultaneously
This points to a power supply issue or a corrupted parameter block. Cycle power and hold the MODE key during boot to force a parameter reset. If the errors return within minutes, the internal EEPROM is failing — the unit needs replacement, not reconfiguration.

3. RS-485 communication loss (PLC losing contact with the E5ZE)
Check termination resistors first — the E5ZE-8AQHD1TCB requires a 120Ω terminator at the far end of the RS-485 bus. Confirm the unit address (default: 00) hasn’t been corrupted. Use OMRON’s CX-Thermo software to re-establish communication before assuming hardware failure. If the RS-485 transceiver IC has failed (common after lightning surge events), the unit must be replaced.

Replacement procedure — what to capture before you pull the old unit:

• Use CX-Thermo to export the full parameter file (.ctp) from the existing unit while it still powers on. This saves every channel’s setpoint, PID constants, alarm limits, and communication settings. If the unit is completely dead, you’ll need to re-enter parameters manually — keep the original commissioning sheet.
• Note the unit address set in the communication parameters (Parameter Group 5, address setting). The replacement unit ships with address 00 by default. Mismatch here will cause immediate communication failure after swap.
• Photograph the terminal wiring before disconnecting. The E5ZE-8AQHD1TCB has 8 input terminal blocks plus relay outputs — a wiring error on a single channel will cause that zone to run uncontrolled.
• After installing the replacement, perform auto-tuning (AT) on each active channel before returning the line to production. PID constants from the old unit are a starting point, not a guarantee — thermal mass, heater aging, and sensor placement all affect the optimal values.
• Confirm firmware version if your system uses CX-Thermo for parameter upload. Older parameter files may not load cleanly onto units with newer firmware. Manual re-entry is the safe fallback.

DIP switch / address configuration note:
The E5ZE-8AQHD1TCB does not use physical DIP switches for channel addressing — all addressing is done via front-panel parameter entry. However, the RS-485 communication speed (baud rate) must match the host PLC or SCADA system exactly. Default is 9600 bps. If your system runs at 19200 or 38400, set this in Parameter Group 5 before going live.

Reliability in Harsh Conditions

The E5ZE-8AQHD1TCB is not a panel-room instrument. It was designed to sit inside machine cabinets on injection molding presses, extruder lines, and food processing equipment — environments where ambient temperatures regularly hit 50°C, where coolant mist finds its way into every gap, and where the floor vibrates from 200-ton presses cycling every 30 seconds.

OMRON rates the E5ZE series for operating temperatures of 0–55°C and storage down to -25°C. The relay output contacts are rated for 250 VAC / 3A resistive load with a mechanical life exceeding 10 million operations — relevant when you’re switching SSR pilot signals at high cycle rates. The housing meets IP20 ingress protection as standard; for higher IP requirements, the controller should be mounted in a sealed enclosure with appropriate gland fittings.

Vibration resistance is specified to IEC 60068-2-6: 10–55 Hz, 0.75 mm amplitude. In practice, units mounted on DIN rail with proper end stops and cable management routinely outlast the machines they’re installed in. The failure modes we see in the field are almost always electrical — surge damage from unprotected RS-485 lines, or input circuit degradation from repeated thermocouple short-circuit events — not mechanical fatigue.

For high-humidity environments (coastal plants, food processing with washdown), ensure the cabinet maintains positive pressure with filtered air and that the E5ZE-8AQHD1TCB terminals are protected from condensation. Conformal coating of the PCB is not standard on this model; if your environment demands it, specify this at the time of order and we can arrange pre-treatment before dispatch.

Global Express Logistics

Our warehouse is in Xiamen, Fujian — one of China’s primary export hubs with direct access to Xiamen Gaoqi International Airport and the Port of Xiamen. This matters when you’re counting hours, not days.

Standard dispatch timeline:

• Orders confirmed before 14:00 CST ship same day via DHL Express or FedEx International Priority.
• Export documentation (commercial invoice, packing list, HS code declaration) is prepared in parallel with packing — no delays at customs clearance.
• HS code for the E5ZE-8AQHD1TCB: 9032.89 (automatic regulating or controlling instruments and apparatus). We declare accurately — no undervaluation, no misdescription.

Typical transit times from Xiamen:

• Southeast Asia (Thailand, Vietnam, Malaysia, Indonesia): 2–3 business days
• South Asia (India, Pakistan, Bangladesh): 3–4 business days
• Middle East (UAE, Saudi Arabia, Turkey): 3–5 business days
• Europe (Germany, Netherlands, Poland, UK): 4–6 business days
• North America (USA, Canada, Mexico): 4–6 business days
• Australia / New Zealand: 3–5 business days

Every shipment includes a DHL or FedEx tracking number issued within 2 hours of dispatch. For critical downtime situations, we can arrange Saturday delivery in most major markets — confirm at time of order. We also support EXW, FOB Xiamen, and CIF terms for customers with preferred freight forwarders.

Packaging: the E5ZE-8AQHD1TCB ships in its original OMRON retail box where available, double-boxed with polyethylene foam inserts rated for drops up to 1.2 m. Anti-static bag is standard. For air freight, total carton weight is approximately 2.5 kg including packaging.
