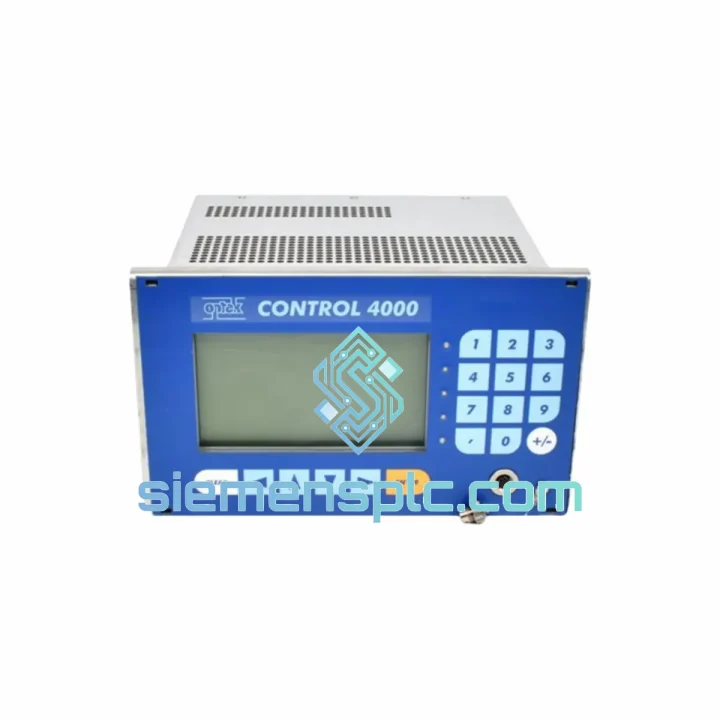

OPTEK CONTROL-4000-C4221-EX-EN-D-C4000-EX Photometric Converter – C4000-EX Series

OPTEK CONTROL-4000-C4221-EX-EN-D-C4000-EX: Fiber-Optic Photometric Signal Processor for Classified Hazardous Zones

The OPTEK C4221-EX, ordered under full part number CONTROL-4000-C4221-EX-EN-D-C4000-EX, is a dedicated photometric converter designed to receive, condition, and transmit optical measurement signals from C4000-EX series fiber-optic probes deployed in ATEX/IECEx Zone 1 and Zone 2 classified environments. The EN-D suffix designates the Enhanced enclosure variant with an integrated local digital display, enabling on-site parameter readout and commissioning without external instrumentation. This unit occupies the signal-processing tier of the C4000-EX measurement loop — positioned between the immersion probe and the plant DCS or PLC analog input card — and is responsible for converting raw photometric intensity data into a calibrated 4–20 mA process variable output.

Unlike general-purpose transmitters adapted for hazardous areas through purge-and-pressurize enclosures, the C4221-EX is natively designed to the Ex protection concept, with its internal circuit architecture and enclosure geometry engineered from the ground up to satisfy the ignition risk criteria of IEC 60079-0 and IEC 60079-1. This distinction has direct implications for installation cost, maintenance burden, and long-term compliance audit outcomes in regulated process industries.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The C4221-EX photometric converter implements a dual-channel optical detection architecture. The primary channel receives the attenuated measurement beam transmitted through the process medium via the C4000-EX fiber-optic probe, while the reference channel simultaneously monitors the source lamp intensity. The ratio of measurement-to-reference signals is computed in real time by an onboard 32-bit fixed-point processor, canceling out lamp aging drift, fiber transmission losses due to fouling or bending, and ambient temperature-induced detector sensitivity shifts. This ratiometric computation is the fundamental mechanism that allows the C4221-EX to maintain photometric accuracy over multi-year service intervals without recalibration of the source intensity.

The analog output stage employs a precision 12-bit DAC with a dedicated voltage reference, galvanically isolated from the signal-processing ground plane via a DC-DC converter and optocoupler barrier rated at 500 V isolation. This isolation architecture prevents ground loop currents — a persistent source of measurement error in long cable runs between field instruments and control room marshalling panels — from corrupting the 4–20 mA signal. The output loop is also protected against reverse polarity connection and sustained short-circuit conditions without requiring fuse replacement.

EMC performance is addressed at the PCB layout level. The analog front-end, digital processing core, and output stage occupy separate ground planes connected at a single star point, minimizing conducted interference coupling between the switching power supply and the low-level optical detector circuits. The flameproof enclosure (Ex d) provides an additional layer of shielding against radiated RF fields from portable transceivers and variable-frequency drives — a common interference source in petrochemical plant environments. The enclosure’s flame path geometry is machined to IEC 60079-1 tolerances, with gap dimensions and path lengths verified at manufacture to contain any internal ignition event without propagating flame to the surrounding atmosphere.

The EN-D display variant integrates a 4-digit LCD driven by a dedicated microcontroller segment, isolated from the main measurement processor bus. This architecture ensures that a display fault — such as a segment driver latch-up under ESD — cannot corrupt the measurement output or trigger a spurious 4–20 mA excursion. The display shows the live process value in engineering units (AU, %T, or concentration in user-defined units), plus a scrolling diagnostic code sequence indicating lamp status, fiber integrity, and output saturation flags.

System Integration Benefits

• Direct DCS/PLC Analog Input Compatibility: The 4–20 mA output maps directly to any standard analog input card (1–5 V, 0–10 V, or current input) without signal conditioning hardware, reducing BOM complexity and panel wiring labor.
• HART Protocol Readiness: The output loop is HART-compatible (where firmware option is specified), enabling superimposed digital communication for remote ranging, diagnostic polling, and asset management integration via AMS or PACTware without breaking the 4–20 mA loop.
• Deterministic Response Time: The measurement update cycle is fixed at 250 ms, providing a deterministic process variable refresh rate that allows PLC ladder logic or DCS function block timing to be designed without uncertainty margins for instrument latency.
• Probe-Agnostic Calibration Storage: Calibration coefficients for up to four probe configurations can be stored in non-volatile EEPROM and recalled via front-panel selection, eliminating the need to re-enter calibration data when probes are swapped for maintenance.
• Diagnostic Transparency: The converter continuously monitors source lamp intensity, fiber transmission ratio, detector dark current, and supply voltage. Any parameter exceeding its tolerance band sets a discrete fault output (open-collector, 24 V compatible) and drives the 4–20 mA output to a user-configurable fail-safe value (3.6 mA or 21 mA), enabling the DCS to distinguish instrument fault from genuine process excursion.
• Reduced Intrinsic Safety Barrier Requirement: Because the C4221-EX is rated Ex d (flameproof) rather than Ex ia (intrinsically safe), the fiber-optic signal path to the probe does not require Zener barriers or galvanic isolators in the field junction box, reducing installation component count and associated SIL verification documentation.
• IP66/IP67 Ingress Protection: The 316L stainless steel enclosure withstands high-pressure washdown, condensation, and temporary immersion, making the converter suitable for outdoor installation in coastal or tropical climates without additional weatherproof housing.
• Long-Term Spare Parts Availability: The C4000-EX platform has been in continuous production since its introduction, with OPTEK maintaining backward compatibility across converter and probe generations. Replacement of the C4221-EX converter does not require re-calibration of the probe or re-configuration of the DCS analog input scaling.

Quality Assurance & Global Logistics

Every OPTEK CONTROL-4000-C4221-EX-EN-D-C4000-EX unit supplied through siemensplc.com is sourced from verified supply channels and subjected to a structured incoming inspection protocol before dispatch. Inspection steps include dimensional verification of the enclosure flame path gap against IEC 60079-1 manufacturing tolerances, label and serial number cross-reference against OPTEK’s published certification documentation, power-on functional verification of the display and analog output loop, and packaging integrity check to confirm the fiber-optic connector endface is protected against contamination during transit.

Units are dispatched from our Xiamen, China warehouse — a logistics hub with direct access to Xiamen Gaoqi International Airport and Xiamen Port, providing competitive transit times to Southeast Asia (2–4 days), the Middle East (4–6 days), Europe (5–8 days), and North America (6–10 days) via DHL Express, FedEx International Priority, and UPS Worldwide Expedited. All shipments include commercial invoice, packing list, and certificate of origin. ATEX/IECEx certification documentation and calibration records are included in the shipment package where available from the original manufacturer.

A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed with a target response time of 48 hours from receipt of the defective unit. Advance replacement units can be arranged for critical process applications to minimize plant downtime.
