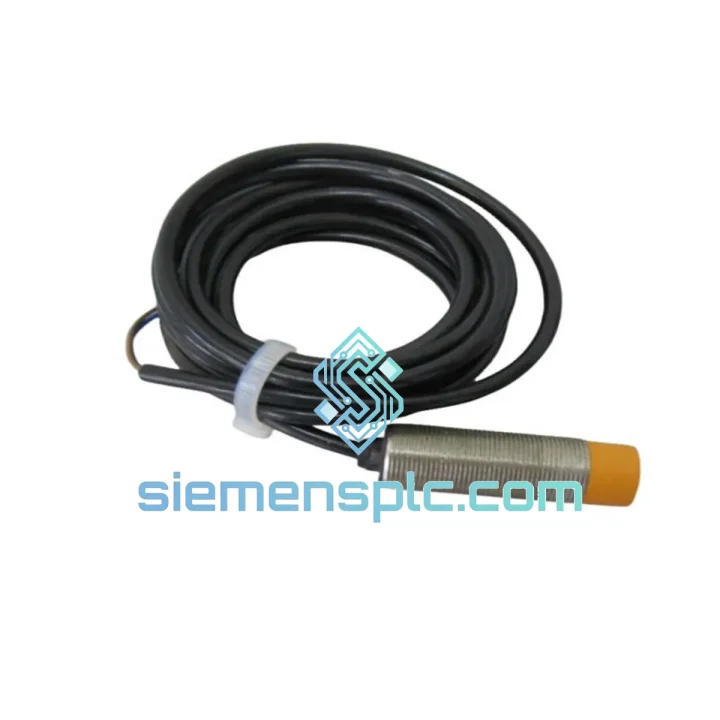

Pepperl+Fuchs 3RG4023-0JB00 Inductive Proximity Sensor – NAMUR Series

Pepperl+Fuchs 3RG4023-0JB00 — NAMUR Inductive Proximity Sensor for Hazardous-Area Process Control

The Pepperl+Fuchs 3RG4023-0JB00 is a two-wire NAMUR-output inductive proximity sensor housed in an M8 cylindrical barrel, designed specifically for deployment in explosive atmospheres classified as Zone 0, Zone 1, and Zone 2 under the ATEX Directive 2014/34/EU and IECEx scheme. Unlike conventional PNP/NPN discrete sensors, the 3RG4023-0JB00 operates on the NAMUR interface standard (EN 60947-5-6), delivering a current-modulated signal — nominally above 3 mA in the unactuated state and below 1 mA when the target is within sensing range — directly into a paired intrinsic safety barrier or galvanic isolator. This architecture eliminates the need for active switching components at the field device level, which is the foundational principle of intrinsic safety: limiting stored electrical energy to levels incapable of igniting a flammable atmosphere even under fault conditions.

The sensor’s eddy-current inductive sensing principle operates by generating a high-frequency oscillating electromagnetic field at the ferrite-core coil embedded in the M8 housing face. When a ferromagnetic or non-ferromagnetic conductive target enters the sensing field, eddy currents are induced in the target surface, loading the oscillator circuit and causing a measurable reduction in oscillation amplitude. The internal evaluation circuit detects this amplitude threshold crossing and modulates the two-wire supply current accordingly. Because the entire signal chain is passive from the perspective of the hazardous area — the barrier in the safe area supplies the 8 V DC operating voltage and interprets the current modulation — the 3RG4023-0JB00 carries no internal power source and generates no spark-capable energy independently.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Oscillator Circuit and Damping Detection: The 3RG4023-0JB00 employs a Colpitts-type LC oscillator operating in the 100–500 kHz range. The ferrite pot-core concentrates the electromagnetic field into a tightly defined sensing zone, which is critical for achieving the rated 1.5 mm nominal sensing range in an M8 form factor. The oscillator amplitude is continuously monitored by a Schmitt-trigger comparator with hysteresis, preventing output chatter in the transition zone — a common failure mode in lower-grade sensors operating near the switching threshold.

Intrinsic Safety Current Modulation: Unlike transistor-output sensors that switch a supply rail, the NAMUR interface modulates the sensor’s own supply current. The internal circuit presents a high impedance (> 1 kΩ) in the actuated state and a low impedance in the unactuated state, producing the characteristic >3 mA / <1 mA current signature. This passive modulation architecture means the sensor contains no capacitors or inductors with stored energy exceeding the Ex ia IIC limits (Ci < 5 nF, Li < 10 µH for Group IIC), enabling Zone 0 deployment — the most stringent hazardous area classification.

EMC Design: The M8 metal housing acts as a Faraday shield around the oscillator circuit. The two-wire cable interface, when used with shielded instrumentation cable (e.g., Belden 9501 or equivalent, shield grounded at the barrier end only), provides common-mode rejection of induced noise from variable-frequency drives, contactors, and high-current bus bars — all typical sources of electromagnetic interference in process plant environments. The sensor meets EN 61000-4-4 (electrical fast transient / burst) at 2 kV, which corresponds to the interference levels generated by inductive load switching on the same cable tray.

Flush-Mount Mechanical Design: The M8 threaded barrel is rated for flush installation in metal mounting brackets without requiring an additional non-metallic collar. The ferrite core geometry is optimized to minimize lateral field spread, which reduces cross-talk when sensors are mounted in arrays with center-to-center spacing as close as 20 mm — relevant for multi-point valve position feedback racks common in process skids.

Thermal Stability: The oscillator frequency drift over the −25 °C to +70 °C operating range is compensated by the internal evaluation circuit’s temperature-coefficient-matched resistor network, maintaining switching point repeatability within ±10% of Sn across the full temperature span. This is particularly relevant for outdoor installations in northern climates or high-ambient process areas near heat exchangers.

System Integration Benefits

• Direct NAMUR Barrier Compatibility: Interfaces natively with P+F KFD2-SR2-Ex1.W, KFD2-STC4-Ex1, R2-SP1-Ex1, and equivalent Zener barriers from MTL, Stahl, and Turck — no signal conditioning adapter required, reducing BOM complexity and panel space.
• DCS NAMUR Input Card Support: Connects directly to NAMUR-input cards on Siemens SIMATIC PCS 7 / PCS neo, Emerson DeltaV SIS, Honeywell Experion PKS, and ABB 800xA — enabling deterministic 1 ms scan-cycle position feedback without intermediate relay conversion.
• SIL-Capable Signal Path: When paired with a SIL 2-rated galvanic isolator (e.g., P+F KFD2-STC4-Ex1.4O-Y1), the 3RG4023-0JB00 can participate in a SIL 2 safety instrumented function (SIF) for valve position monitoring, subject to PFD calculation per IEC 61511.
• Wire Break and Short-Circuit Detection: The NAMUR standard defines fault states: current < 0.1 mA indicates wire break; current > 6.5 mA indicates short circuit. Any NAMUR-compliant barrier or isolator will generate a discrete fault output to the DCS, providing diagnostic transparency without additional field wiring.
• Reduced Wiring Infrastructure: Two-wire connection eliminates the need for separate power and signal conductors, reducing cable cross-section, conduit fill, and junction box terminal count — a measurable cost reduction in large-scale process plant instrumentation projects.
• Compact M8 Retrofit Capability: The M8 × 1 thread is the most common small-bore sensor thread in European process instrumentation. The 3RG4023-0JB00 drops into existing M8 mounting holes without mechanical modification, enabling like-for-like replacement of legacy sensors during plant turnarounds with zero downtime for re-drilling or bracket fabrication.
• Deterministic Switching Repeatability: The Schmitt-trigger hysteresis band (typically 10–15% of Sn) ensures that mechanical vibration — common on pump skids and compressor trains — does not cause false switching events, maintaining signal integrity in high-vibration installations without software debounce filters that would add latency to the control loop.
• Long-Term Calibration Stability: Solid-state inductive sensing with no mechanical wear components. Switching point drift over a 10-year service life is typically < 5% of Sn under normal process conditions, reducing the frequency of scheduled calibration interventions compared to mechanical limit switches.

Quality Assurance & Global Logistics

Every Pepperl+Fuchs 3RG4023-0JB00 unit dispatched from our Xiamen, China facility is sourced through documented supply channels with full batch traceability. Physical inspection covers housing markings, date codes, and connector geometry against genuine P+F reference samples. Functional verification confirms correct NAMUR current output in both actuated and unactuated states using calibrated bench equipment before packaging. Original factory packaging, anti-static protection, and accompanying documentation are verified intact prior to dispatch.

Shipments originate from Xiamen, Fujian Province, China — a major international logistics hub with direct access to DHL Express, FedEx International Priority, UPS Worldwide Expedited, and consolidated sea freight (LCL/FCL) services. Standard in-stock orders are dispatched within 1–3 business days. Export documentation — commercial invoice, packing list, certificate of origin, and ATEX/IECEx certificates on request — is prepared concurrently with shipment. HS code classification assistance and export licensing guidance are available for regulated destinations. Single-unit orders are accepted; volume pricing applies for quantities of 5 units and above. All units carry a 12-month warranty from dispatch date covering manufacturing defects.
