Proface AGP3550-BASE D05045B HMI Base Board – AGP3550 Series

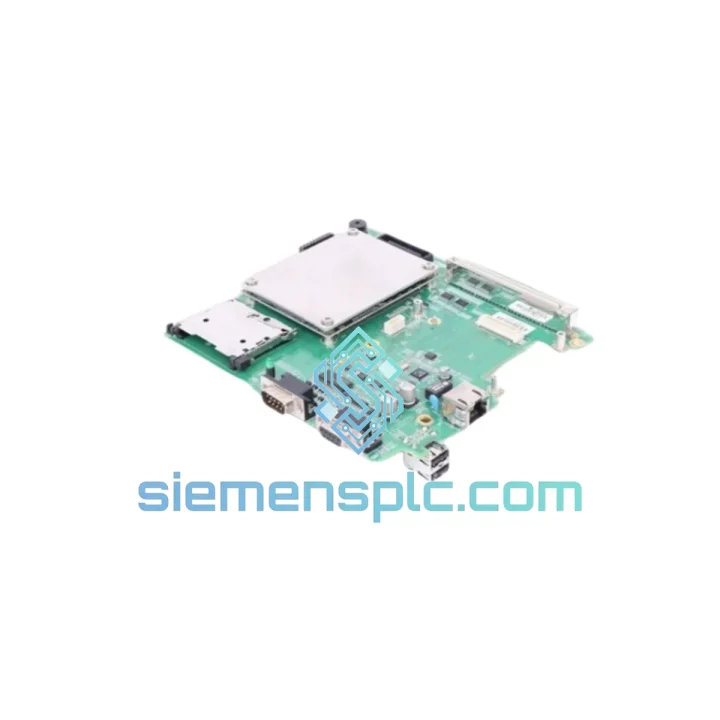

Proface AGP3550-BASE D05045B: Main PCB Assembly for AGP3550 Series HMI Panels

The AGP3550-BASE D05045B is the primary circuit board assembly that forms the functional core of the Proface AGP3550 series Human Machine Interface panel. Within a control loop architecture, this board occupies the intersection between operator input, display rendering, and field-device communication — it is not a peripheral component but the central arbitration layer of the entire HMI unit. Every touchscreen event, every tag read from a connected PLC, and every alarm acknowledgment is processed through the logic paths embedded on this PCB. For plant engineers managing AGP3550 installations in continuous-process or discrete-manufacturing environments, maintaining a verified spare of this board is a direct risk-mitigation measure against unplanned downtime.

The D05045B revision designation is not cosmetic. Board revisions in the AGP3550 platform correspond to specific changes in connector pinout, firmware compatibility windows, and component-level specifications. Substituting an incorrect revision introduces the risk of firmware boot failure, display initialization errors, or communication port mismatches with the backplane. Procurement of the exact revision is therefore a technical requirement, not a preference.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The AGP3550-BASE D05045B integrates several hardware design disciplines that distinguish it from generic PCB assemblies in the HMI market.

Signal Isolation Architecture: Communication interfaces on the board — particularly the RS-422/485 serial ports — incorporate optocoupler-based galvanic isolation between the field-side signal lines and the board’s internal logic domain. This isolation barrier, typically rated at 500 V or greater in Proface designs, prevents ground-loop currents and transient voltage spikes originating from field wiring from propagating into the processor section. In environments with variable-frequency drives, large motor contactors, or long cable runs, this isolation is the primary defense against data corruption and hardware damage.

EMC Design Discipline: The board layout follows multi-layer PCB practices with dedicated ground planes separating high-frequency digital switching areas from analog and communication signal traces. Ferrite beads are placed at the entry points of external signal lines to attenuate high-frequency common-mode noise. The board’s metal mounting points provide a low-impedance path to chassis ground, completing the EMC shielding loop when the AGP3550 is correctly panel-mounted with a grounded enclosure.

Processor and Memory Subsystem: The AGP3550 platform uses an embedded processor architecture with dedicated flash storage for the GP-Pro EX project file and SDRAM for runtime tag buffering and screen rendering. The base board hosts the memory bus routing and the processor’s peripheral interfaces. Board revision D05045B reflects a specific memory controller configuration; mismatched revisions may fail to initialize the memory subsystem correctly during POST.

Display Drive Circuit: The LVDS (Low-Voltage Differential Signaling) interface between the base board and the TFT LCD panel is routed through a controlled-impedance differential pair. This design minimizes electromagnetic emissions from the display cable and maintains signal integrity at the pixel clock frequencies required for the AGP3550’s display resolution. Backlight control is managed through a PWM signal generated on the base board, allowing brightness adjustment without analog dimmer circuits.

Thermal Management: Key ICs on the board are specified for industrial temperature ranges. Thermal vias beneath high-dissipation components conduct heat to internal copper planes, distributing thermal load across the board area rather than concentrating it at component packages. This approach extends component service life in enclosures with limited convective airflow.

System Integration Benefits

• Deterministic screen refresh: The base board’s dedicated display controller maintains a fixed refresh cycle independent of communication bus load, ensuring operator displays remain responsive even during high-frequency PLC data polling intervals.
• Multi-protocol serial communication: Onboard RS-232 and RS-422/485 ports support simultaneous connection to PLCs from multiple vendors via GP-Pro EX protocol drivers, eliminating the need for external protocol converters in mixed-vendor control architectures.
• Ethernet connectivity for remote diagnostics: The 10/100BASE-TX Ethernet port enables remote project upload/download and runtime monitoring via GP-Pro EX Remote Viewer, reducing the need for on-site access during commissioning and troubleshooting.
• Alarm and event logging transparency: The board’s flash storage supports persistent alarm history logging that survives power cycles, providing maintenance teams with a timestamped fault record without dependency on an external data logger.
• Firmware field-upgradeability: GP-Pro EX project files and firmware updates can be transferred via USB or Ethernet, allowing software revisions to be deployed without board removal or factory return.
• Galvanic isolation on serial ports: Prevents ground-loop interference from corrupting PLC communication data, maintaining data integrity in electrically noisy industrial environments with shared grounding infrastructure.
• Plug-and-play board replacement: The D05045B revision maintains full mechanical and electrical compatibility with the AGP3550 chassis, allowing board swap without enclosure modification or wiring changes, minimizing mean time to repair (MTTR).
• Standardized spare-part management: A single board SKU covers the full AGP3550 platform variants sharing the D05045B revision, simplifying spare-parts inventory management for multi-site plant operations.
• GP-Pro EX project portability: Projects developed on any AGP3550 unit with D05045B revision are directly transferable to a replacement board without re-engineering, preserving engineering investment in existing HMI configurations.

Quality Assurance & Global Logistics

Every AGP3550-BASE D05045B unit supplied through siemensplc.com is sourced from authorized Proface distribution channels or verified surplus inventory with full traceability documentation. Prior to shipment, each board undergoes functional verification including power-on self-test confirmation and communication port continuity checks. Units are packaged in anti-static ESD bags with moisture-barrier outer packaging and cushioned cartons rated for international air freight handling.

Shipments originate from our warehouse in Xiamen, China — a logistics hub with direct access to major international express carriers including DHL Express, FedEx International Priority, and SF Express International. Transit times to Southeast Asia typically range from 2 to 4 business days; to Europe and North America, 3 to 6 business days under standard express service. Expedited same-day dispatch is available for orders confirmed before 14:00 CST. A certificate of conformance and commercial invoice with accurate HS code declaration are provided with every shipment to facilitate customs clearance. The 12-month warranty covers manufacturing defects and covers board replacement or credit at our discretion.
