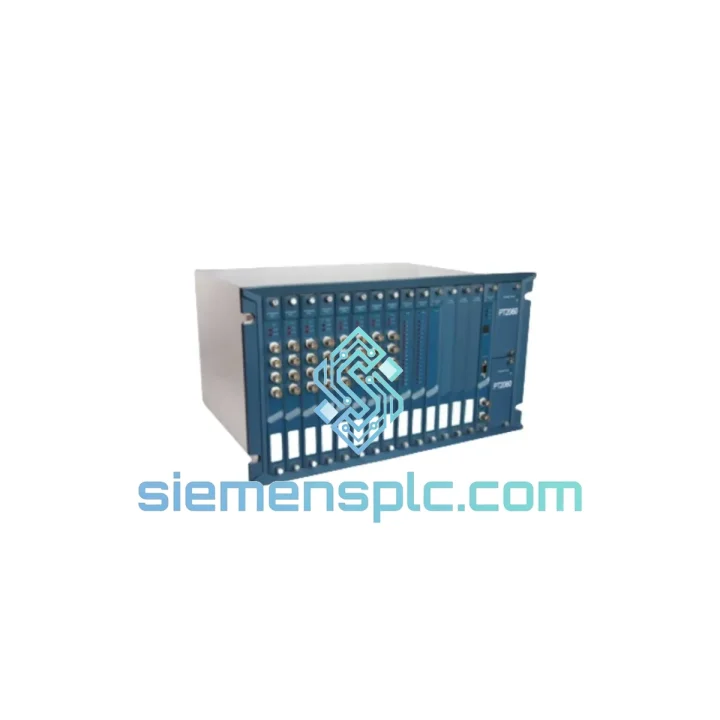

ProvibTech PT2060/40 Vibration Monitor

PT2060/40 Down? Every Minute Costs You — We Ship Same Day from Xiamen

Your compressor tripped at 03:00. The DCS is screaming. Maintenance is on-site and the shift supervisor is breathing down your neck. You’ve isolated the fault to the vibration monitor rack — the PT2060/40 is dead. You need a replacement, not a sales pitch.

We stock the ProvibTech PT2060/40 in Xiamen. Verified original. Bench-tested before dispatch. DHL Express or FedEx IP out the door within 24 hours of payment confirmation. That’s the only thing that matters right now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work, these are the failure modes I see most often on the PT2060/40 — and the traps that catch engineers during swap-out:

1. Channel Address Conflict After Hot-Swap
The PT2060/40 uses a rotary DIP switch on the rear panel to set its rack address. If you’re dropping a replacement into an existing rack, confirm the address matches the failed unit before powering up. A mismatch causes the DCS to see a duplicate node — you’ll get a comms fault that looks like a hardware failure but isn’t. Pull the old unit’s address label or check the as-built drawing before touching the switch.

2. Firmware Version Mismatch
If your plant is running PT2060/40 units manufactured before 2019, the Modbus register map may differ from current production firmware. Before commissioning the replacement, connect via RS-485 and read the firmware version string (register 0x0001). If it doesn’t match your existing units, request a firmware downgrade file from ProvibTech or contact us — we can pre-flash to your required version before shipping.

3. Probe Gap Voltage Out of Range After Reinstall
Eddy current probes are gap-sensitive. If the replacement module shows a Probe Fault or Gap Error alarm immediately after power-up, don’t assume the module is defective. Check the probe gap voltage at the BNC input — it should sit between −10 V and −18 V for standard 5 mm probes. A reading outside this range means the probe was disturbed during the swap, not that the monitor is bad.

4. Relay Output Polarity
The PT2060/40 relay outputs are normally energized (fail-safe). If your interlock logic was wired for normally de-energized, the replacement will trip the machine immediately on power-up. Verify your wiring diagram against the terminal block label before energizing.

5. 4–20 mA Loop Calibration
After replacement, perform a zero/span check on each active channel. The factory calibration is set to ProvibTech probe defaults. If your plant uses third-party sensors, the scale factor stored in EEPROM will need to be re-entered via the front-panel keypad or configuration software.

Reliability in Harsh Conditions

The PT2060/40 is not a lab instrument. It was designed for the floor — turbine halls, compressor buildings, and pump stations where ambient temperature swings 40°C between day and night, where condensation forms on cold mornings, and where the floor vibrates at 50 Hz continuously.

The chassis uses conformal-coated PCBs to resist moisture ingress and corrosive atmospheres common in petrochemical and offshore environments. The power supply section is rated for 24 VDC with ±10% tolerance, handling the voltage sags that occur during motor starts on shared bus systems. Relay contacts are rated for 5 A at 250 VAC — robust enough for direct interlock wiring without intermediate relays in most applications.

Vibration immunity is tested to IEC 60068-2-6 (sinusoidal) and IEC 60068-2-64 (random), covering the frequency ranges generated by rotating machinery from 10 Hz to 2,000 Hz. The DIN rail mounting clips are stainless steel — they don’t loosen over thermal cycles the way zinc-alloy clips do on cheaper units.

In high-humidity environments, the non-condensing rating to 95% RH is backed by the conformal coating, but for installations in tropical coastal plants or near cooling towers, we recommend adding a cabinet heater to keep the enclosure above the dew point. That’s not a PT2060/40 limitation — it’s basic panel engineering.

Global Express Logistics

Our warehouse is in Xiamen, Fujian — one of China’s primary export hubs with direct access to Xiamen Gaoqi International Airport and Xiamen Port. This matters when you’re counting hours, not days.

• Payment confirmed → unit pulled from shelf, bench-tested, photographed
• Packed in anti-static foam with original accessories; outer carton double-taped and labeled with HS code 9031.80 for smooth customs clearance
• DHL Express or FedEx International Priority booked — tracking number sent within 2 hours of handover
• Transit times: Southeast Asia 1–2 days | Middle East / Europe 3–4 days | Americas 4–5 days
• Commercial invoice and packing list provided; FORM E (ASEAN) or CO available on request for duty reduction
• For critical shutdowns, same-day airport pickup in Xiamen can be arranged for courier hand-carry — contact us to confirm

We’ve shipped to refineries in Saudi Arabia, power plants in Vietnam, paper mills in Finland, and compressor stations in Kazakhstan. The process is the same every time: fast, documented, and traceable.
