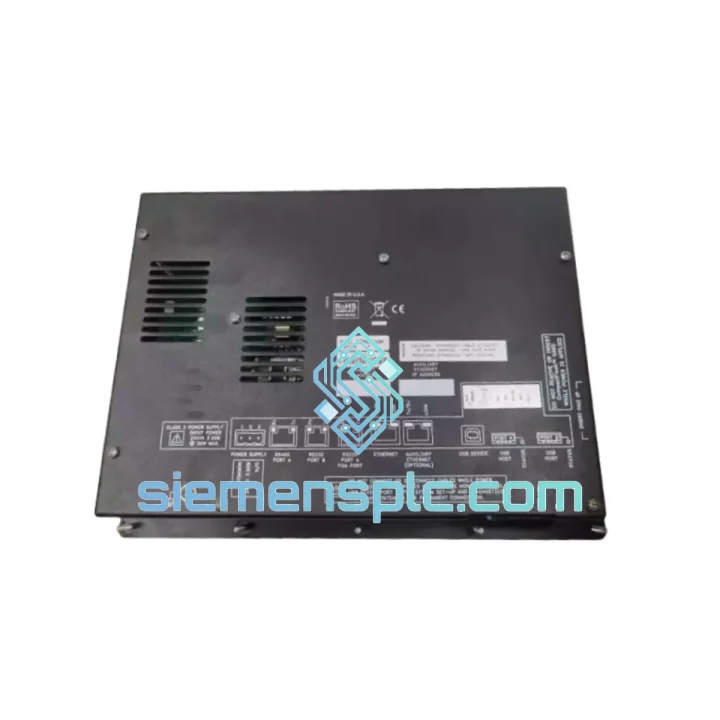

Red Lion OEMG3D30 HMI Display Module – OEM Graphical Series

Red Lion OEMG3D30: OEM Graphical HMI Module for Embedded Industrial Panel Integration

The Red Lion OEMG3D30 is a panel-embedded graphical human-machine interface module engineered for OEM machine builders who require a compact, bezel-free display unit with deterministic serial communication and robust industrial-grade signal handling. Unlike standard front-panel HMI units, the OEMG3D30 is designed to be recessed into a machine enclosure, eliminating the external bezel and reducing the overall panel footprint. Its 3.0-inch STN graphical LCD delivers 128 × 64 pixel resolution — sufficient for alphanumeric status readouts, bar graphs, trend displays, and operator prompt screens in space-constrained control cabinets.

The module operates on a 24 VDC nominal supply (18–30 VDC operating range), drawing approximately 150 mA under typical display load. Its operating temperature range of 0 °C to +50 °C and storage range of −20 °C to +70 °C align with standard industrial enclosure thermal profiles. The OEMG3D30 communicates via RS-232 and RS-485 serial interfaces, supporting Modbus RTU, DF1 Full-Duplex, and a range of proprietary PLC driver protocols through Red Lion’s Crimson 3.x configuration environment. This multi-protocol flexibility allows a single hardware SKU to interface with Allen-Bradley MicroLogix, Siemens S7-200/300, Mitsubishi FX-series, Omron CJ/CS, and Schneider Modicon PLCs without hardware modification — only a driver selection change in firmware.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The OEMG3D30 is built on Red Lion’s G3 hardware platform, which uses a 32-bit RISC processor clocked at 200 MHz to handle concurrent tasks: display rendering, serial communication polling, tag database updates, and alarm management. The firmware scheduler operates on a fixed-priority preemptive model, ensuring that communication polling cycles are not starved by display refresh operations — a common failure mode in lower-cost HMI designs that use cooperative multitasking.

Serial signal integrity is maintained through hardware-level RS-485 transceiver ICs with automatic transmit/receive direction switching, eliminating the need for external flow-control logic in half-duplex Modbus RTU networks. The RS-232 port uses a dedicated UART with 16-byte hardware FIFO buffers, reducing CPU interrupt overhead during high-baud-rate communication (up to 115,200 bps). This architecture allows the OEMG3D30 to sustain sub-100 ms tag update cycles on networks with up to 32 Modbus slave nodes — a performance envelope that covers the majority of small-to-medium machine control applications.

EMC immunity is addressed at the PCB level through ground plane partitioning that separates the digital processing domain from the analog display driver circuitry. Decoupling capacitors are placed at each power rail entry point, and the RS-485 transceiver inputs are protected by transient voltage suppression (TVS) diodes rated for ±15 kV ESD per IEC 61000-4-2. The module’s plastic enclosure is designed for integration into a grounded metal panel, which provides the primary shielding against radiated emissions. In environments with high conducted interference — such as variable-frequency drive (VFD) installations — a ferrite bead on the 24 VDC supply line is recommended to attenuate common-mode noise above 1 MHz.

The Crimson 3.x tag database supports up to 2,000 tags with configurable scan rates per tag group, allowing engineers to assign faster polling intervals (e.g., 100 ms) to critical process variables while relegating low-priority status bits to 1-second scan groups. This tiered polling architecture reduces bus utilization without sacrificing responsiveness on critical control loops.

System Integration Benefits

• Protocol-agnostic serial interface: A single OEMG3D30 unit can communicate with over 200 PLC and controller types via Crimson 3.x driver library, eliminating the need for protocol converters or gateway hardware in mixed-vendor automation architectures.
• Deterministic tag update latency: The fixed-priority RTOS scheduler guarantees that communication polling is not deferred by display rendering tasks, delivering consistent sub-100 ms data refresh rates on standard Modbus RTU networks.
• Reduced panel engineering time: The bezel-free OEM form factor integrates directly into custom machine enclosures without secondary mechanical framing, cutting panel fabrication time by eliminating bezel cutout tolerancing and gasket installation steps.
• Alarm management with event logging: Crimson 3.x supports discrete and analog alarm definitions with configurable deadbands, acknowledgment requirements, and on-board event log storage — providing operators with a timestamped fault history without requiring a separate SCADA historian for basic diagnostics.
• Multi-language display support: The graphical LCD supports custom character sets and Unicode-compatible font rendering, enabling localized operator interfaces for multilingual production environments without hardware changes.
• Scalable display architecture: The OEMG3D30 shares the Crimson 3.x project format with larger G3 display variants (OEMG3D50, G310, G315), allowing engineers to migrate projects to larger screens as machine complexity grows — preserving tag definitions, communication drivers, and screen logic.
• Diagnostic transparency via built-in data logging: The module supports internal data logging to non-volatile memory, enabling post-event analysis of process variable trends without external data acquisition hardware — a measurable reduction in diagnostic downtime during commissioning and fault investigation.
• Low-power standby mode: Configurable backlight timeout and display sleep functions reduce steady-state power consumption in applications where the HMI is not continuously monitored, extending LED backlight service life beyond the rated 50,000-hour MTBF.

Quality Assurance & Global Logistics

Every OEMG3D30 unit supplied through siemensplc.com is sourced as genuine Red Lion Controls original hardware — not refurbished, not third-party clone. Units are stored in a climate-controlled warehouse in Xiamen, China, in original anti-static packaging with factory seal intact where applicable. Prior to dispatch, each unit undergoes a functional verification check: power-on self-test confirmation, communication port continuity, and display pixel integrity inspection.

Shipment from Xiamen is executed via DHL Express, FedEx International Priority, or UPS Worldwide Expedited, with typical transit times of 3–7 business days to Europe, North America, Southeast Asia, and the Middle East. All shipments include a commercial invoice, packing list, and certificate of conformance. For customers requiring customs pre-clearance documentation — including HS code declaration (8537.10 for programmable display controllers) and country-of-origin certification — these are prepared at no additional charge.

A 12-month warranty covers manufacturing defects under normal operating conditions. Warranty claims are processed with a target 5-business-day turnaround for replacement dispatch. For time-critical production line applications, advance replacement units can be arranged upon request. Volume orders (10+ units) qualify for dedicated account management, consolidated shipping, and extended NET payment terms for qualified industrial buyers.
