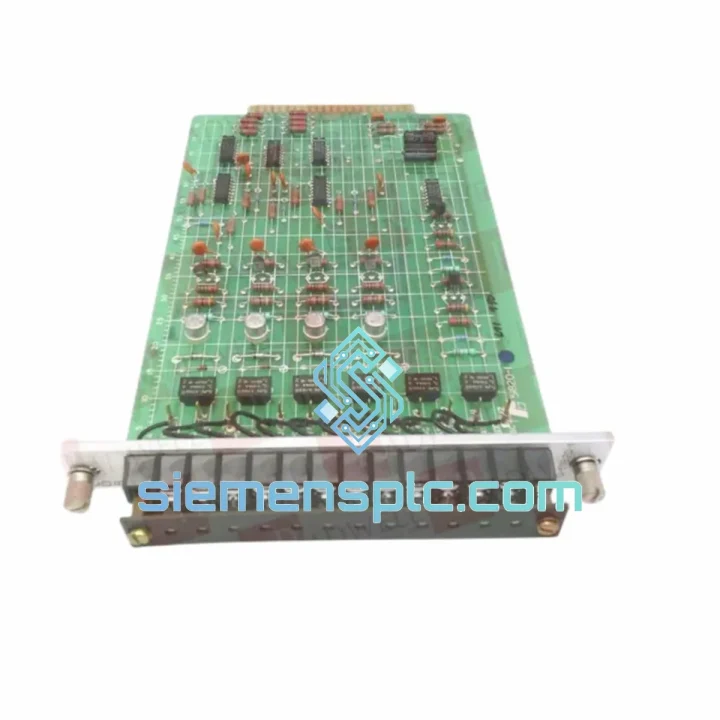

RELIANCE 0-51820-1 Pulse Driver Module

RELIANCE 0-51820-1 Pulse Driver – Stop the Clock on Your DC Drive Downtime

Every minute a FlexPak or GV3000 DC drive sits dead on the floor, your production line is bleeding money. The RELIANCE 0-51820-1 Pulse Driver is the exact board that controls pulse signal generation between the speed reference circuit and the firing section of the drive. When it fails, the drive either trips on a fault it can’t clear, runs erratically at wrong speeds, or refuses to start entirely. We stock this module in Xiamen and ship same-day on confirmed orders — because waiting two weeks for a part is not an option when a paper mill or steel line is down.

This is not a substitute, not a clone, not a “compatible” board. It is the original RELIANCE ELECTRIC 0-51820-1, pulled from verified OEM-surplus channels, bench-inspected, and ready to drop into your drive cabinet the moment it lands on your dock.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

How do you know the 0-51820-1 is the failed board and not something upstream? Here is the field diagnostic sequence used on FlexPak 3000 drives before condemning this module:

Step 1 — Fault Code Isolation. Pull the fault history from the drive keypad. Fault codes F004 (speed feedback loss), F007 (overcurrent at startup), and F015 (firing circuit fault) are the three most common indicators pointing directly at the pulse driver board. F004 alone can also be a tach or encoder issue — do not swap the board until you have ruled out the feedback device wiring.

Step 2 — Visual Inspection of the Board. Remove the 0-51820-1 with the drive de-energized and locked out. Look for: burned resistors near the SCR gate drive outputs, cracked solder joints on the edge connector, and any sign of electrolytic capacitor bulging on the regulator section. Capacitor failure is the single most common root cause on boards over 8 years old.

Step 3 — Jumper and DIP Switch Verification. The 0-51820-1 carries configuration jumpers that set the speed reference input type (voltage vs. current loop) and the IR compensation level. Before installing the replacement board, photograph the jumper positions on the failed board. The replacement must be set identically — a mismatch here will cause the drive to run at wrong speed or trip immediately on startup. Do not assume factory default positions match your application.

Step 4 — Edge Connector Seating. The board plugs into the drive backplane via a 64-pin edge connector. Oxidation on this connector is a frequent cause of intermittent faults that look like board failure. Before installing the new board, clean the backplane connector with isopropyl alcohol and a firm brush. Seat the replacement board with firm, even pressure — a partially seated board will cause erratic firing behavior.

Step 5 — First Power-Up Sequence. After installation, do not command a full-speed run immediately. Bring the drive up in manual/jog mode at 5–10% speed reference. Verify the tachometer feedback signal is stable on the drive’s diagnostic display. If the drive accepts the jog command without faulting, ramp to 25%, then 50%, then full speed in stages. This staged commissioning catches wiring errors before they become motor or load damage.

Common Mistake: Technicians sometimes replace the pulse driver board when the actual fault is a failed SCR in the power bridge. If the drive faults immediately on the first firing pulse even with a new 0-51820-1 installed, shift your diagnosis to the SCR bridge and gate wiring harness.

Reliability in Harsh Conditions

DC drive cabinets in steel mills, paper lines, and crane systems are not clean environments. The 0-51820-1 was designed and validated for exactly these conditions. The PCB substrate uses a glass-epoxy laminate rated for continuous operation at elevated temperatures, and the conformal coating on production-run boards provides a baseline barrier against condensation and airborne conductive particulates.

In vibration-intensive applications — crane hoists, rolling mill drives, compressor rooms — the edge connector interface is the mechanical weak point. RELIANCE addressed this in the FlexPak 3000 design with a positive-locking card guide that prevents the board from backing out under sustained vibration. When installing a replacement, confirm the card guide latch is fully engaged; a loose board in a high-vibration environment will fail within weeks regardless of board condition.

For high-humidity environments (coastal plants, washdown areas), inspect the backplane connector for green oxidation before installing the replacement. A corroded backplane connector will destroy a new board’s edge contacts within months. Clean or replace the connector before commissioning the new module.

Units shipped from our Xiamen warehouse are packed in anti-static bags with silica gel desiccant and humidity indicator cards. The outer carton is double-walled corrugated with foam corner protection rated for the mechanical shock levels of international air freight. The board arrives at your site in the same condition it left ours.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China’s primary export hubs with direct DHL and FedEx gateway access. Orders confirmed before 15:00 CST are dispatched the same business day. Here is what the logistics chain looks like from our dock to yours:

Day 0 (Order Confirmation): Payment confirmed, unit pulled from shelf, inspected, photographed, packed, and handed to DHL/FedEx courier. Tracking number issued to buyer within 2 hours of pickup.

Day 1–2 (Transit – Asia-Pacific): Shipments to Southeast Asia, Japan, South Korea, and Australia typically arrive within 2 business days via DHL Express Worldwide.

Day 2–3 (Transit – Europe & Middle East): DHL and FedEx International Priority services connect Xiamen to Frankfurt, Amsterdam, Dubai, and Riyadh hubs with 2–3 day transit times.

Day 2–4 (Transit – North America): FedEx International Priority from Xiamen to US and Canadian destinations averages 3–4 business days door-to-door. We provide HS code 8537.10 and full commercial invoice for smooth customs clearance.

All shipments include: commercial invoice, packing list, certificate of origin (Form E for ASEAN, standard COO for other regions), and a copy of our inspection record. For buyers in regulated industries requiring a certificate of conformance, this is available on request at no additional charge.

We do not use postal services or economy freight for industrial components. Every shipment moves on a tracked express service with full insurance coverage.
