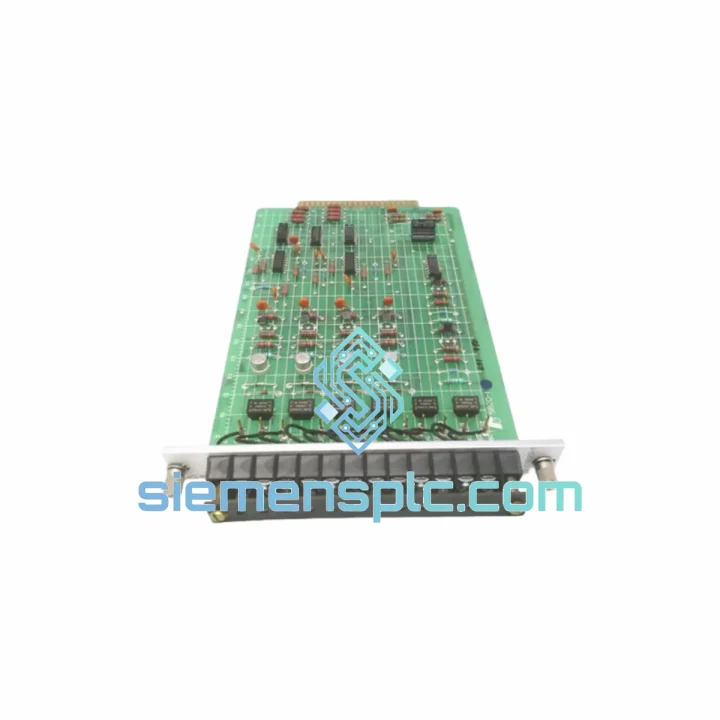

Reliance Electric 0-51820-1 Drive Control Board

Reliance Electric 0-51820-1 — Drive Down, Clock Running: Get This Board Shipped Before Your Next Shift Starts

You are not here to browse. Your drive is offline, your line is stopped, and every minute of idle time is burning money. The Reliance Electric 0-51820-1 Drive Control Board is on the shelf in our Xiamen warehouse right now. Confirm before 14:00 CST and it leaves today. That is the only thing that matters at this point.

This board is the central intelligence of Reliance Electric variable speed drive platforms — AC and DC variants alike. It handles speed reference acquisition, closed-loop PID regulation, gate pulse generation for the power stage, DC bus voltage monitoring, fault detection, and protection relay output. When it fails, the drive does not limp along in a degraded mode. It stops. There is no field repair path that makes economic sense in a production environment. You pull the board, you install a verified replacement, you recommission, and you restart. That sequence needs to happen in hours, not days.

We have executed this exact recovery scenario across steel mills, chemical plants, water treatment stations, paper lines, and offshore platforms. The cost of the board is never the issue. The issue is always time — and that is the one variable we can actually compress for you.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

These are the failure patterns that actually show up in the field — not the ones the manual covers, but the ones that send maintenance teams in circles for hours before they land on the control board as the root cause.

Fault Codes and What They Actually Mean on This Board:

• F-07 Overcurrent at Startup — Motor Tests Clean: The current sensing amplifier on the 0-51820-1 drifts under sustained thermal load. If motor insulation resistance is within spec and the fault clears with a substitute board installed, stop chasing the motor. The sensing circuit has failed. Board replacement is the only fix.
• Speed Hunting ±5–15% With Stable Analog Reference: The input conditioning section uses electrolytic capacitors rated for 8–12 years of continuous duty. When they degrade, the board processes a clean reference and outputs a noisy speed command. Trimming the speed pot does nothing. The capacitors are gone. Swap the board.
• DC Bus Charges, Zero Gate Pulses at IGBT Terminals: Scope the gate signal test points. Healthy bus voltage with absent or malformed gate pulses means the fault is in the PWM generation section of the control board — not the power stage. Condemning the power section here is a costly misdiagnosis.
• Intermittent F-01 Undervoltage With Confirmed Healthy Supply: The board monitors bus voltage through a precision resistor divider. Thermal cycling cracks these resistors over time, producing false low-voltage trips. Inspect under 10x magnification for hairline cracks. Board replacement is faster than component-level repair in any production context.
• Immediate Trip on Enable, No Load: Suspect the feedback signal conditioning section. A degraded board processing encoder or tach feedback can generate a velocity error large enough to trigger an immediate overcurrent or overspeed fault. Disconnect feedback, run open-loop, and isolate the board as the fault source before proceeding.

Replacement Procedure — Critical Steps the Manual Underemphasizes:

1. Verify DC bus discharge at the terminals with a calibrated meter. On large drives, capacitor discharge takes 5–10 minutes post-isolation. Do not rely on the drive’s internal discharge indicator.
2. Photograph every jumper and DIP switch position on both sides of the original board before removal. The 0-51820-1 carries configuration switches for speed reference scaling, current limit thresholds, and feedback mode selection. These settings are drive-specific and are not fully documented in the standard service manual. Lose them and you are commissioning from scratch.
3. Match the hardware revision. The revision is silkscreened near the part number. Drives manufactured after specific production cutoffs require a matching board revision. An older revision may power up and appear functional but produce load instability. Provide your drive’s full nameplate data when you contact us — we confirm revision compatibility before we ship.
4. Seat every connector completely. Ribbon cables and edge connectors are the leading cause of post-replacement callbacks on this board. Confirm every locking tab is engaged. A connector at 95% insertion will produce intermittent faults that are nearly impossible to diagnose without pulling the board again.
5. Run a full commissioning sequence before returning to service. Verify speed reference calibration end-to-end, test current limit response at 50% and 100% load, and confirm all fault relay outputs. A board that is not properly commissioned will produce nuisance trips within the first operating hour.

Reliability in Harsh Conditions

The environments where Reliance Electric drives operate are not controlled. They are hot, dirty, vibrating, and humid — sometimes all at once. The 0-51820-1 was not just rated for these conditions on a datasheet. It was deployed in them, repeatedly, over decades.

Vibration Resistance: Through-hole components are wave-soldered with reinforced fillets engineered to resist solder joint fatigue under continuous mechanical stress. Connectors use positive-locking retention rather than friction fit. In rolling mill applications, compressor skids, and marine installations where vibration is a baseline operating condition, this board has demonstrated multi-year MTBF without connector or joint failures. Friction-fit connectors on generic replacement boards fail within months in these environments.

Thermal Cycling Tolerance: The PCB substrate uses a high-Tg laminate that resists delamination under repeated thermal expansion and contraction cycles. In steel mill environments where ambient temperature swings from 15°C at startup to 55°C+ during peak production, standard FR4 boards delaminate at via barrels within two to three years. This board does not. The thermal design is the reason original Reliance Electric boards routinely outlast the drives they control.

Humidity and Contamination Resistance: The conformal coating on the board surface is an engineered barrier — not a cosmetic finish. It maintains insulation resistance against condensation, coolant mist, and conductive particulates in paper mills, food processing facilities, and coastal installations. Uncoated or lightly coated boards in these environments develop leakage currents that produce erratic behavior long before they generate a clean fault code. The 0-51820-1’s coating specification was written for exactly these conditions.

Every unit we ship from Xiamen is built to the original Reliance Electric manufacturing specification. The performance you get on day one is the performance the original board delivered when the drive was first commissioned.

Global Express Logistics

Our Xiamen dispatch hub ships to industrial facilities across Asia-Pacific, the Middle East, Europe, and the Americas. Here is exactly how your order moves from our warehouse to your site:

• Order Confirmed → Same-Day Pick and Pack: Orders confirmed before 14:00 CST are picked, verified against part number and revision, packed in anti-static and foam-lined cartons, and booked with the carrier the same business day. Commercial invoice and packing list are generated at booking.
• DHL Express Worldwide: Primary carrier for most destinations. Typical transit: 2–4 business days to Southeast Asia, 3–5 days to Europe and the Middle East, 4–6 days to North and South America. Full tracking from pickup to delivery confirmation.
• FedEx International Priority: Available as an alternative for destinations where FedEx network coverage is stronger, or for customers consolidating freight billing through an existing FedEx account.
• Customs Documentation: We prepare a complete export package — commercial invoice, packing list, certificate of origin, and HS code declaration. For markets with complex import requirements (India, Brazil, Indonesia, Saudi Arabia), we provide pre-shipment documentation review to prevent clearance delays. A customs hold caused by incomplete paperwork is avoidable, and we make sure it is avoided.
• Emergency Next-Flight-Out: For confirmed production-down situations, we can arrange courier dispatch from Xiamen Gaoqi International Airport on the next available flight to your destination. Contact us directly on WhatsApp for real-time coordination. This is a contingency we keep available because some situations require it.

We have shipped Reliance Electric components to manufacturing facilities in over 40 countries. The documentation is correct, the packaging protects the board in transit, and tracking is live from the moment the carrier scans the shipment.
