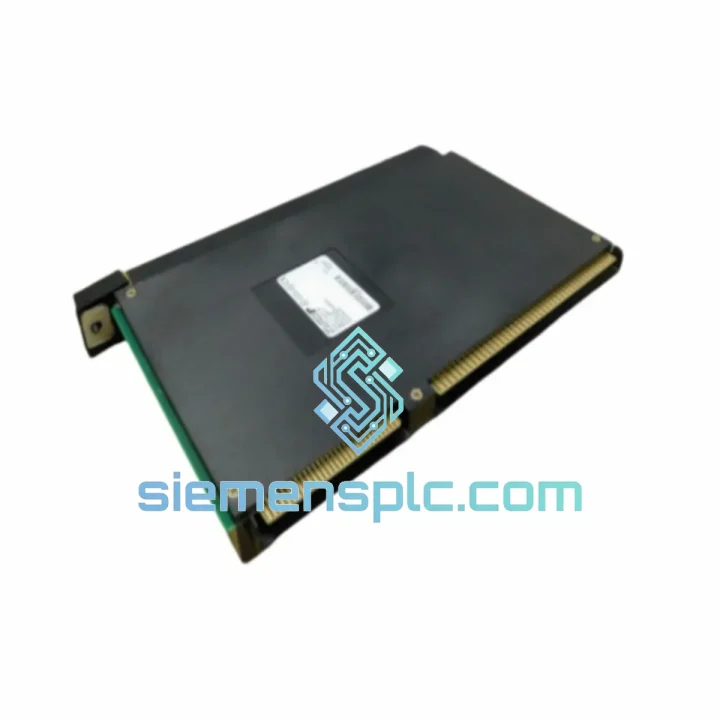

Reliance Electric 57C413B Common Memory Module – AutoMax DCS

Reliance Electric 57C413B — Dual-Port Common Memory Module for AutoMax Distributed Control Systems

The Reliance Electric 57C413B is a dual-port common memory module engineered for the AutoMax Distributed Control System (DCS) platform. Its primary function is to provide a shared, arbitrated memory space that multiple AutoMax processor boards can read from and write to within a deterministic scan cycle. In multi-processor rack configurations — common in heavy-drive applications such as rolling mills, winder sections, and multi-axis coordinated drives — the 57C413B eliminates the need for explicit inter-processor messaging by maintaining a single coherent data image accessible to all nodes on the backplane bus.

Unlike point-to-point communication schemes that introduce variable latency, the dual-port RAM architecture of the 57C413B allows each processor to access shared data within a fixed, bounded time window. This is a fundamental requirement in closed-loop tension control, speed synchronization, and torque-follower configurations where data staleness of even a few milliseconds can produce instability in the control loop.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 57C413B implements a dual-port SRAM arbitration scheme at the hardware level. Two independent address/data buses — one connected to the AutoMax backplane and one internal to the module’s memory array — are managed by an on-board arbitration controller. When two processors attempt simultaneous access to the same memory address, the arbiter grants priority to one port and holds the other in a wait state for a single bus cycle, typically in the range of 100–200 ns. This deterministic arbitration prevents data corruption without requiring software semaphore logic in the application program, which would otherwise consume processor scan time and introduce non-deterministic delays.

From an EMC (Electromagnetic Compatibility) standpoint, the 57C413B benefits from the AutoMax rack’s Faraday-cage enclosure and the backplane’s ground plane design. The module’s PCB layout routes high-frequency clock and data lines with controlled impedance traces and places decoupling capacitors at each power pin of the SRAM array. In steel mill and mining environments — where variable-frequency drives generate significant conducted and radiated emissions in the 2–30 MHz range — this layout discipline maintains signal integrity on the shared bus without requiring external filtering at the module level.

The revision B hardware introduced component-level updates relative to the original 57C413A, including replacement of end-of-life SRAM devices with functionally equivalent parts and minor PCB layout corrections to improve thermal margin at the upper operating temperature boundary. In the vast majority of AutoMax rack configurations, the 57C413B is a direct drop-in replacement for the 57C413A with no firmware or configuration changes required.

Power consumption of the module is supplied entirely from the +5 VDC backplane rail. The SRAM array and arbitration logic draw a combined quiescent current in the range of 150–300 mA depending on access frequency, which is well within the power budget of standard AutoMax rack power supplies. No auxiliary power connections are required.

System Integration Benefits

• Deterministic inter-processor data latency: Shared memory access is bounded by the arbitration cycle time, eliminating the variable latency inherent in message-passing or token-ring communication schemes used in alternative multi-processor architectures.
• Zero application-layer communication overhead: Processors read and write shared variables directly as memory-mapped addresses. No explicit send/receive instructions, handshake sequences, or communication buffers are required in the AutoMax application program, preserving scan time for control logic.
• Scalable multi-axis coordination: A single 57C413B supports data sharing across all processor boards installed in the same AutoMax rack, making it the enabling component for coordinated multi-drive applications such as tandem mill stands and multi-section winder controls.
• Transparent diagnostic visibility: Because shared data resides in a common memory space, any AutoMax programming terminal connected to the rack can read the current state of all shared variables in real time without interrupting the control scan — a significant advantage during commissioning and fault diagnosis.
• Reduced wiring and network infrastructure: Eliminating a dedicated inter-processor communication network (and its associated cabling, switches, and configuration) reduces both installation cost and potential failure points in the control architecture.
• Backward compatibility with existing AutoMax software: The 57C413B presents the same memory map and backplane interface as the 57C413A. Existing AutoMax application programs, configuration files, and HMI tag databases require no modification when replacing a 57C413A with a 57C413B.
• Extended platform service life: Stocking a verified 57C413B spare eliminates the primary single-point-of-failure risk in multi-processor AutoMax systems, allowing facilities to defer costly platform migrations while maintaining production reliability.
• Simplified spare-parts management: The module’s single-slot form factor and rack-powered design mean no additional power supplies, cables, or mounting hardware are required for a spare unit — reducing the total cost and complexity of the spare-parts inventory.

Quality Assurance & Global Logistics

Every Reliance Electric 57C413B unit offered through siemensplc.com is sourced through verified industrial supply channels and subjected to a structured incoming inspection process before being offered for sale. Inspection covers board-level visual examination for physical damage, corrosion, burned or missing components, and counterfeit indicators including label authenticity, PCB markings, and component date codes. Where test fixtures are available, modules undergo functional bench verification prior to shipment.

Units are stored in a climate-controlled warehouse in Xiamen, China, in ESD-safe anti-static packaging with moisture barrier protection. Xiamen’s port infrastructure — served by Xiamen Gaoqi International Airport and Xiamen Port — provides direct access to major international freight lanes, enabling express air freight delivery to destinations in Southeast Asia, the Middle East, Europe, and North America with typical transit times of 3–7 business days for DHL/FedEx/UPS express services.

All shipments include a commercial invoice, packing list, and certificate of origin. For customers requiring additional documentation — such as material test records, inspection reports, or customs pre-clearance paperwork — these can be arranged upon request at the time of order. A 12-month warranty covers manufacturing defects and early failure under normal operating conditions, with replacement or credit issued upon return and inspection of the failed unit.
