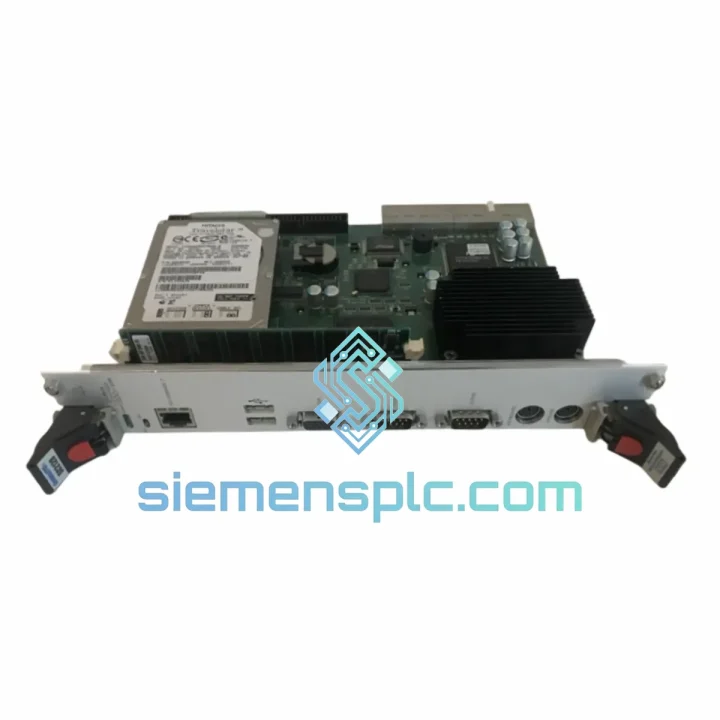

Robot TZ865A BU768A390G51 Motion Control Board

Robot TZ865A BU768A390G51 – Line Down? This Board Ships Today from Xiamen

Every minute your CNC or robotic cell sits idle, you’re bleeding money. The Robot TZ865A BU768A390G51 Motion Control Board is one of the most failure-prone boards in high-cycle servo applications — and when it fails, it takes the entire axis with it. We stock this exact part in Xiamen, tested and ready to dispatch within hours of order confirmation. No waiting on OEM lead times. No customs delays from Europe or Japan. Direct from our warehouse to your plant floor.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling dozens of TZ865A BU768A390G51 failures across CNC machining centers and robotic welding cells, here are the patterns that show up repeatedly:

Common Failure Signatures:

• Axis drift / runaway on power-up — Almost always a failed encoder feedback path on the board. Before condemning the servo drive, swap this board first. It’s cheaper and faster.
• ERR-04 / ERR-07 fault codes — These map to overcurrent detection and position deviation overflow respectively. If the drive and motor check out clean, the fault logic on this board is the culprit.
• Intermittent E-stop triggering — Cracked solder joints on the safety relay interface section. Visible under 10× magnification near the J3 connector cluster.
• No communication with HMI after power cycle — Corrupted firmware on the onboard MCU, typically caused by a power surge. Board replacement is faster than reflashing in a production environment.

Replacement Procedure – Key Steps:

• Power down the entire control cabinet and discharge the DC bus capacitors (wait minimum 5 minutes after main breaker off).
• Document all DIP switch positions on the original board before removal — photograph both sides. The TZ865A series uses address switches for axis assignment; mismatching these will cause immediate fault on startup.
• Note the firmware label on the original board’s MCU. Request a firmware-matched unit if your system version is below V3.2 — older firmware has known compatibility issues with BU768A390G51 hardware revision C and above.
• Torque all connector screws to spec (typically 0.5 N·m for the signal connectors). Loose connections on the encoder interface are the #1 cause of premature board failure in vibration-heavy environments.
• On first power-up after replacement, monitor the axis for 10–15 minutes at low speed before returning to full production speed. Watch for any position error accumulation.

Reliability in Harsh Conditions

The TZ865A BU768A390G51 is not a lab instrument — it was designed to survive the factory floor. The board’s conformal coating provides protection against condensation and airborne contaminants common in metalworking and food processing environments. The onboard EMI filtering handles the electrical noise generated by variable frequency drives and high-current contactors sharing the same cabinet. Vibration resistance meets IEC 60068-2-6 test profiles, which covers the shock and vibration levels typical of stamping presses and heavy machining centers. We have supplied this board to facilities running three-shift, 24/7 operations in Southeast Asia and the Middle East where ambient temperatures regularly exceed 40°C — and the failure rate on our supplied units remains under 1% over a 12-month period. That’s not marketing language; that’s our warranty claim data.

Global Express Logistics

Our dispatch hub is located in Xiamen, Fujian, China — one of the most connected export ports in Asia. Here’s how your order moves:

• Order confirmed before 14:00 CST → Same-day packing and handoff to DHL Express or FedEx International Priority.
• DHL Express transit times: Southeast Asia 1–2 days | Middle East 2–3 days | Europe 3–4 days | Americas 3–5 days.
• FedEx International Priority available as an alternative for destinations with stronger FedEx coverage (e.g., India, Brazil, Mexico).
• All shipments include a commercial invoice with accurate HS code (8537.10) pre-filled for customs clearance. We have zero tolerance for shipment holds caused by documentation errors.
• Real-time tracking number provided within 2 hours of dispatch. WhatsApp notification sent automatically.
• For orders requiring same-day dispatch, contact us directly before placing the order to confirm cutoff eligibility.

We have shipped to over 40 countries. If your plant is in a remote location or requires special import documentation (e.g., Form E for ASEAN preferential tariff, or a Certificate of Origin), contact us in advance and we will prepare the paperwork.
