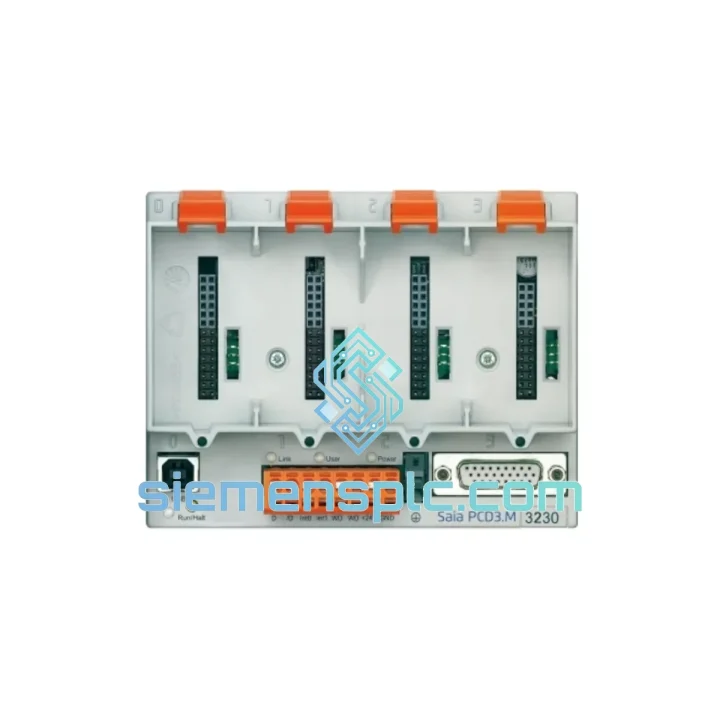

SAIA BURGESS PCD3.M3230 PLC CPU Module

PCD3.M3230 Line Down? Ship the Replacement Before the Next Shift Starts

When a PCD3.M3230 fails mid-production, the entire rack goes dark. Every I/O module downstream — digital inputs, analog outputs, communication cards — becomes inert. HVAC sequences drop to manual override. Dosing pumps run blind. Conveyor logic freezes mid-cycle. The PCD3.M3230 is not a peripheral; it is the execution core of the entire PCD3 rack architecture. There is no workaround, no bypass, no software patch. The only path back to production is a direct hardware replacement.

We maintain stock of the PCD3.M3230 in our Xiamen warehouse specifically for this scenario. No lead time negotiation, no factory order queue, no distributor back-and-forth. You confirm the order, we ship the same day. DHL and FedEx Express cover your site within 3–6 business days depending on destination. Every hour your line is down has a cost — we exist to cut that number as short as possible.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fault pattern recognition — what the LEDs are telling you:

• ERR LED solid, RUN LED off: The CPU has halted. Root causes in order of probability: watchdog timeout triggered by a runaway task, corrupted OS image from a power interruption during a firmware update, or a failed backup battery that caused RAM loss on the last power cycle. Hold the RUN/STOP switch to STOP and cold-boot. If ERR persists beyond 45 seconds with no RUN activity, the CPU is unrecoverable — proceed to replacement.
• Ethernet link LED dead, no ping response: Eliminate the cable and switch port first. If a known-good cable and port still yield no link LED, the onboard PHY has failed — a common failure mode after a nearby lightning strike or unprotected surge event. Module replacement is the only resolution; the PHY is not field-serviceable.
• S-Bus dropouts, intermittent I/O read errors: Verify 120 Ω termination resistors are fitted at both physical ends of the RS-485 bus. If termination is correct and dropouts persist, the RS-485 driver on the M3230 is degraded. This often presents as errors that worsen with temperature — a classic sign of a marginal driver IC.
• PG5 online connection refused: Confirm the IP address in PG5 Device Configurator exactly matches the module’s configured address. A firmware (OS) version mismatch between PG5 and the CPU will also block the connection — check the SAIA compatibility matrix for your PG5 release before downloading to a replacement unit.

Step-by-step replacement protocol:

1. Upload and back up the project. If the CPU is still partially functional, perform an online upload from PG5 to capture the live program. Save the .PG5 project file to a local drive and a network share. The PCD3.M3230 does not retain program in non-volatile flash if the backup battery is depleted — do not assume the program is safe.
2. Record all network parameters. Note the IP address, subnet mask, default gateway, and any static S-Bus node addresses configured in the outgoing module. These are not stored in the backplane and must be manually re-entered in the replacement unit via PG5 Device Configurator.
3. Inspect and replace the backup battery. The PCD3.M3230 uses a lithium coin cell (verify exact type against the SAIA hardware manual for your revision) to retain RAM contents and the real-time clock during power loss. If the battery is at or below the low-battery threshold, replace it during the module swap. A dead battery on a newly installed CPU will cause program loss on the next power interruption — a second emergency you do not need.
4. Verify slot 0 placement. The CPU must be seated in slot 0 — the leftmost position of the PCD3 rack. Inserting the CPU in any other slot will prevent the rack from initializing. In multi-rack systems, confirm the rack address DIP switches on each expansion rack are set to unique, non-conflicting addresses before powering up. Duplicate rack addresses generate I/O communication faults that are easily misdiagnosed as hardware failures.
5. Firmware compatibility check before download. Match the OS version on the replacement module to the version your PG5 project was compiled against. If the replacement ships with a newer OS, test the download in a staging environment or contact us — we can advise on the correct firmware revision for your application and, in some cases, supply a unit pre-loaded to your required OS version.
6. Commission and verify. After download, switch to RUN mode and monitor the PG5 diagnostic view for a minimum of 10 minutes. Confirm all I/O modules are recognized, all communication links are active, and no fault flags are present before returning the system to operations control.

Reliability in Harsh Conditions

The PCD3.M3230 was engineered for plant-floor realities, not laboratory conditions. The PCB assembly incorporates selective conformal coating on signal-critical areas, providing a barrier against condensation, cleaning agents, and airborne particulates encountered in food processing, pharmaceutical, and coastal marine installations. The power input section includes transient voltage suppression rated for the irregular power quality typical of sites with large motor loads and frequent switching events.

Mechanical robustness is validated to IEC 60068-2-6 sinusoidal vibration profiles, qualifying the module for installation in pump stations, compressor enclosures, and mobile plant panels where continuous low-frequency vibration is a given. The +55 °C operating ceiling allows deployment in non-air-conditioned electrical rooms in tropical and subtropical climates without thermal derating. EMC immunity testing to the EN 61000-4 series ensures the CPU maintains communication integrity when large variable-frequency drives and high-current contactors switch in the same panel or adjacent equipment.

The hardware watchdog circuit operates independently of the CPU’s software execution layer. If a task overrun or software fault causes the processor to hang, the watchdog asserts a controlled reset without operator intervention — a non-negotiable requirement for unattended remote installations in water treatment, pipeline monitoring, and building management applications where the PCD3 platform has established a long field track record.

Global Express Logistics

Our dispatch point is Xiamen, Fujian — a tier-1 international cargo hub with dedicated DHL Express and FedEx International Priority lanes to all major industrial markets. The logistics process from order confirmation to your receiving dock:

• Cut-off and same-day dispatch: Orders confirmed before 14:00 CST are packed and collected by the carrier the same business day. The PCD3.M3230 is shipped in an anti-static shielding bag inside a rigid foam-lined carton — the packaging survives the handling that express freight actually receives.
• Transit benchmarks (real-world averages): Western Europe 3–5 business days; US East Coast 4–6 business days; Southeast Asia 2–3 business days; Middle East 4–5 business days; Australia 4–6 business days.
• Carrier selection: We default to the carrier with the strongest coverage and fastest transit for your specific destination. If you have a preferred carrier account or a freight forwarder you want us to hand off to, specify at order time.
• Export documentation: Commercial invoice, packing list, and certificate of origin are prepared in-house. HS code 8537.10 is declared correctly on all shipments. EUR.1 movement certificates are available for EU-bound shipments where applicable under trade preference agreements.
• Proactive tracking: A carrier tracking number is sent to your email within 2 hours of dispatch. We monitor shipments through to delivery — if a customs hold or routing exception occurs, we contact you directly and engage the carrier to resolve it without waiting for you to chase.
• Production emergency freight: For genuine line-down situations requiring next-flight-out service, contact us via WhatsApp for real-time coordination. We have handled time-critical shipments to active offshore platforms and remote mining sites — urgency is not a problem we are unfamiliar with.
