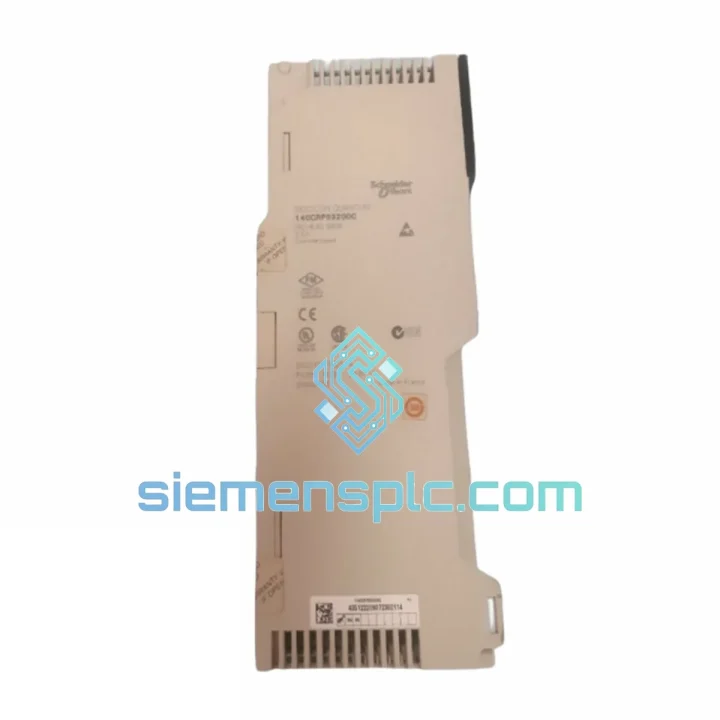

Schneider Electric 140CRP93200C Remote I/O Adapter

140CRP93200C Down? Every Minute Costs You — We Ship Same Day from Xiamen

Your Quantum RIO drop just went silent. The head adapter is dead, the entire remote rack is offline, and your DCS is throwing a cascade of I/O faults. You’ve already lost one shift. You cannot afford to wait three weeks for a factory order. That’s exactly why we stock the Schneider Electric 140CRP93200C — verified, tested, ready to pull from the shelf and put on a DHL flight today.

We are not a catalog. We are a stocking distributor with a warehouse in Xiamen, China, built specifically for emergency MRO procurement across Asia-Pacific, the Middle East, and Europe. When your plant is down, call us first.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field calls, here is what actually kills a 140CRP93200C and what you need to know before you swap it out:

Common Failure Signatures

• MB+ LED solid red or no LED at all — The MB+ ASIC has failed or the module has lost its token. First rule out a broken trunk cable or missing terminator before condemning the adapter. Measure resistance across the MB+ trunk at the tap: you should read ~150 Ω. Anything outside 100–200 Ω means a wiring fault, not a dead module.
• All I/O in the remote drop goes to fallback state — The CPU loses the RIO drop and forces outputs to their configured fallback values. Check the Quantum diagnostics screen in Unity Pro: if you see error code RIO Drop Offline or Head Adapter Communication Fault, the 140CRP93200C is the primary suspect after ruling out power supply issues at the remote rack.
• Intermittent I/O faults correlating with temperature cycles — Classic sign of a failing solder joint on the MB+ transceiver. The module works cold, drops out when the cabinet heats up. Replace the adapter; re-soldering in the field is not reliable.
• Module powers up but never acquires the MB+ token — Check the node address DIP switches on the front of the module. Each node on a MB+ network must have a unique address (1–64). If a replacement module ships with factory default address 1 and another node already holds address 1, you will get a token conflict and neither node will communicate reliably.

Replacement Procedure — Step by Step

1. Place the Quantum CPU in STOP mode. Do not hot-swap the 140CRP93200C while the CPU is in RUN — the RIO drop will fault hard and may trigger safety interlocks downstream.
2. Record the existing DIP switch node address on the failed module before removing it. Photograph it. This is the single most common mistake in field replacements.
3. Power down the remote rack power supply (140CPS series). The 140CRP93200C draws 5 VDC from the backplane; removing it under power risks backplane damage on older racks.
4. Slide the module out of the rack slot. Inspect the backplane connector pins for corrosion or bent contacts — a damaged backplane connector will kill a new module within weeks.
5. Set the DIP switches on the replacement 140CRP93200C to match the recorded node address exactly.
6. Seat the new module firmly until the locking tabs click. Restore rack power.
7. Place the CPU back in RUN. The RIO drop should re-acquire within 2–3 scan cycles. Monitor the MB+ LED: it should flash green (token passing) within 10 seconds.
8. In Unity Pro, navigate to PLC Bus → I/O Map and verify all remote I/O modules in the drop are recognized. Force a few discrete outputs to confirm end-to-end communication before releasing the line.

Firmware Note: The 140CRP93200C does not carry user-upgradeable firmware. If you are replacing a module in a Hot Standby (HSB) configuration, ensure both primary and standby CPUs are running the same Unity Pro project version before returning to RUN mode. A project mismatch after a hardware swap is a common cause of HSB switchover failures during commissioning.

Reliability in Harsh Conditions

The Modicon Quantum platform was engineered for the environments that break lesser hardware. The 140CRP93200C is not a commercial-grade board dressed up in an industrial enclosure — it is designed from the ground up for continuous duty in conditions that would destroy consumer or light-industrial electronics.

The module’s conformal-coated PCB resists condensation and airborne contaminants common in coastal petrochemical plants and humid tropical facilities. The MB+ transceiver circuitry is shielded against the high-frequency electrical noise generated by variable-frequency drives, large motor starters, and arc welding equipment — the exact environment you find in automotive body shops and steel mills where Quantum systems have run for 20+ years without replacement.

Vibration tolerance meets IEC 68-2-6 specifications, which means the module survives the continuous low-frequency vibration of compressor halls, pump stations, and mining conveyor drives without connector fatigue or component migration. The operating temperature ceiling of 60 °C covers the majority of industrial cabinet installations even in Middle Eastern and Southeast Asian climates without forced cooling.

The Quantum backplane connector is a gold-plated, high-cycle-rated interface. Unlike some competing platforms where repeated module swaps degrade the connector, the Quantum rack is designed for MRO replacement cycles — you can pull and re-seat modules dozens of times without compromising contact integrity.

Storage temperature down to −40 °C means units held in unheated warehouses or shipped through cold-chain logistics in northern climates arrive fully functional. We store our inventory in climate-controlled conditions in Xiamen, but the module itself is built to handle the unexpected.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to Xiamen Gaoqi International Airport and daily consolidated freight departures to major global destinations.

Standard Express Routing:

• DHL Express Worldwide — Door-to-door delivery to most destinations in 2–4 business days. Real-time tracking from pickup to delivery. Preferred for Europe, Middle East, and Southeast Asia.
• FedEx International Priority — 1–3 business day service to North America and select Asia-Pacific destinations. Ideal for US, Canada, and Australia.
• TNT / UPS — Available on request for specific country requirements or customer account billing.

Export Documentation: We prepare a full commercial invoice, packing list, and certificate of origin for every shipment. For customers requiring customs clearance support, we can provide HS code documentation (HS 8537.10) and manufacturer datasheets to facilitate smooth import clearance. Dangerous goods declaration is not required for this module.

Typical Transit Times from Xiamen:

• Singapore, Malaysia, Thailand: 1–2 business days (DHL)
• UAE, Saudi Arabia, Qatar: 2–3 business days (DHL/FedEx)
• Germany, Netherlands, UK: 3–4 business days (DHL)
• USA (East Coast): 2–3 business days (FedEx IP)
• Australia: 2–3 business days (DHL)
• India: 2–4 business days (DHL, subject to customs)

For genuine plant-down emergencies, contact us via WhatsApp before placing your order. We will confirm stock, generate a proforma invoice, and book the courier pickup within hours — not days. Payment by T/T, PayPal, or credit card accepted for expedited processing.
