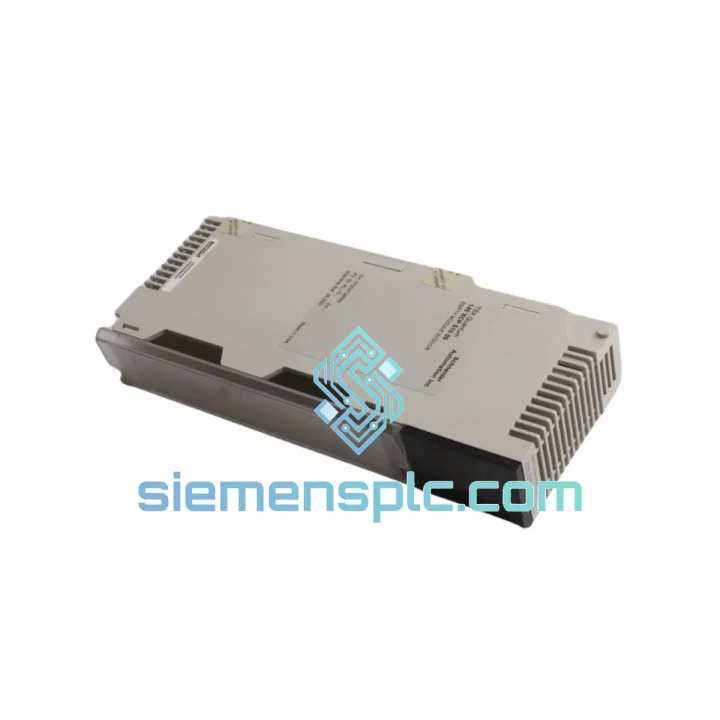

Schneider Electric 140SDI95300S Safety Discrete Input Module – Modicon Quantum

Schneider Electric 140SDI95300S – Safety Discrete Input Module for Modicon Quantum Safety PLC Architecture

In process-critical environments where a missed emergency stop signal can cascade into a catastrophic event, the integrity of the safety input tier is non-negotiable. The Schneider Electric 140SDI95300S is a 32-channel safety discrete input module purpose-built for the Modicon Quantum Safety PLC platform. It serves as the validated boundary between field-level safety devices — emergency stop buttons, safety light curtains, pressure switches, and gas detection contacts — and the deterministic safety logic executed by the Quantum Safety CPU. Every signal received by this module is subject to continuous diagnostic scrutiny before it is forwarded across the backplane, ensuring that the safety function remains intact even under single-fault conditions.

The 140SDI95300S is certified to IEC 61508 and supports Safety Integrity Level 2 (SIL 2) in simplex configuration and SIL 3 in redundant 1oo2D (one-out-of-two with diagnostics) architectures. It is deployed across oil and gas upstream and downstream facilities, chemical reactor safety systems, power generation turbine protection loops, and automotive press and robot cell safety fencing on six continents. Its physical form factor conforms to the Modicon Quantum 140-series rack standard, occupying a single slot and interfacing directly with the Quantum backplane bus at 5 V DC logic levels.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 140SDI95300S implements a dual-microprocessor internal architecture in which two independent processing cores — each running its own diagnostic cycle — cross-check input state data before committing any value to the backplane. This 1oo2D internal voting arrangement means that a single stuck-at fault in either processor path is detected within one diagnostic test interval, typically 10 ms, and the module transitions to a defined safe state rather than propagating an erroneous signal.

Optical Isolation Architecture: Each of the 32 input channels passes through a dedicated optocoupler stage rated at 500 V AC isolation between the field wiring and the module’s internal 5 V logic domain. This galvanic barrier prevents ground loops, common-mode transients, and high-energy surge events originating in the field from reaching the backplane bus. The optocoupler response time is characterized and factored into the module’s overall process safety time (PST) budget, which must be verified against the safety function’s required response time during SIL verification.

Pulse Test (OSSD Compatibility): The module’s input conditioning circuitry is designed to accept and correctly interpret the pulsed test signals generated by OSSD (Output Signal Switching Device) safety sensors such as Type 4 safety light curtains and safety laser scanners. The pulse filter parameters are factory-configured to reject test pulses of ≤ 1 ms duration while correctly registering genuine OFF-state transitions, eliminating nuisance trips caused by OSSD self-test pulses.

EMC Design: The PCB layout employs a multi-layer ground plane strategy with dedicated analog and digital ground domains separated at a single star point. Ferrite bead filtering is applied at the backplane connector interface to suppress high-frequency common-mode noise injected from adjacent modules. The module meets IEC 61000-4-4 Level 4 (4 kV peak EFT) and IEC 61000-4-5 Level 3 (2 kV line-to-earth surge) without performance degradation, which is critical in switchgear rooms and motor control centers where high-energy switching transients are endemic.

Backplane Bus Protocol: Communication with the Quantum Safety CPU occurs over the proprietary Quantum backplane bus at a fixed cycle time synchronized to the CPU’s safety task period. The module presents its 32-channel input image as a contiguous block in the CPU’s I/O image table, with an associated diagnostic status word that encodes channel-level fault codes. The CPU’s safety task reads both the process data and the diagnostic word in a single atomic backplane transaction, ensuring that diagnostic information is never temporally decoupled from the process data it describes.

System Integration Benefits

• Deterministic Safety Task Synchronization: The module’s backplane communication is locked to the Quantum Safety CPU’s periodic safety task, guaranteeing that input data age never exceeds one safety task cycle — a prerequisite for meeting process safety time requirements in fast-acting safety functions such as turbine overspeed protection.
• Channel-Level Diagnostic Transparency: Each of the 32 channels reports its individual diagnostic status (open circuit, short circuit, cross-fault, discrepancy between dual-channel pair) as a distinct bit in the diagnostic status word, enabling the safety program to implement channel-specific fault responses rather than module-level safe-state transitions.
• Dual-Channel Discrepancy Monitoring: When configured in 1oo2 dual-channel mode, the module monitors the time discrepancy between the two channels of each safety pair. A configurable discrepancy time window (typically 100 ms to 3 s) allows the safety program to distinguish between a genuine simultaneous actuation and a single-channel fault, reducing nuisance shutdowns in high-availability processes.
• Hot-Swap Module Replacement: In Quantum redundant rack configurations, the 140SDI95300S supports online module replacement without de-energizing the rack. The replacement module performs an automatic self-test sequence and re-synchronizes with the CPU’s I/O image within three safety task cycles, minimizing the window during which the safety function operates with reduced redundancy.
• Unity Pro / Control Expert Safety Programming Integration: The module is fully supported by Schneider Electric’s Control Expert (formerly Unity Pro) safety programming environment, including pre-certified function blocks for dual-channel input processing, discrepancy monitoring, and manual reset logic. These certified blocks reduce the application-level safety validation burden.
• Proof Test Support via Diagnostic Forcing: Control Expert provides a diagnostic forcing capability that allows maintenance engineers to inject simulated fault conditions into the module’s diagnostic logic during scheduled proof tests, verifying the safety function’s response without physically disconnecting field wiring — reducing proof test duration and associated process downtime.
• Seamless Quantum Safety Architecture Scalability: The 140SDI95300S can be deployed in any slot of a Quantum 140-series rack alongside standard I/O modules, safety output modules (140SDO95300S), and communication modules, allowing incremental safety system expansion without rack redesign.
• IEC 61511 Process Industry Compliance: The module’s SIL 2/3 certification and associated safety manual provide the documented evidence required for IEC 61511 safety instrumented system (SIS) design validation, including PFDAVG calculations, architectural constraints verification, and systematic capability documentation.

Quality Assurance & Global Logistics

Every 140SDI95300S unit dispatched from our Xiamen, China facility is sourced directly from authorized Schneider Electric distribution channels or verified surplus stock with full traceability. Each unit undergoes a structured pre-shipment inspection protocol: housing and connector integrity check, label and revision marking verification against Schneider Electric’s official catalog revision history, and ESD-safe handling throughout the entire receiving, storage, and packing process. Units are stored in a climate-controlled warehouse maintained at 18–25 °C and 40–60% RH to preserve long-term module reliability.

Packaging uses anti-static foam-lined boxes with desiccant packs for moisture control during international transit. Export documentation — including commercial invoice, packing list, certificate of origin, and ECCN classification — is prepared in compliance with Chinese customs regulations and the import requirements of the destination country. We have established freight partnerships with DHL Express, FedEx International Priority, and UPS Worldwide Express, with typical transit times of 3–5 business days to Europe and North America and 2–4 business days to Southeast Asia. For urgent requirements, same-day dispatch is available for orders confirmed before 14:00 CST. All shipments are fully insured and tracked end-to-end.
