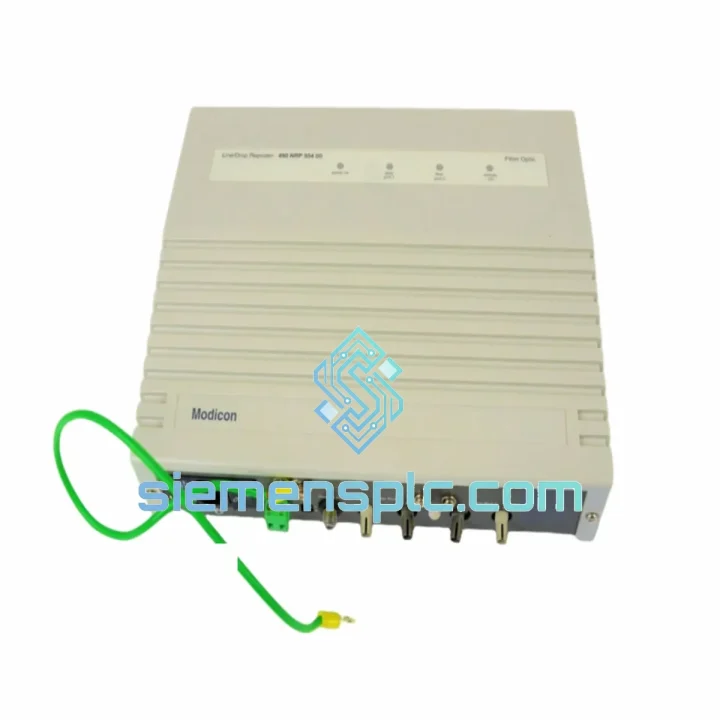

Schneider Electric 490NRP25300 Fiber Optic Repeater – Modicon Quantum

Schneider Electric 490NRP25300 — Fiber Optic Repeater for Modicon Quantum Remote I/O Networks

The 490NRP25300 occupies a structurally critical position in the Modicon Quantum distributed I/O architecture. Its function is not passive signal relay — it performs active electro-optical (E/O) and opto-electrical (O/E) conversion at each network boundary, regenerating the RIO data frame with full amplitude and timing fidelity before forwarding it across the fiber segment. In installations where copper coaxial RIO cabling reaches its physical limits — typically 300 m per segment under IEC 61158 constraints — or where electromagnetic interference from variable-frequency drives, high-voltage switchgear, or arc furnaces renders copper transmission unreliable, the 490NRP25300 is the OEM-specified solution that restores deterministic communication without altering the Quantum CPU’s I/O scan cycle or programming model.

Unlike protocol gateways or media converters designed for generic Ethernet, the 490NRP25300 is purpose-built for the Modicon Quantum proprietary RIO bus. It operates transparently within the Quantum head-end controller’s polling cycle, introducing no additional latency beyond the fixed optical propagation delay of the fiber segment — approximately 5 µs per kilometer on 62.5/125 µm multimode fiber. This determinism is non-negotiable in process control loops where scan jitter directly affects PID stability and safety function response times.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 490NRP25300 implements a two-stage signal processing pipeline. On the electrical input side, the module accepts the Quantum RIO differential signal and passes it through a threshold comparator circuit that strips accumulated noise and reconstructs a clean digital edge. This front-end conditioning stage is essential in environments where cable runs share conduit with power wiring — the comparator’s hysteresis band is factory-calibrated to reject common-mode noise up to the levels specified in EN 61000-4-5 (surge immunity, 1 kV line-to-line, 2 kV line-to-earth).

The reconstructed digital signal drives an 820 nm LED transmitter. LED-based optical sources are selected over laser diodes for this application because they exhibit a wider emission cone angle, which is better matched to the numerical aperture of 62.5/125 µm multimode fiber and reduces sensitivity to connector alignment tolerances in field installations. The LED drive circuit incorporates automatic power control (APC) feedback to compensate for LED aging and temperature-induced output variation, maintaining a stable optical launch power across the full 0–60 °C operating range.

On the receive side, a PIN photodiode converts the incoming optical signal to a photocurrent. A transimpedance amplifier (TIA) converts this current to a voltage, followed by a limiting amplifier that restores the signal to full CMOS logic levels regardless of received optical power variations caused by fiber length, connector insertion loss, or splice attenuation. The output stage drives the downstream RIO copper segment with the same electrical characteristics as the Quantum head-end transmitter, ensuring the repeater is electrically transparent to all downstream RIO drop adapters.

The module’s power supply section uses a DC-DC converter with input filtering rated to EN 61000-4-4 (electrical fast transient, 2 kV) and EN 61000-4-2 (ESD, 4 kV contact / 8 kV air). The converter’s switching frequency is selected to avoid harmonics that fall within the RIO signal band, preventing self-generated interference from corrupting the data path. Ferrite bead filtering on both input and output rails provides additional high-frequency attenuation.

Status indication is provided by two LED indicators: one for optical link integrity (loss-of-light detection via received power threshold) and one for power status. The loss-of-light threshold is set at −3 dB below the minimum specified receiver sensitivity, providing early warning of fiber degradation before communication errors occur — a design choice that supports predictive maintenance rather than reactive fault response.

System Integration Benefits

• Zero-configuration deployment: The 490NRP25300 requires no parameter setting in the Quantum CPU’s I/O configuration. The Quantum head-end polls RIO drops through the repeater identically to a direct copper connection. No Unity Pro or Concept software changes are required.
• Galvanic isolation between network segments: The fiber medium provides complete electrical isolation between the upstream and downstream copper segments. Ground potential differences of several hundred volts — common between buildings or across large plant areas — cannot propagate through the optical link, eliminating ground loop-induced data corruption.
• Deterministic scan cycle preservation: The fixed optical propagation delay (≈5 µs/km) is constant and predictable, unlike copper networks where impedance mismatches and reflections introduce variable delay. The Quantum CPU’s RIO timeout parameters do not require adjustment for fiber segments within the 3 km range.
• EMI immunity in Class A and Class B industrial environments: Fiber optic cable is immune to radiated electromagnetic fields from VFDs, contactors, and high-current bus bars. The 490NRP25300 eliminates the need for shielded cable, cable trays with grounding continuity, and ferrite suppression on copper RIO runs in high-EMI zones.
• Extended physical reach for distributed architectures: Process plants with geographically separated pump stations, compressor buildings, or remote valve manifolds can be connected to a central Quantum rack without intermediate PLCs or protocol converters, reducing hardware count and software complexity.
• Diagnostic transparency via LED status: The loss-of-light indicator provides a field-visible fault signal that maintenance technicians can identify without a laptop or programming tool. This reduces mean time to diagnose (MTTD) for fiber-related faults.
• Daisy-chain and point-to-point topology support: Multiple 490NRP25300 units can be cascaded in series to extend the RIO network across successive fiber spans, subject to the total propagation delay budget defined in Schneider Electric’s Quantum RIO planning guide (document 840USE10000). Point-to-point configurations are equally supported.
• Compatibility with existing Quantum RIO infrastructure: The module integrates directly with existing Quantum drop adapters (490NRP254xx series), head-end coaxial adapters, and all Quantum CPUs supporting the RIO bus. No firmware upgrade to the CPU is required.
